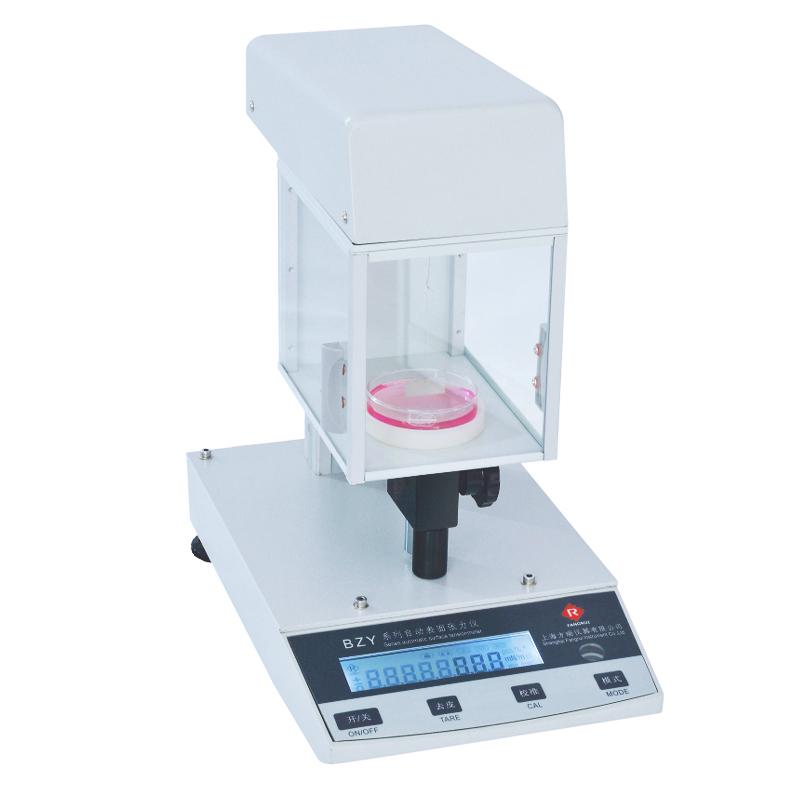

FANGRUI BZY-202 Surface Tensiometer manual lifting platform, platinum ring test mode

BZY-202

Surface Tensiometer

Introduction

FANGRUI BZY-202 Surface Tensiometer adopts a high-performance weighing sensor based on the principle of electromagnetic force balance, with accurate measurement and excellent repeatability. Platinum plate method and platinum ring method are used together. Except that the lifting platform is manually operated, the others are the same as the QBZY series automatic surface/interface tensiometer, so it has a very high cost performance.

main feature

1. Platinum plate or platinum ring test principle, simple and convenient operation;

2. Automatic digital measurement reduces human error;

3. Full-scale zero reset: one-key zero reset, complete in an instant, zero zero drift;

4. Full-scale automatic calibration: accurate and reliable data, excellent repeatability;

5. When the platinum plate is tested, the displayed value is the surface/interfacial tension value of the sample, no need to calculate again; when the platinum ring is tested, it has a peak hold function, which needs to be calculated by Excel or automatically converted to the surface/interfacial tension by data processing software value;

6. The instrument has a compact structure and works independently without any additional equipment (such as an external computer, etc.);

7. It can measure the change of the surface tension of the sample due to different time (especially when there are surfactants or volatile substances, limited to platinum plate test mode);

8. Automatically measure medium and high viscosity liquid samples and get accurate balance results (limited to platinum plate test mode);

9. It can measure the interfacial tension between immiscible liquids such as: oil/water interface;

10. It can completely replace the traditional mechanical Surface Tensiometer;

11. BZY-202 Surface Tension Meter is similar to QBZY series in terms of main structure and Specifications except the manual control of the lifting of the sample platform. It has high-quality design, economical price, and high cost performance.

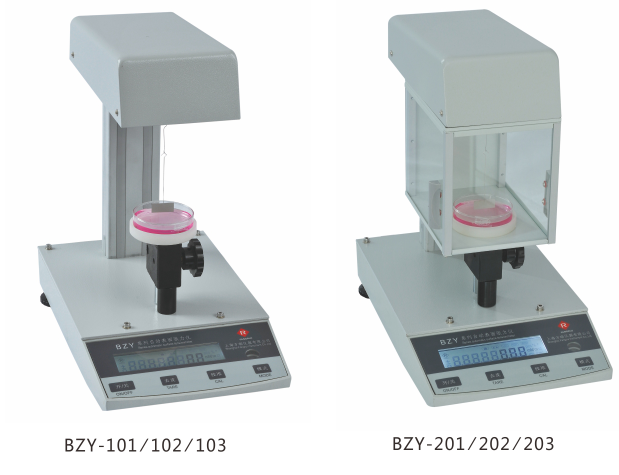

BZY series selection

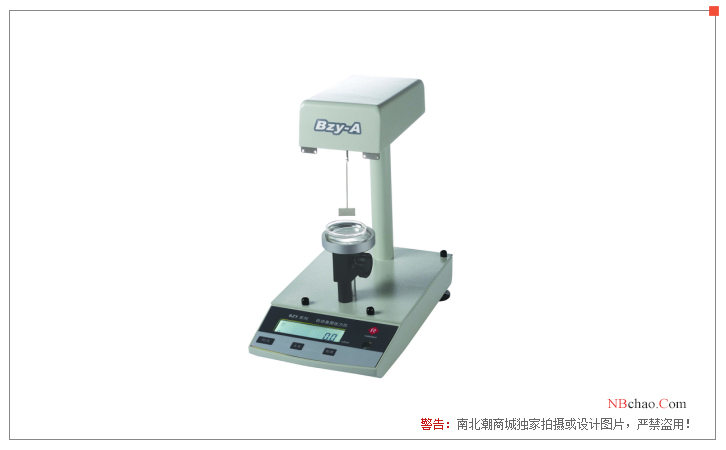

Pictures

Packing list：Host x1, platinum sheet x1, forceps x1, calibrate block x1, extension hook x1, Glass culture dish x2, tray x1, alcoholburner x1, power cord x1, manual, certificate of conformity, warranty card x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
