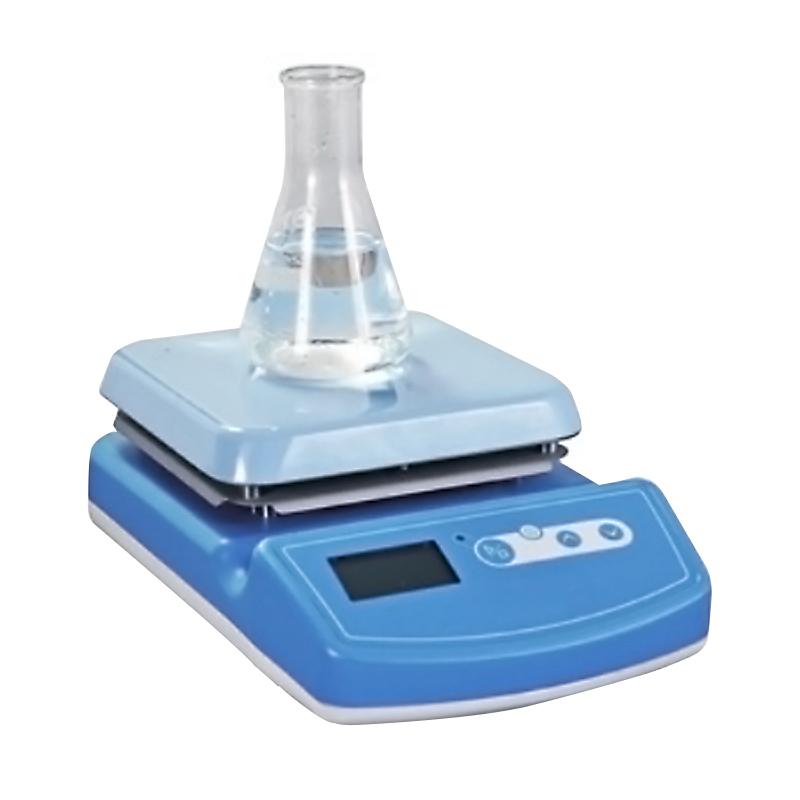

YIHENG IT-09C15 Magnetic Stirrer 20L

IT-09C15

Magnetic Stirrer

Max. stirring Capacity 20L, stirring speed 200~1800rpm, Input Power 50w, working disc size 180 * 180mm

Introduction

Yiheng IT-09C15 magnetic stirrer is a non-heating magnetic stirrer with a maximum stirring capacity of 20 liters and an input power of 50w. IT-09C15 magnetic stirrer adopts liquid crystal display, easy to operate, has microcomputer control technology, and is more intelligent. IT-09C15 magnetic stirrer can be used in biology, medicine, chemistry and other fields.

Product principle

The IT-09C15 magnetic stirrer is driven by a micro-motor to rotate a high-temperature-resistant powerful magnet to generate a rotating magnetic field to drive the stirring bar in the container to rotate, so as to stir, mix or assist the heating of the liquid in the container, so that the solution can be fully mixed at the set temperature .

Features and advantages

● The aluminum alloy die-casting shell has the characteristics of high temperature resistance, corrosion resistance and easy cleaning.

● Equipped with microcomputer control technology, it ensures that the rotation speed remains constant when the stirring viscosity is constantly changing.

● Large output torque, suitable for stirring solutions with low viscosity and large volume or high viscosity and small volume. (Different models have different volumes)

● LCD, menu-style operation interface, parameters such as temperature, speed and countdown are displayed on one screen, which is easy to understand and easy to observe and operate.

● An anti-corrosion liquid guiding groove is designed on the top of the control panel, even if the liquid overflows during the stirring process, it will not cause damage to the electronic components in the agitator.

● The table is made of die-casting aluminum alloy material, and the exterior is sprayed with plastic enamel material, which not only has good heat conduction effect, but also has corrosion resistance. The smooth mixing table is easy to clean and free from pollutants.

Classification of mixers

1. Magnetic stirrer: IT-09C has no heating function.

2. Heating magnetic stirrer: IT-07B, IT-09B series heating table top temperature can reach 450℃.

3. Constant temperature magnetic stirrer: IT-07A, IT-09A series external temperature measuring sensors can directly measure and control the temperature of the liquid in the container, and the temperature control is accurate and reliable.

Pictures

Packing list：host x1, power cord x1, outer thermostat x1, bracket rod x1, connecting rod x1, adjusting rod x1, locking screw x2, extension rod x1, bolt x1, stirrer x1, fuse x2, instruction manual x1, warranty x1, warranty card x1, packing list x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
