FANGRUI instrument SNB-1A Digital Rotational Viscometer viscosity range 10~200,000 cp

The FANGRUI instrument SNB-1A Digital Rotational Viscometer is a relatively simple Rotational Viscometer of the SNB series, providing four rotor options. The sample dosage of the SNB-1A Digital Rotational Viscometer is 15~ 25ml.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

FangRui SNB-1A Digital ViscometerSPEC

FangRui SNB-1A Digital ViscometerDetails

FangRui SNB-1A Digital ViscometerPacking list

SKU
NB008791
Display
Small LCD display
Measurement range
10~200000mPa·s
Rotor specification
21#、 27#、28#、29#
Rotor speed
0.5/1/2/5/10/20/50rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power supply Voltage
110~230V 50Hz/60Hz
Interface
R232C Communication interface one, temperature sensor interface one, power jack one
Dimensions
300*300*450mm
Weight
5kg
Capacity
15~25ml
SNB-1A
Digital Viscometer

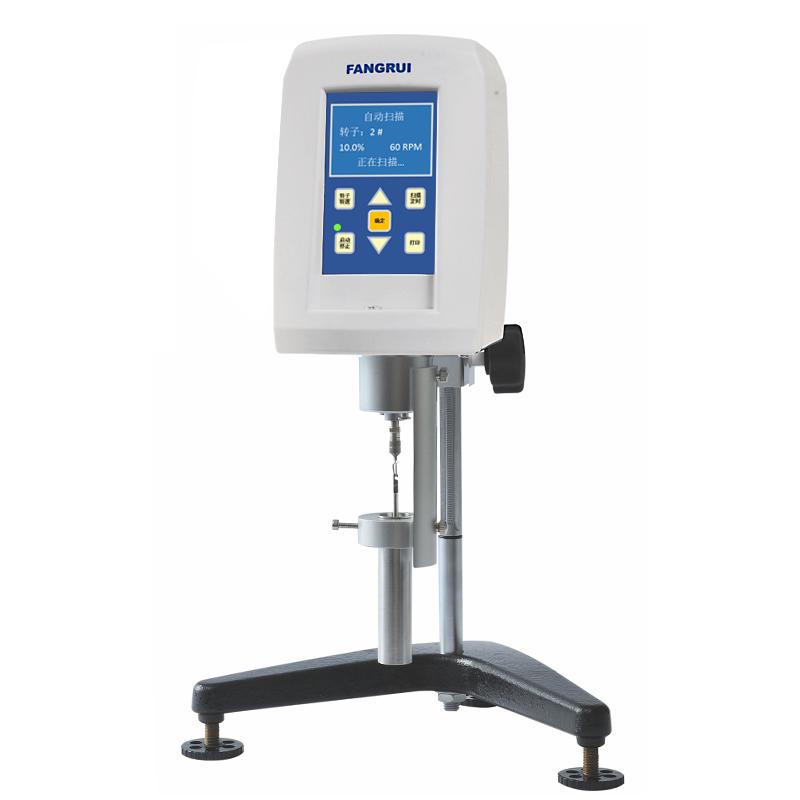

FANGRUI instrument SNB-1A Digital Rotational Viscometer viscosity range 10~200,000 cp Picture

Introduction

Fangrui Instrument SNB-1A digital display Rotational Viscometer adopts the new international microcomputer drive technology, imported stepper motor, LCD backlight display, program setting, automatic control, with stable speed, good accuracy, easy operation, error alarm and other practical functions; Information such as viscosity, rotational speed, rotor number, percent specific torque, and the temperature of the liquid to be measured is displayed directly on the screen. The instrument is all measured and corrected by standard silicone oil for the full scale and linearity of each block through the PC interface to ensure that the instrument has high sensitivity, high precision and high repeatability. The measured data is accurate, reliable and reproducible.

Features

(1) The viscosity value of the tested sample is directly displayed on the LCD screen, without manual calculation;

(2) Adopt the new international microcomputer drive technology, imported synchronous feed motor, LCD backlight display;

(3) Adopt professional switching power supply design, wide working power supply range, and the fluctuation of mains power does not affect the measurement accuracy;

(4) The whole machine is designed to be easy to operate;

(5) SNB-1A special sample adapter for small dose samples. Unlike the commonly used 1~4# rotor that requires a sample volume of 200~400ml, the sample adapter only needs a sample volume of 20ml.

⑥  The digital viscometer adopts a small screen English backlight liquid crystal display;

⑦   The instrument can provide a low-viscosity test option "No. 0 rotor" to accurately test the viscosity value in the range of 0.1~100MPa.s;

⑧   The temperature probe can be selected to measure the temperature of the tested sample in real time, and the temperature measurement accuracy is 0.1°C;

⑨   There is RS232 interface (or optional USB2.0 interface), which can output data and connect external devices;

In addition, data processing software is standard, which can record the change of sample viscosity with time, rotational speed or rotor (shear rate) and temperature in real time, which provides a good analytical method for understanding the viscosity and rheological properties of non-Newtonian liquids.

Applications

It is widely used in the production of oils, paints, coatings, slurries, textiles, foods, adhesives, cosmetics and other fluids and semi-fluids in scientific research units. With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been selected by customers in various industries.

Product display diagram

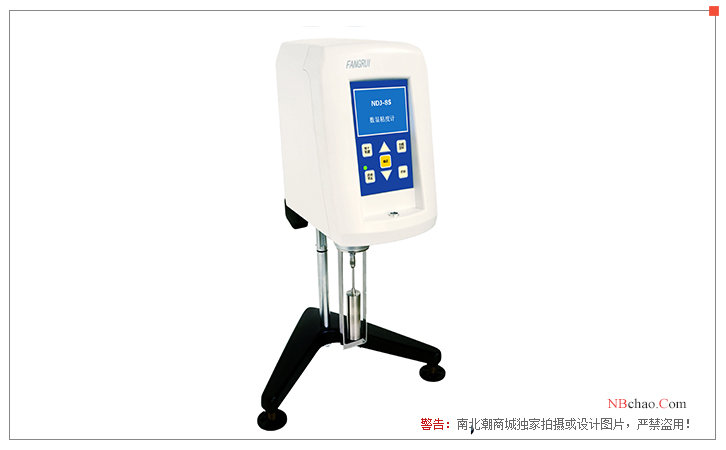

Fangrui instrument SNB-1A digital display Rotational Viscometer display diagram

FAQ
QCan you get a suitable temperature sensor?
A Can be equipped with RTD temperature sensor.
QCan Fangrui Instrument SNB-1A Digital Viscometer be tested with No. 0 rotor?
A Hello, no, this rotational viscometer cannot match the No. 0 rotor.
QWhat is the difference between SNB-1A and NDJ-8s digital viscosity meters?
A Hello, the measurement viscosity range of SNB-1A is 10~ 200,000 cp, which can be used to test a small amount of sample viscosity, while the range of NDJ-8S Viscometer is 1~ 2 million cp, and the measurement sample volume is 300~ 400ml, which is an ordinary model.
QDoes Fangrui SNB-1A viscosity meter have a large LCD display?
A Hello, this one uses LCD screen.
QIs this digital Viscometer compliant with GB/T18856.4?
A This digital Viscometer is suitable for GB/T18856.4. Please consult customer service for detailed application definition.
QCan you replace the container for the slurry with SNB-1A with the beaker instead?
A It cannot be replaced, only randomly provided test cartridges can be used.
QCan the SNB-1A Viscometer measure a change value, that is, the change value of viscosity over time?
A As long as the Viscometer does not stop the machine from testing, the machine is displaying viscosity data in real time, but this data is only the value at that time. It cannot be stored.
QI would like to inquire about the difference between the Viscometer of the NDJ series and the SNB series (SNB-1A and NDJ-8s).
A Hello, the difference between SNB and NDJ depends on the specific model. In some cities, there is no difference but the old and new models, and some have different functions. 1A belongs to the test of a small amount of samples, while 8s is an ordinary model, and the test requires 300-400ml samples. The other two have different ranges.
