FANGRUI instrument LVDV-1 Rotational Viscometer viscosity range 1~ 2 million cp

LVDV-1

Viscometer

Introduction

Fangrui Instrument LVDV-1 Rotational Viscometer adopts the new international microcomputer drive technology, imported stepper motor, LCD backlight display, program setting, automatic control, with stable speed, good accuracy, easy operation, automatic scanning, error alarm and other practical functions; The screen directly displays information such as viscosity, rotational speed, rotor number, percentage specific torque, the maximum viscosity that can be measured in the selected range, and the temperature of the liquid to be measured. The instrument is all measured and corrected by standard silicone oil for the full scale and linearity of each block through the PC interface to ensure that the instrument has high sensitivity, high precision and high repeatability. The measured data is accurate, reliable and reproducible.

Features

1) The viscometer with complete functions can be reasonably matched according to its own needs, which can meet the needs of conventional testing and research and development

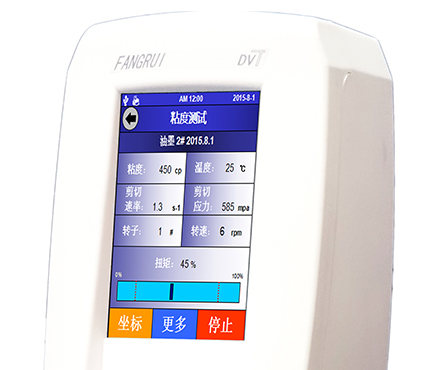

2) Large LCD screen LCD display with blue backlight function, intuitive and clear

Display information: rotor number, speed, range, viscosity, temperature, opening angle, % shear stress, shear rate

3) "Mode Selection" function key, the machine has a variety of built-in measurement modes

4）The "Rotor/Rate" function key, the selection of the rotor number, and the display of the shear rate value

5）The "Speed/Stress" function key, the selection of speed, and the display of shear stress value

6）  "Start, Stop" function keys to execute or terminate the current measurement program

7）The "Auto Scan" function key helps the user to select the appropriate rotor speed measurement for unknown samples

8）"OK" function key to confirm the currently selected information

Applications

LVDV-1 Rotational ViscometerIt is widely used in the production of oils, paints, coatings, slurries, textiles, foods, adhesives, cosmetics and other fluids and semi-fluids in scientific research units. With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been selected by customers in various industries.

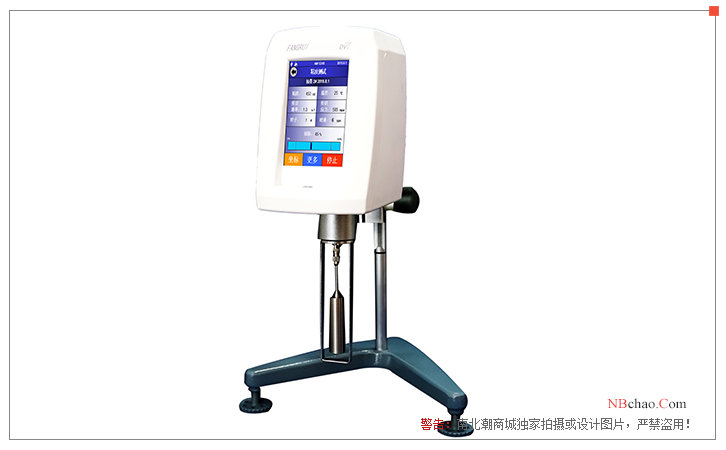

Product display diagram

Optional

●Ultra-low viscosity rotor (0# rotor)

●No. 1 rotor

● Small sample adapters

●Constant temperature circulating bath

● Temperature probe

● Standard silicone oil

● Glass jacketed cups

● Software

Packing list：Viscometer host x1, R2-R7 rotor x1 (set), triangular base x1, column x1, power adapter x1, instrument aluminum box gold foil x1, rotor protection frame x1, sample cylinder x1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
