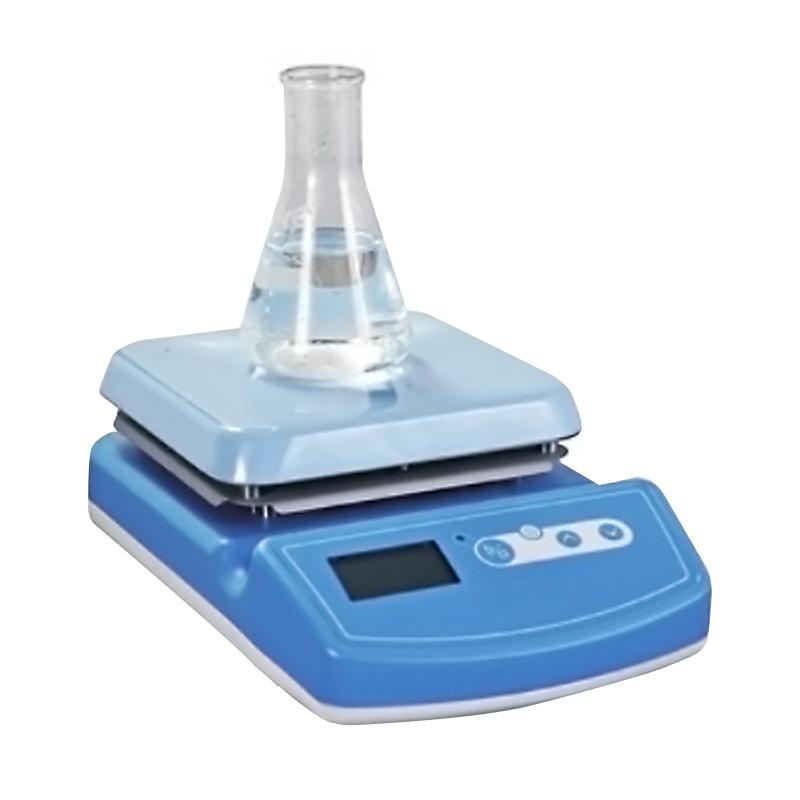

YIHENG IT-07B3 Magnetic Stirrer 450 ℃ heating 3L

IT-07B3

Magnetic Stirrer

Max. Stirring Capacity 3L, Stirring speed 200~1800rpm, Heating power 450W, Input Power 500w, Temperature range RT + 5~ 320 ℃, Temperature control accuracy +/- 15 ℃, Working plate size 130 * 130mm

Introduction

Yiheng IT-07B3 magnetic stirrer is a heating magnetic stirrer, which can measure the temperature of the working plate, and the maximum stirring capacity is 3 liters. The magnetic stirrer can be widely used in biology, medicine, chemistry and other fields. It adopts aluminum alloy die-casting shell, which is resistant to high temperature and corrosion and has a longer service life.

Product principle

IT-07B3 Magnetic Stirrer is driven by a micro-motor to generate a rotating magnetic field driven by a high-temperature-resistant powerful magnet to drive the stirring bar in the container to rotate, so as to stir, mix or auxiliary heat the liquid in the container, so that the solution can be fully mixed at the set temperature .

model selection

Magnetic stirrers are divided into three types: constant temperature magnetic stirrer, heating magnetic stirrer, and magnetic stirrer, among which IT-07B3 belongs to heating magnetic stirrer.

1. IT-07A, IT-09A series external temperature measuring sensors can directly measure and control the temperature of the liquid in the container, and the temperature control is accurate and reliable.

2. Heating magnetic stirrer: IT-07B, IT-09B series heating table top temperature can reach 450℃.

3. Magnetic stirrer: IT-09C has no heating function.

Features

● LCD, menu-style operation interface, parameters such as temperature, speed and countdown are displayed on one screen, which is easy to understand and easy to observe and operate.

● Equipped with microcomputer control technology, it ensures that the rotation speed remains constant when the stirring viscosity is constantly changing.

● The aluminum alloy die-casting shell has the characteristics of high temperature resistance, corrosion resistance and easy cleaning.

● The table is made of die-casting aluminum alloy material, and the exterior is sprayed with plastic enamel material, which not only has good heat conduction effect, but also has corrosion resistance. The smooth mixing table is easy to clean and free from pollutants.

● Large output torque, suitable for stirring solutions with low viscosity and large volume or high viscosity and small volume. (Different models have different volumes)

● An anti-corrosion liquid guiding groove is designed on the top of the control panel, even if the liquid overflows during the stirring process, it will not cause damage to the electronic components in the agitator.

Safety precautions

(1) Temperature deviation protection: 09A/B series will stop heating when the measured temperature exceeds a certain value of the set temperature (10°C-30°C).

(2) Anti-scalding warning light: When the temperature of the 09A/B series work plate exceeds 55°C, the indicator light will flash to remind the user that the work plate cannot be touched.

(3) Special protection: all-round anti-scalding cover (optional).

Pictures

Packing list：host x1, power cord x1, outer thermostat x1, bracket rod x1, connecting rod x1, adjusting rod x1, locking screw x2, extension rod x1, bolt x1, stirrer x1, fuse x2, instruction manual x1, warranty x1, warranty card x1, packing list x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
