Netherlands TQC Powder TAG LD5850 Powder coating thickness analyzer wet-film/Dry-Film thickness measurement
SE
TQC sheen LD5850 Powder coating thickness analyzerSPEC
TQC sheen LD5850 Powder coating thickness analyzerDetails
TQC sheen LD5850 Powder coating thickness analyzerPacking list
- SKU
- NB008837
- measurement range
- 0~300μm
- accuracy
- ±3%
- resolution
- ±1%
- Distance measurement
- About 35mm/1.38inch
- Measurement point
- 2x2mm/0.08x0.08inch
- measurement speed
- 1024~2048m/s
- Sensor mass
- 225g
- instrument size
- 80 x 180 x 43 mm / 3.15 x 7.1 x 1.7inch
- instrument weight
- 700 g / 24.7 oz
- interface
- USB
- Battery type
- 4 lithium batteries AA 3.7 V
- battery life
- Can be used continuously for 10 hours
- substrate
- All Metals and MDF (Medium Density Fiberboard)
- relevant humidity
- Maximum 80%, maximum 50% at 32 ° C
- Storage temperature
- 0~55℃
Introduction

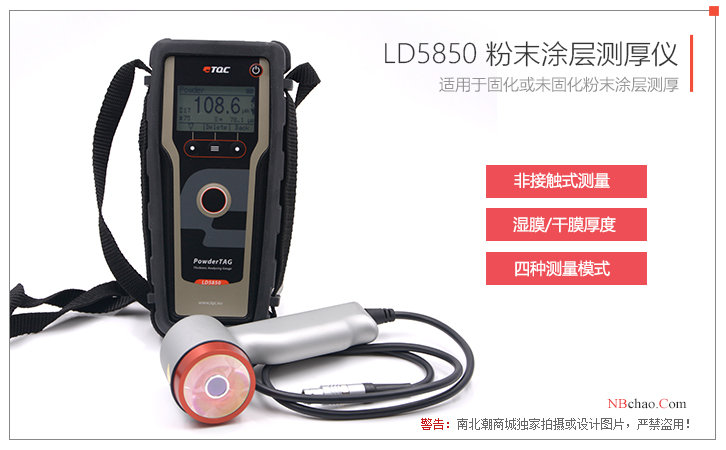

TQC LD5850The powder coating thickness analyzer is a non-contact powder coating Thickness Gauge that uses photothermal method to measure the thickness of thin films without contact. According to DIN EN 15042-2. This lightweight and robust instrument provides fast and accurate measurement of powder coatings on metal and MDF substratesCuringThe thickness of the front and back. The measuring system consists of a sensor and a display, which are connected by a single cable.
Features

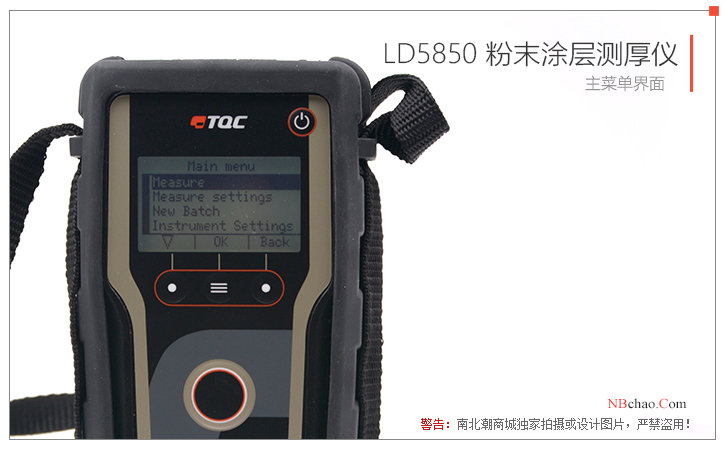

1. Easy to operate. Simply point the probe at a suitable distance to the surface of the measuring item and press the "Measure" button.
2. It can measure samples of any shape and size, including samples with borders and edges.
3. The measurement range is large, and the measured value is very accurate.
4. It can measure any metal substrate such as steel, aluminum and non-metallic substrate such as medium density fiberboard.
5. Applicable to:Cured or uncuredPowder coating.

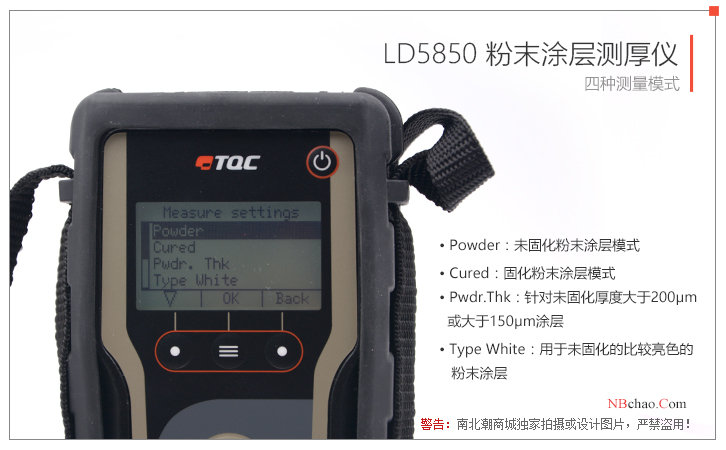

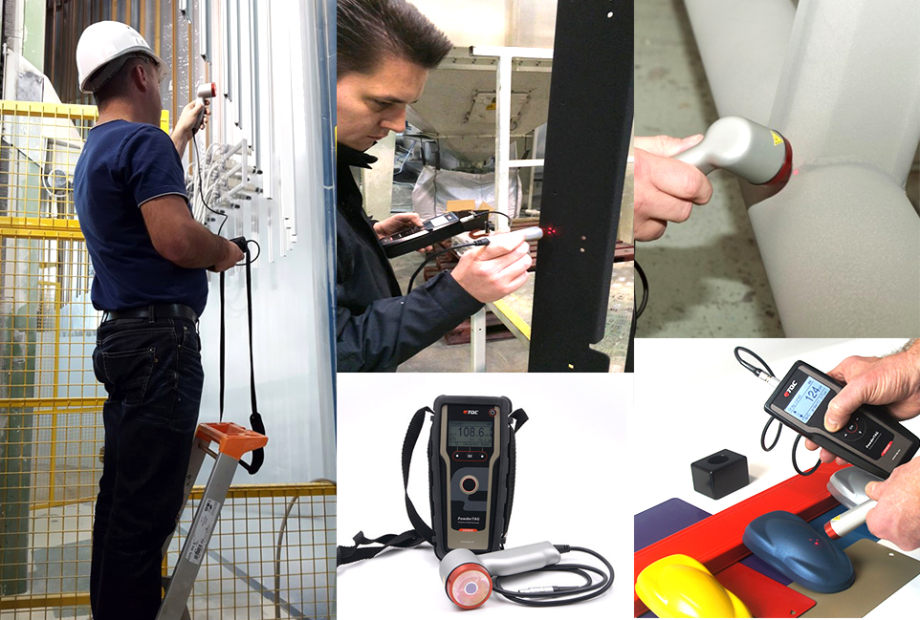

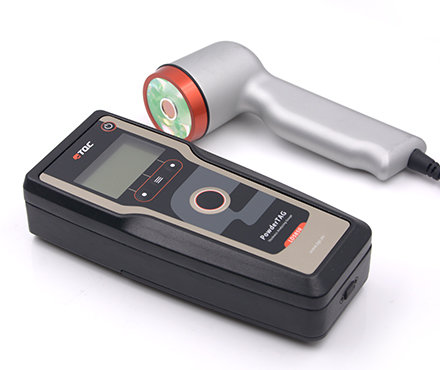

Product display diagram
Parameters
| Model | LD5850 |
| Measuring range | 0~300μm |
| Precision | ±3% |
| resolution | ±1% |
| Measure distances | Approximately 35mm/1.38inch |
| Measuring points | 2x2mm/0.08x0.08inch |
| Measure speed | 1024~2048m/s |
| Sensor quality | 225g |
| Instrument size | 80 x 180 x 43 mm / 3.15 x 7.1 x 1.7inch |
| Instrument weight | 700 g / 24.7 oz |

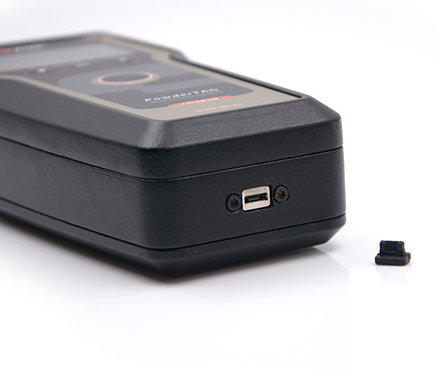

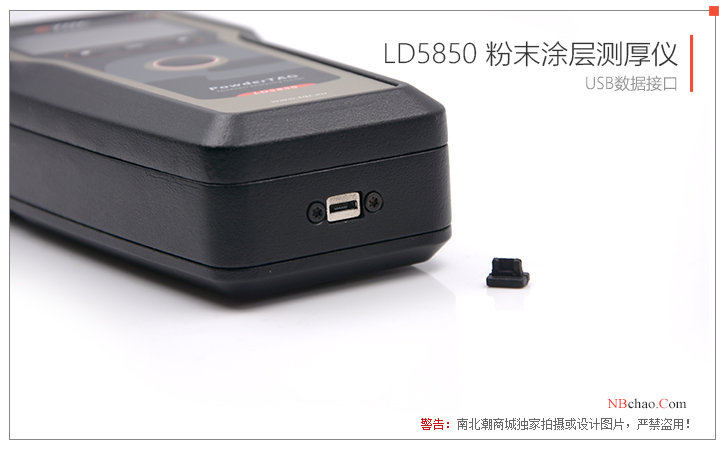

| interface | USB |
| Battery type | 4 lithium batteries AA 3.7 V |
| Battery life | It can be used continuously for 10 hours |
| substrates | All metal and MDF (Medium Density Fiberboard) |
| Associated humidity | 80% max, 50% max at 32°C |
| Storage temperature | 0~55℃ |
Applicable Standards
DIN EN 15042-2.

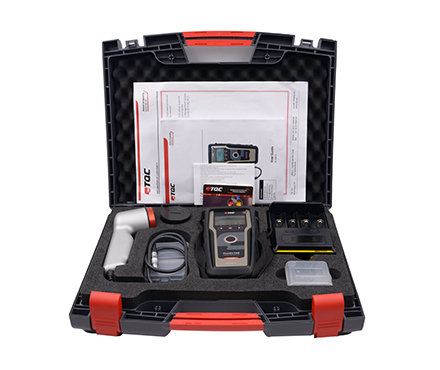

Instrument configuration

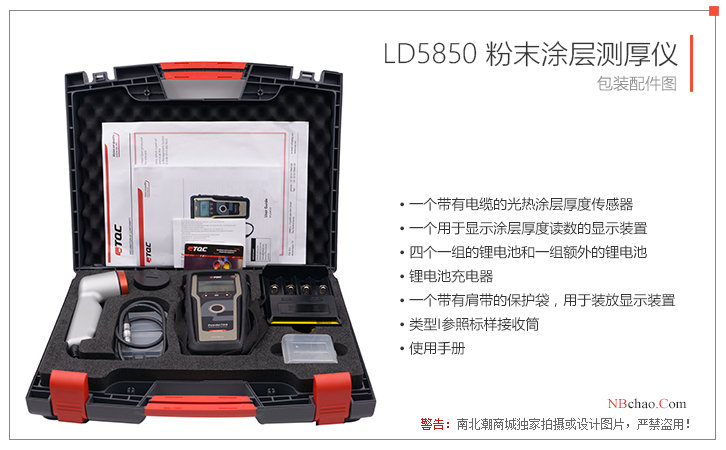

The powder coating thickness analyzer is housed in a sturdy shipping case. Includes:
• A photothermal coating thickness sensor with cable.

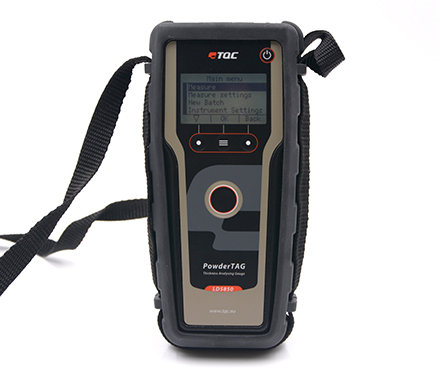

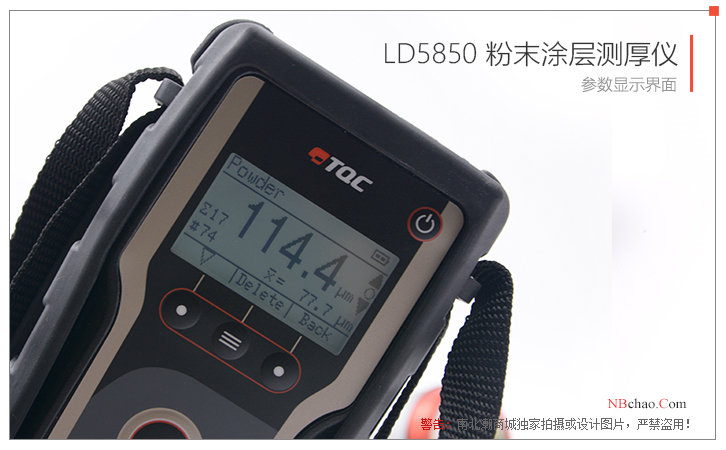

• A display device for coating thickness readings.

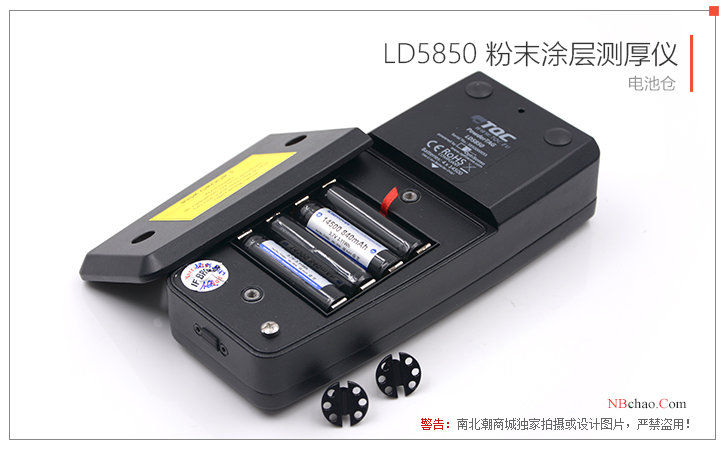

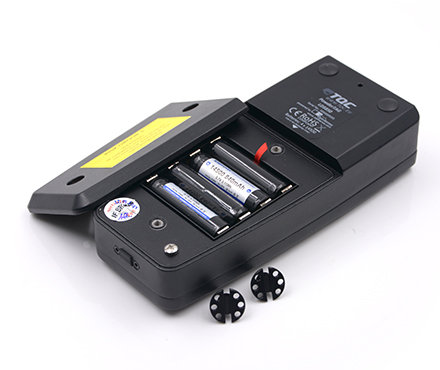

• Lithium batteries in groups of four and one set of additional lithium batteries
• Lithium battery charger.
• A protective pouch with a shoulder strap for the display.
• Type I refers to the standard receiver.
• Manual.
