NIRUN LDV-E Digital Viscometer Viscosity Range 10~2000000MPa · s

SE
Digital display, Measurement range 10~2000000mPa · s, Rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.3~ 100rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S.
$1975.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

NiRun LDV-E Digital ViscometerSPEC

NiRun LDV-E Digital ViscometerDetails

NiRun LDV-E Digital ViscometerPacking list

SKU
NB008847
Display
digital display
Measuring range
10~2000000mPa·s
Rotor Specifications
1 #, 2 #, 3 #, 4 #(0 #optional)
Rotor speed
0.3~100rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
AC100-240V，50Hz/60Hz，DC17V1.2A
Data Interface
RS232
Weight
7kg
Encasement material
Five-layer cardboard
Collection method
continuous acquisition
Capacity
300~600ml
Capacity
400 or 800ml (self-provided)
Lifting system
Metal lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
microcomputer
software system
Data collection, programming, analysis
temperature probe
PT100 temperature probe
Encasement
aluminum alloy
Speed control method
CVT
LDV-E
Digital Viscometer
Digital display, Measurement range 10~2000000mPa · s, Rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.3~ 100rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S.

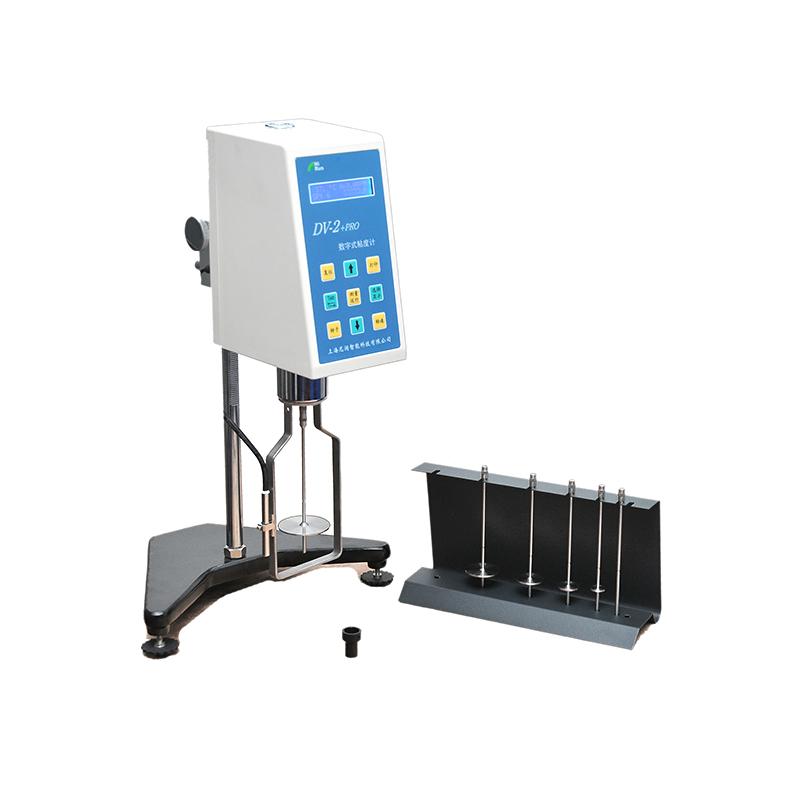

NIRUN LDV-E Digital Viscometer Viscosity Range 10~2000000MPa · s Picture

technical features

Optional DV data acquisition and program control software can measure rheological properties

Show Shear Rate and Shear Stress

Stepper motor direct drive, no gear, accurate speed

LCD liquid crystal with blue backlight, displaying a large amount of information

It can display the maximum viscosity value that the rotor can measure at the current speed.

Viscosity value shows continuous change

There is an alarm sound prompt when the measurement range is exceeded

Standard RTD temperature probe

Standard two-way RS232 or 485 interface

Computer full range linear calibration

AC power adapter 100V-240V, good anti-interference

Applications

LDV-E digital viscometer is widely used in ink, glue , latex , solvent-based adhesives , polymer solutions , petroleum , paint coatings , solvents, cosmetics , milk products , medicines , fruit juices, etc.

Pictures

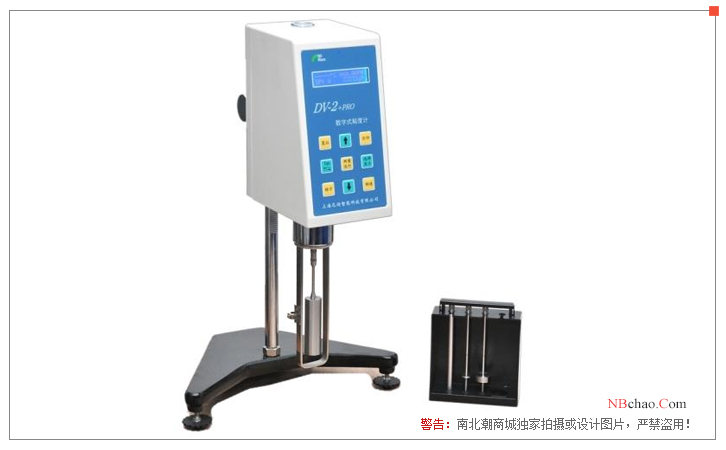

NIRUN LDV-E digital viscometer display

optional accessories

DV data acquisition and program-controlled analysis software

Special viscosity measurement constant temperature Water Tank

Ultra Low Viscosity Adapter

Small Sample Adapter

standard solution

micro printer

Outer circulation glass beaker

Comparison of main parameters of NIRUN DV series viscometer

modelDV-1+PRODV-2+PRODV-3+PRODV-E
Measuring range (mPa·s)

LDV: 1-2 million

RDV: 1-13 million

HADV: 2-26 million

HBDV: 8-104 million

LDV: 1-6 million

RDV: 1-40 million

HADV: 2-80 million

HBDV: 8-320 million

LDV: 1-6 million

RDV: 20-40 million

HADV: 1-80 million

HBDV: 5-320 million

LDV: 1-2 million

RDV: 1-13 million

HADV: 2-26 million

HBDV: 8-104 million

Rotor speed (rev/min)0.3-1000.1-2000.1-2500.3-100
Number of rotors

LDV with (1, 2, 3, 4 4 kinds of rotors) (0 rotor is optional )

RDV, HADV, HBDV (6 types of rotors No. 2, 3, 4, 5, 6, 7) (Rotors No. 0 and No. 1 are optional accessories)

measurement accuracy±1.0% (full scale)
repeatability0.5%
FAQ
QIs this digital Viscometer compliant with ISO 12634?
A This digital Viscometer is suitable for ISO12634, please consult customer service for detailed application definition
QIs there any essential difference between the LDV series and the RDV series digital swirl/spin viscosity meter?
A Hello, the main difference between LDV and RDV series is the viscosity range. Generally, the measurement viscosity range of RDV will be higher than that of LDV. LDV is generally suitable for low viscosity, and RDV is generally suitable for medium viscosity test samples.
QWhat is the Rotor velocity range of the LDV-E Viscometer? Is it stepless speed regulation or Miscellaneous speed regulation mode?
A Hello, the speed range of this LDV-E digital Viscometer is 0.3~ 100.0rpm, which is stepless speed regulation.
