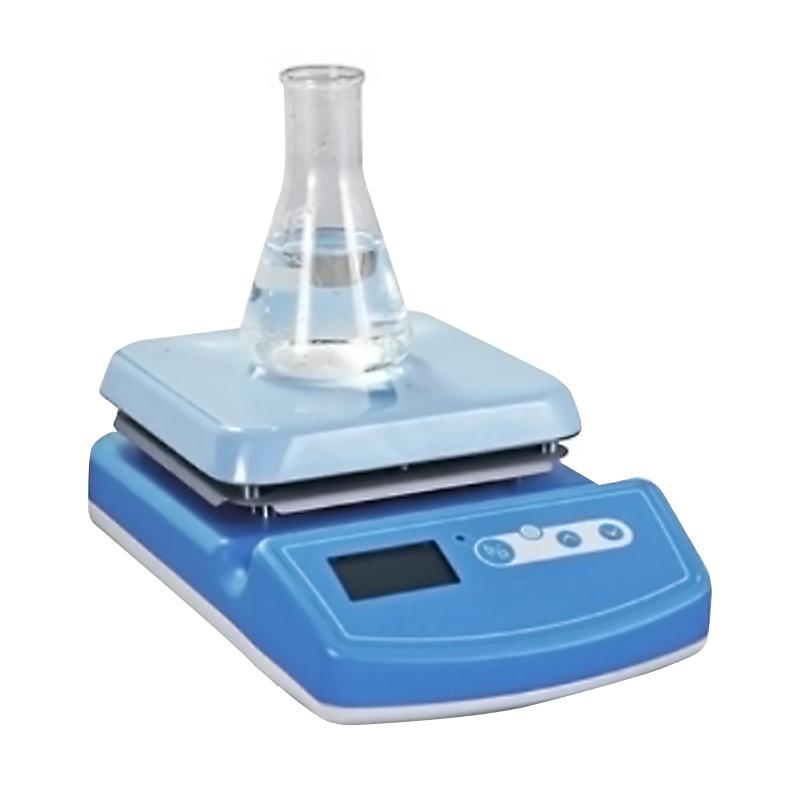

YIHENG IT-09B15 Electromagnetic Stirrer 450 ℃ heating 15L

IT-09B15

Magnetic Stirrer

Max. Stirring Capacity 15L, Stirring speed 200~1800rpm, Heating power 750W, Input Power 800w, Temperature range RT + 5~ 450 ℃, Temperature control accuracy +/- 15 ℃, Working plate size 180 * 180mm

Introduction

Yiheng IT-09B15 electromagnetic stirrer can measure the temperature of the working plate, the maximum temperature can reach 450℃, and the maximum stirring capacity is 15 liters. The IT-09B15 electromagnetic stirrer is a heating electromagnetic stirrer. When the measured temperature exceeds a certain temperature value, it will automatically stop heating. You can also choose an all-round anti-scalding cover (optional accessories need to be purchased separately) for safety protection and prevent burns. Magnetic stirrer can be widely used in biology, medicine, chemistry and other fields with high safety.

Principle

The IT-09B15 electromagnetic stirrer is driven by a micro-motor to rotate a high-temperature-resistant powerful magnet to generate a rotating magnetic field to drive the stirring bar in the container to rotate, so as to stir, mix or assist the liquid in the container, so that the solution can be fully mixed at the set temperature .

Features and advantages

● LCD, menu-style operation interface, parameters such as temperature, speed and countdown are displayed on one screen, which is easy to understand and easy to observe and operate.

● Equipped with microcomputer control technology, it ensures that the rotation speed remains constant when the stirring viscosity is constantly changing.

● The aluminum alloy die-casting shell has the characteristics of high temperature resistance, corrosion resistance and easy cleaning.

● The table is made of die-casting aluminum alloy material, and the exterior is sprayed with plastic enamel material, which not only has good heat conduction effect, but also has corrosion resistance. The smooth mixing table is easy to clean and free from pollutants.

● Large output torque, suitable for stirring solutions with low viscosity and large volume or high viscosity and small volume. (Different models have different volumes)

● An anti-corrosion liquid guiding groove is designed on the top of the control panel, even if the liquid overflows during the stirring process, it will not cause damage to the electronic components in the agitator.

model selection

● Constant temperature magnetic stirrer: IT-07A, IT-09A series external temperature sensor, can directly measure and control the temperature of the liquid in the container, and the temperature control is accurate and reliable.

● Heating magnetic stirrer: IT-07B, IT-09B series heating table top temperature can reach 450℃.

● Magnetic stirrer: IT-09C has no heating function.

safety protection

The IT-09B15 electromagnetic stirrer has safety protection through the following three aspects to prevent the heating of the magnetic stirrer from causing burns due to the elevated temperature:

1. Temperature deviation protection: 09A/B series will stop heating when the measured temperature exceeds a certain value of the set temperature (10°C-30°C).

2. Anti-scalding warning light: When the temperature of the 09A/B series work plate exceeds 55°C, the indicator light will flash to remind the user that the work plate cannot be touched.

3. Special protection: all-round anti-scalding cover (optional accessory).

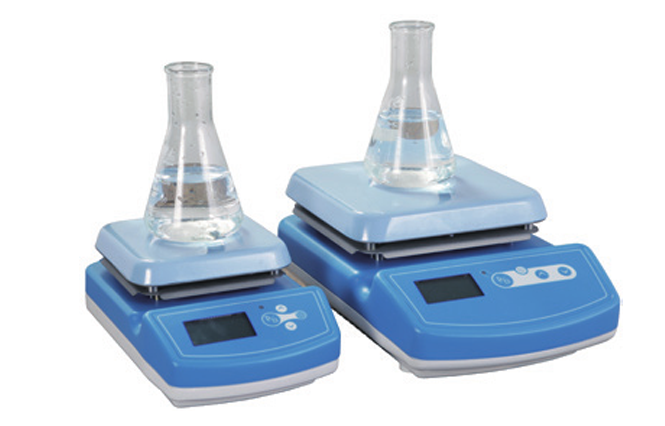

Pictures

Packing list：host x1, power cord x1, outer thermostat x1, bracket rod x1, connecting rod x1, adjusting rod x1, locking screw x2, extension rod x1, bolt x1, stirrer x1, fuse x2, instruction manual x1, warranty x1, warranty card x1, packing list x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
