NIRUN LSNB-AI Digital Viscometer Viscosity range 10~6000000MPa · s

SE
Digital display, Measurement range 10~6000000mPa · s, Rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.1~ 200rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S.
$1849.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

NiRun LSNB-AI Digital ViscometerSPEC

NiRun LSNB-AI Digital ViscometerDetails

NiRun LSNB-AI Digital ViscometerPacking list

SKU
NB008851
Display mode
digital display
Measurement range
10~6000000mPa·s
Rotor specification
1 #, 2 #, 3 #, 4 #(0 #optional)
Rotor speed
0.1~200rpm
reproducibility
±0.2%F.S
Measurement Accuracy
±1%F.S
Power supply Voltage
AC100-240V，50Hz/60Hz，DC17V1.2A
Weight
7kg
Encasement material
Five-layer cardboard
collection method
continuous acquisition
Capacity
300~400ml
Capacity
400Ml (self-prepared)
Lifting system
PE lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
Microcomputer
software system
Data collection, mapping
temperature sensor
RID temperature sensor
Encasement
aluminum alloy
Rotation speed Control mode
CVT
LSNB-AI
Digital Viscometer
Digital display, Measurement range 10~6000000mPa · s, Rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.1~ 200rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S.

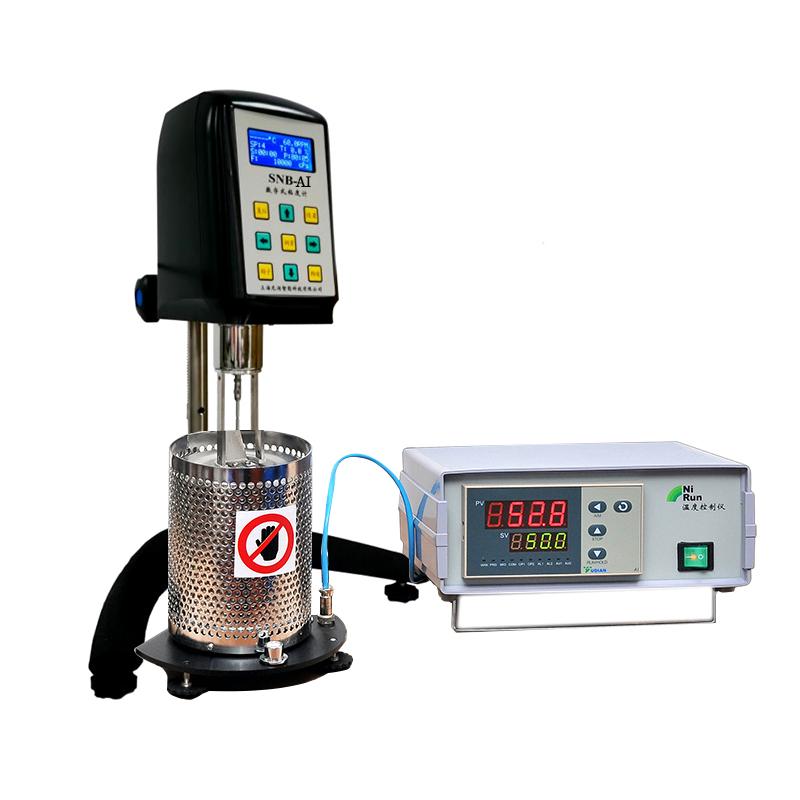

NIRUN LSNB-AI Digital Viscometer Viscosity range 10~6000000MPa · s Picture

technical features

  • Optional SNB data acquisition and drawing software

  • Stepper motor direct drive, no gear, accurate speed

  • LCD liquid crystal with blue backlight, displaying a large amount of information

  • It can display the maximum viscosity value that the rotor can measure at the current speed.

  • Measurement Timing Function

  • Viscosity value shows continuous change

  • There is an alarm sound prompt when the measurement range is exceeded

  • Standard RTD temperature probe

  • Computer full range linear calibration

  • AC power adapter 100V-240V, good anti-interference

Applications

LSNB-AI digital viscometer is widely used in ink, glue , latex , solvent-based adhesives , polymer solutions , petroleum , paint coatings , solvents, cosmetics , milk products , medicines , fruit juices, etc.

Pictures

NIRUN LSNB-AI digital viscometer display

optional accessories

SNB Data Acquisition and Graphing Software

Special viscosity measurement constant temperature Water Tank

Ultra Low Viscosity Adapter

Small Sample Adapter

standard solution

micro printer

Outer circulation glass beaker

FAQ
QHow many degrees can this Viscometer support heating samples?
A 250℃。
QMeet JJG1002 Digital Viscometer
A LSNB-AI Digital Viscometer, please refer to it.
QWhat rotor can the LSNB-AI digital display Viscometer be matched with?
A Hello, Nirun LSNB-AI can try four kinds of rotors 1/2/3/4, of which No. 0 rotor is an option.
QHow much can the sample capacity of Nirun be placed?
A Hello, the sample capacity of this LSNB-AI digital Viscometer is 300~ 400ml.
