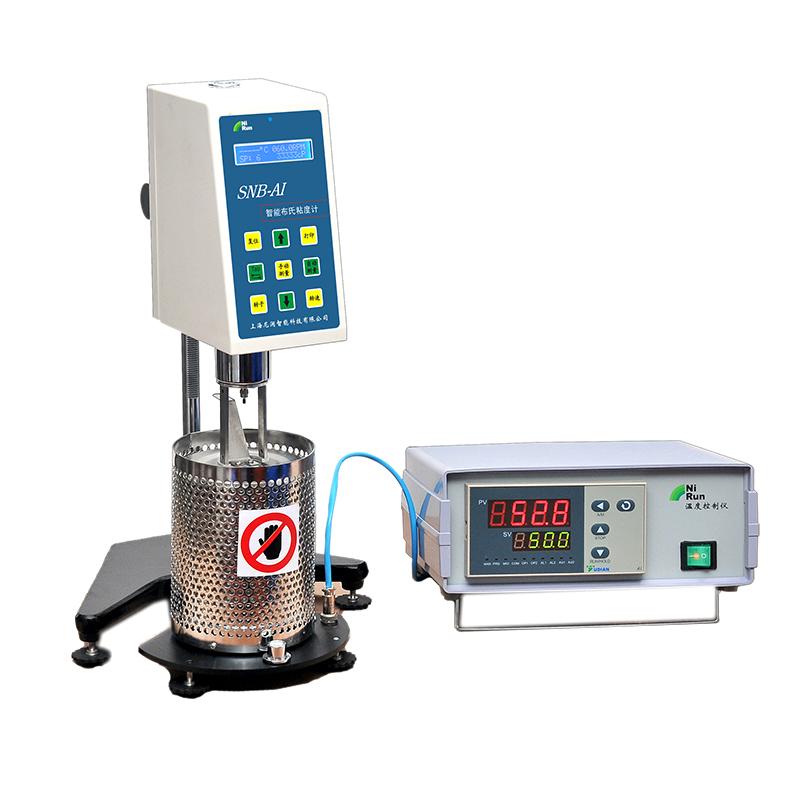

NIRUN SNB-AI + 250 degree heater, digital Viscometer 250 ℃

Nerun SNB-AI + 250 Degree Heater Digital Viscometer can use the heater to heat the temperature to 250 ℃, and the SNB-AI Viscosity Detector measurement Viscosity range is 5~ 1000000MPa · s.
Certificate
Contact
Details SPEC CAT
Similar products

NiRun SNB-AI + 250 degree heater Digital ViscometerSPEC

NiRun SNB-AI + 250 degree heater Digital ViscometerDetails

NiRun SNB-AI + 250 degree heater Digital ViscometerPacking list

SKU
NB008852
Display
digital display
Measuring range
5~1000000mPa·s
Rotor Specifications
21#、 27#、28#、29#
Rotor speed
0.1~200rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
AC100-240V，50Hz/60Hz，DC17V1.2A
Weight
7kg
Encasement material
Five-layer cardboard
Collection method
continuous acquisition
Capacity
300~400ml
Capacity
400Ml (self-prepared)
Lifting system
PE lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
microcomputer
software system
Data collection, mapping
temperature probe
RID temperature probe
Encasement
aluminum alloy
Speed control method
CVT
SNB-AI + 250 degree heater
Digital Viscometer
NIRUN SNB-AI + 250 degree heater, digital Viscometer 250 ℃ Picture

technical features

  • Intelligent measurement. Automatically adjust the speed to reduce the difficulty of use for beginners.

  • Small amount of sample

  • The sample chamber is insulated to reduce the heat loss of the sample

  • Temperature control with little fluctuation

  • The rotor rotates and plays the role of stirring

  • Optional SNB data acquisition software to record the viscosity-temperature curve throughout the process

  • Easy temperature control

Applications

SNB-AI digital viscometer is widely used in hot melt adhesive, asphalt, paraffin, high polymer .

Pictures

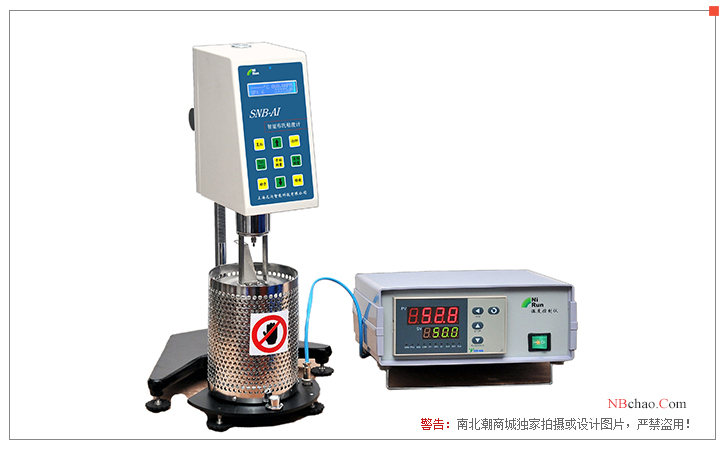

NIRUN SNB-AI+250 degree heater digital viscometer display

optional accessories

SNB Data Acquisition and Graphing Software

FAQ
QCan this measure the viscosity of the glue? Room temperature is solid, and 190 degrees is the operating temperature.
A Hello, it's OK.
QWhat rotor does Nirun SNB-AI + 250 High Temperature Viscometer match?
A Hello, this SNB-AI + 250 Viscometer comes standard with four rotors: No. 21, 27, 28, and 29.
QI want to do a test on the JJG1002 standard, is this digital Viscometer okay?
A Sure
QCan the SNB-AI Digital Viscometer be used to test paraffin wax in a factory?
A Hello, this one can test paraffin wax. SNB-AI + 250 Viscometer is suitable for hot melt adhesive, asphalt, paraffin wax, high polymer, etc.
