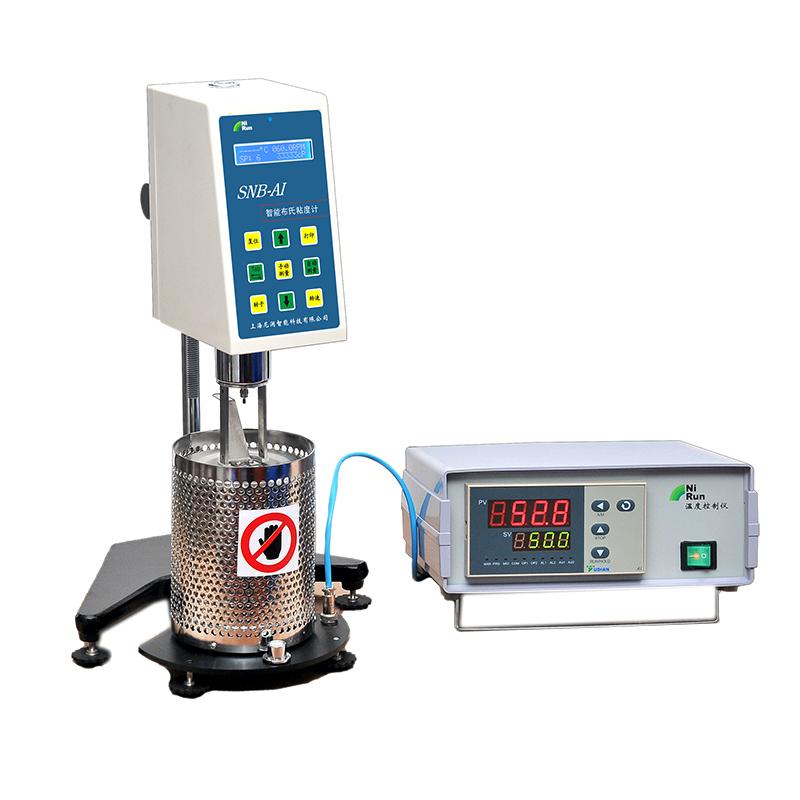

NIRUN SNB-AI + 500 degree heater, digital Viscometer 500 ℃

NIRUN SNB-AI + 500 Degree Heater Digital Viscometer is equipped with a heater that can heat up to 500 ℃. The Viscosity range of SNB-AI Digital Viscometer is 5~ 1 million mpa · s.
Certificate
Contact
Details SPEC CAT
Similar products

NiRun SNB-AI + 500 degree heater Digital ViscometerSPEC

NiRun SNB-AI + 500 degree heater Digital ViscometerDetails

NiRun SNB-AI + 500 degree heater Digital ViscometerPacking list

SKU
NB008853
Display
digital display
Measuring range
5~1000000mPa·s
Rotor Specifications
21#、 27#、28#、29#
Rotor speed
0.1~200rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
AC100-240V，50Hz/60Hz，DC17V1.2A
Weight
7kg
Furnace body temperature range
Room temperature~ 500 ℃
Encasement material
Five-layer cardboard
Collection method
continuous acquisition
Capacity
300~400ml
Capacity
400Ml (self-prepared)
Lifting system
PE lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
microcomputer
software system
Data collection, mapping
temperature probe
RID temperature probe
Encasement
aluminum alloy
Speed control method
CVT
SNB-AI + 500 degree heater
Digital Viscometer
NIRUN SNB-AI + 500 degree heater, digital Viscometer 500 ℃ Picture

technical features

  • Intelligent measurement. Automatically adjust the speed to reduce the difficulty of use for beginners.

  • Small amount of sample

  • The sample chamber is insulated to reduce the heat loss of the sample

  • Temperature control with little fluctuation

  • The rotor rotates and plays the role of stirring

  • Optional SNB data acquisition software to record the viscosity-temperature curve throughout the process

  • Easy temperature control

Applications

SNB-AI digital viscometer is widely used in hot melt adhesive, asphalt, paraffin, high polymer .

Pictures

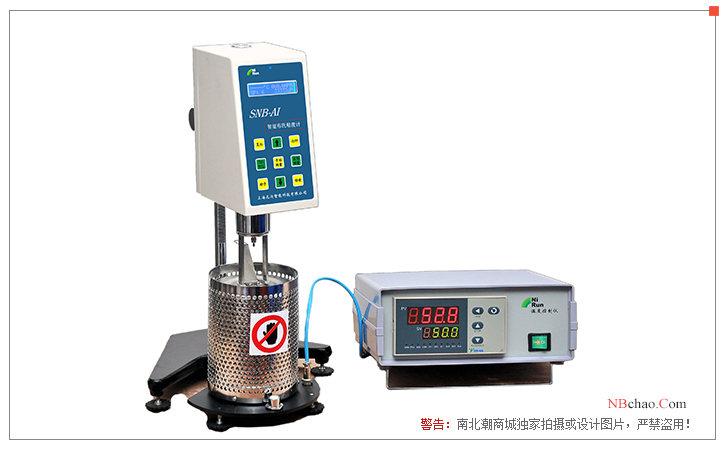

NIRUN SNB-AI+500 degree heater digital viscometer display

optional accessories

SNB Data Acquisition and Graphing Software

FAQ
QMaterials targeted at: polymer, polyimide, high temperature resistant polymer. What is the highest test temperature? I am afraid that high temperature resistant materials can be more than 500 degrees in the future.
A Yes, this one can measure room temperature to 500 degrees, and can also monitor the viscosity-temperature throughout the process with the software. Linear dispersion
QIs this high temperature Viscometer suitable for testing asphalt viscosity?
A Hello, yes, this Nirun Heating Digital Viscometer can test the viscosity of hot melt adhesive, asphalt, paraffin wax and other products.
QCan this Digital Viscometer be applied to JJG1002?
A OK
QDo you have a high temperature viscosity meter? It is better to reach 450 ° C
A Hello, yes, you can take a look at Nirun's SNB-AI + 500 degree digital Viscometer, which has a heating temperature of up to 500 ° C.
