Runjie RJ-40 Multifunctional Strength Tester, Concrete Strength Detection for Construction Engineering
SE
RJ-40
RunJie RJ-40 Multifunctional strength DetectorSPEC
RunJie RJ-40 Multifunctional strength DetectorDetails
RunJie RJ-40 Multifunctional strength DetectorPacking list
- SKU
- NB008921
- display mode
- Force value KN, strength Mpa adjustable
- Measuring range
- 0~40KN
- Cylinder stroke
- 10mm
- Measurement Accuracy
- 1%
- Peak hold
- Yes.
- data storage
- 500 articles
- Data viewing and LCD lighting
- Yes.
- Numerical correction
- 10 paragraph correction
- Power Supply
- High Capacity lithium battery
- Automatic shutdown
- Yes.
- Standards
- CEC CS69:94、JGJ110-97、JGJ126-2000
- Measurement mode
- Strength Mpa and force value KN
- data storage
- 500 pieces of data
Introduction

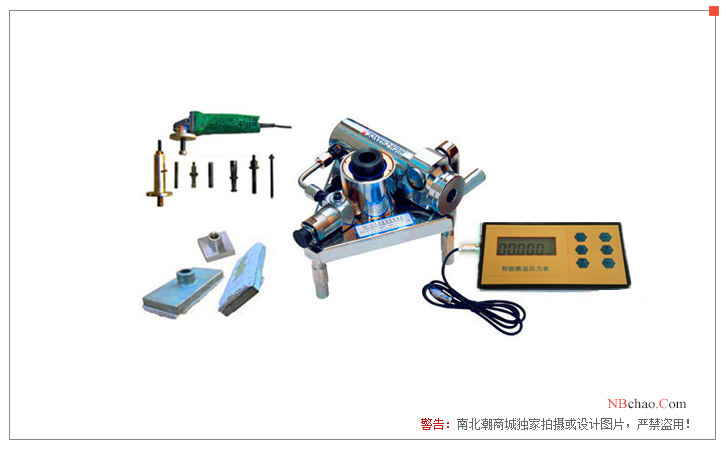

Runjietiandi RJ-40 multifunctional strength Tester is a small hydraulic force measuring device with large pulling force. It is composed of a through-hole jack, a hand pump, a triangle chassis and a digital display force measuring device. It has a multi-purpose machine. , Novel structure, small size, complete functions, etc. The oil pump of the Tester adopts manual pressure mode, which has the characteristics of small driving torque, comfortable and reasonable shaking direction, continuous and uniform loading, etc.
Features
1. Lightweight alloy main body, built-in micro-hydraulic system, strong pulling force.
2. Equipped with split-type digital display instrument, which can store 500 pieces of data
3. Setting menu, data can be recorded, queried and deleted;
4. Value 10-segment polyline correction improves the accuracy of the instrument;
5. Ultra-low power consumption design, 6 It will automatically shut down if there is no operation in one hour, and the continuous working time can exceed 200 hours;
6. Two measurement modes of intensity Mpa and force value KN.
Standards
CEC CS69: 94 "Technical Regulations for Testing Concrete Strength by Post-installation Pullout Method"
JGJ110-97 "Inspection Standard for Bonding Strength of Decorative Bricks in Construction Engineering"
JGJ126-2000 "Code for Construction and Acceptance of Decorative Bricks for Exterior Walls"
Application
RJ-40 multifunctional strength Tester is mainly used for the detection of concrete strength (C10~C80) in construction engineering. The detection of concrete strength is based on the principle of after-installation pull-out method, by measuring the force required to pull out the anchors placed in the concrete. Calculation of concrete strength; it can also detect the bonding strength of decorative bricks, mosaics, insulation boards, concrete, mortar, paint, coatings, glues, and small-sized chemical anchors, and pullout resistance Testers for threaded parts.
Pictures
