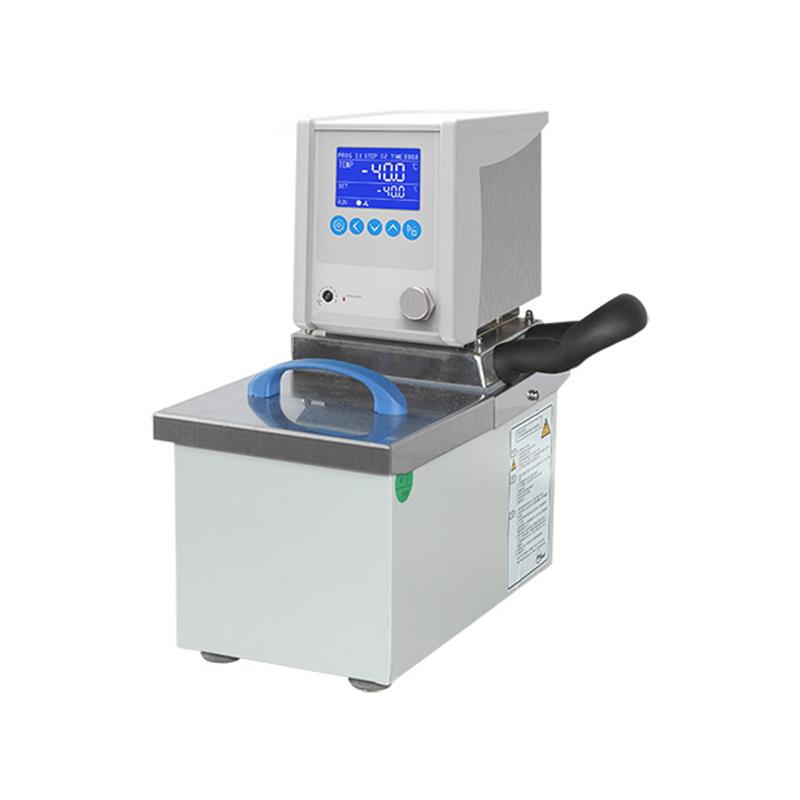

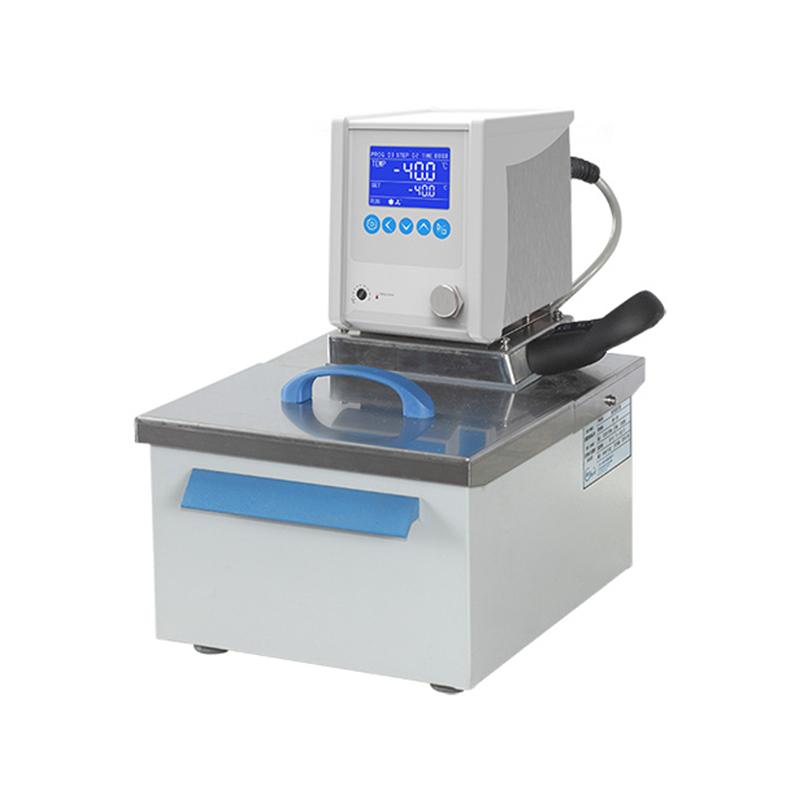

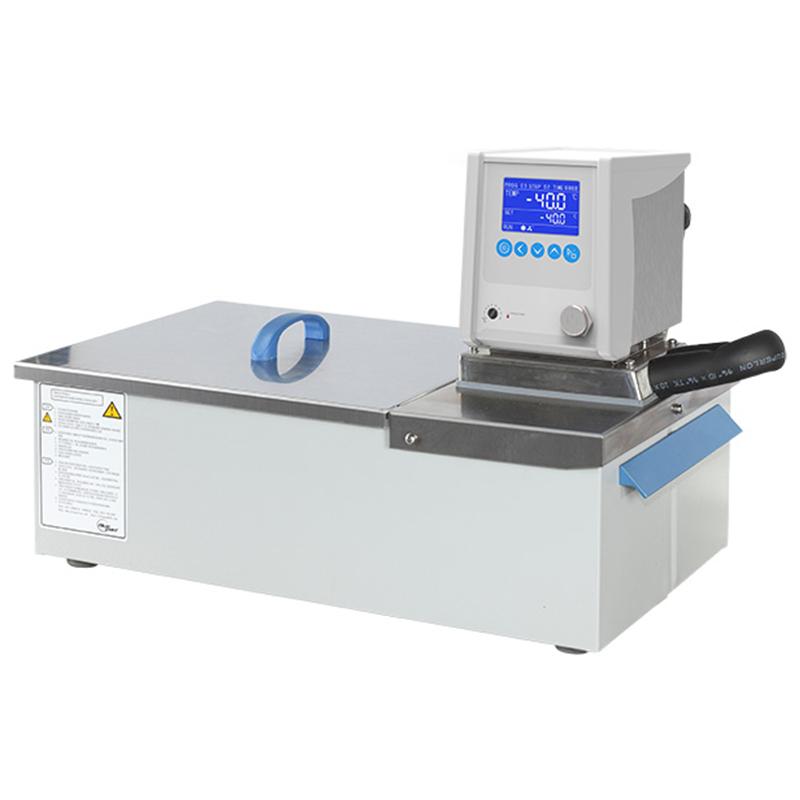

YIHENG MP-5H Circulating Heating Bath

MP-5H

Heating circulation tank

Temperature range 5~ 100 ℃, Temperature Fluctuation +/- 0.1 ℃, Temperature resolution 0.1 ℃, Working tank volume 6.7L, Tank opening dimensions 150 * 160mm, Working tank depth 150mm, Temperature control mode Microcomputer PID control, Circulation mode Internal/external circulation, Total Power 1050W

Introduction

The temperature range of Yiheng MP-5H Circulating Heating Bath is RT+5~100℃, and the liquid filling volume is 6.7L. The main components are all imported products, which have the characteristics of high quality, reliability and stability, and are widely used in petroleum, Chemical, pharmaceutical, life science, metrology, light industry and scientific research and other fields.

Features

1. Microcomputer PID temperature controller, accurate and reliable temperature control, with timing, key components such as heater and circulation pump are all imported products.

2. The sound and light tracking alarm and liquid level protection function of over-temperature and low-temperature ensure that the samples are reliably protected and no accidents occur.

3. Equipped with a powerful pressure suction pump to provide a constant temperature source for the peripheral tank.

4. The MP-5H Circulating Heating Bath is equipped with a connection port connected to an external bath.

5. Multi-segment programmable LCD controller. (optional)

●  The microcomputer program controls the temperature, time and heating rate, and conducts the constant temperature test at an extremely fast speed.

● It can preset 7 sections and 63 steps programmable, each section has 9 steps, and the setting time of each section is 1~99 hours and 59 minutes. The startup and shutdown time can be preset, and the speed of the Circulating Chiller can be adjusted.

● Multi-segment programmable control and menu-based operation interface can simplify the complex experimental process and truly realize automatic control and operation.

Packing list：host x1, instruction manual x1, packing list x1, warranty x1, warranty card x1, fuse x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
