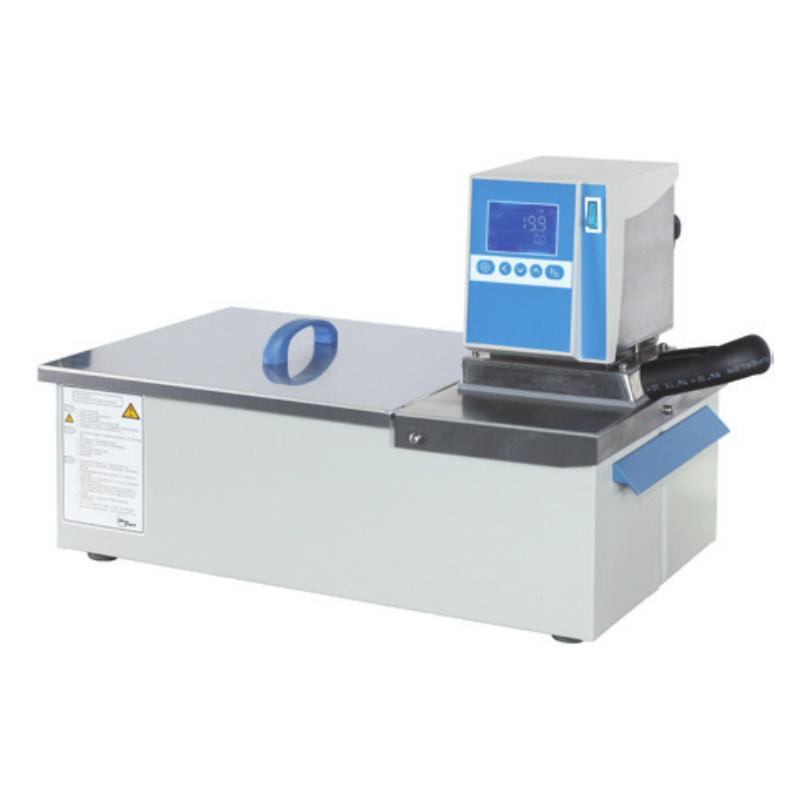

YIHENG MP-19H Circulating Heating Bath, microcomputer control, liquid filling volume 22.5L

MP-19H

Heating circulation tank

Temperature range 5~ 100 ℃, Temperature Fluctuation +/- 0.1, Working slot volume 22.5L, slot opening size 330 * 300mm, Tank Depth 150mm, Temperature control mode Microcomputer PID control, Circulation mode Internal/external circulation, Total Power 1050W

Introduction to MP-19H Heating Circulation Tank

The temperature range of Yiheng MP-19H Circulating Heating Bath is RT+5~100℃, and the filling volume is 22.5L. The MP-19H Circulating Heating Bath is a rectangular Water Tank with a metal shell. The Circulating Heating Bath has a core component - a microcomputer intelligent control system, which is used to control the temperature change and finally achieve a constant temperature effect.

Applications

MP-19H Circulating Heating Bath is widely used in the fields of petroleum, chemical industry, medicine, life science, measurement, light industry and scientific research.

Features and advantages

◆Microcomputer PID temperature controller, accurate and reliable temperature control, with timing, key components such as heater and circulation pump are imported products.

◆Over-temperature, low-temperature sound and light tracking alarm and liquid level protection function, so that the sample can be reliably protected and no accidents will occur.

◆ Equipped with a strong pressure suction pump to provide a constant temperature source for the peripheral tank.

◆MP-19H Circulating Heating BathEquipped with a connection port for connecting to an external bathtub.

◆Multi-segment programmable LCD controller. (optional)

● The microcomputer program controls the temperature, time and heating rate, and conducts the constant temperature test at a very fast speed.

● It can preset 7 sections and 63 steps programmable, each section has 9 steps, and the setting time of each section is 1~99 hours and 59 minutes. The startup and shutdown time can be preset, and the speed of the Circulating Chiller can be adjusted.

● Multi-segment programmable control and menu-based operation interface can simplify the complex experimental process and truly realize automatic control and operation.

Optional

1. Multi-segment programmable LCD controller

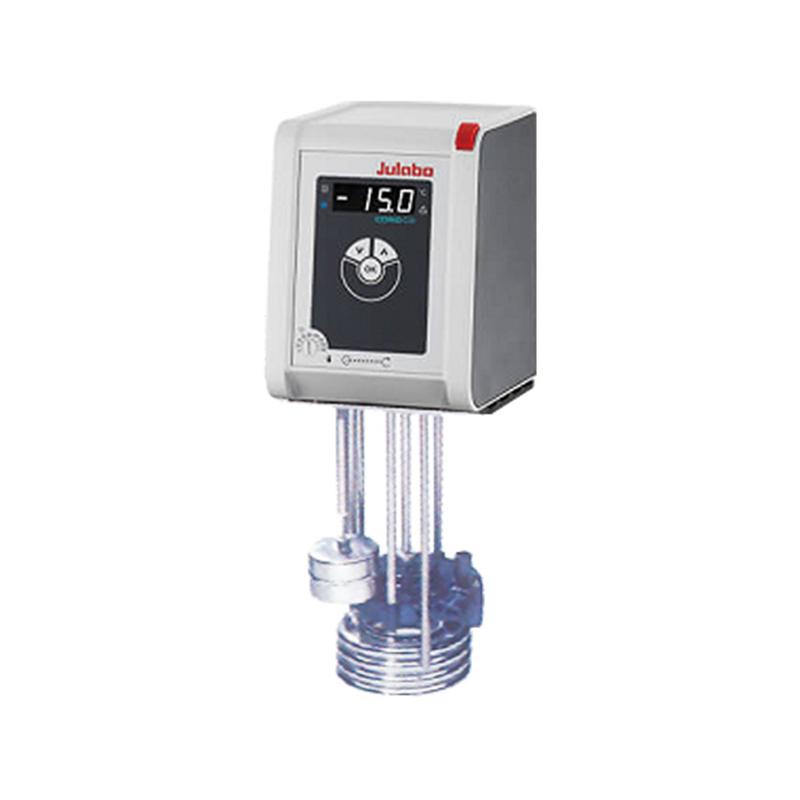

2. German Julabo controller ED, MB

Packing list：host x1, instruction manual x1, packing list x1, warranty x1, warranty card x1, fuse x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
