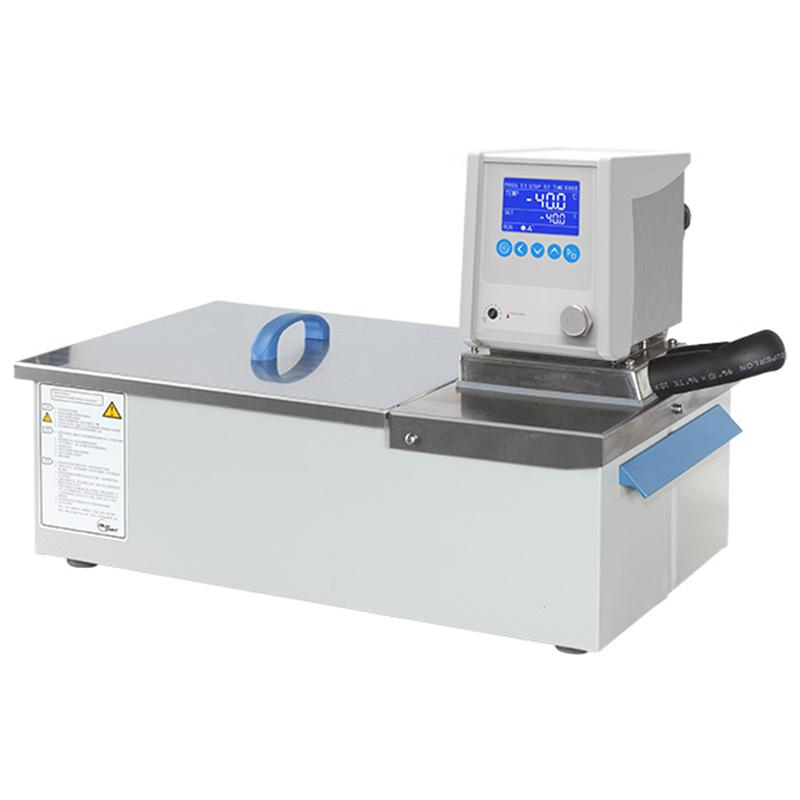

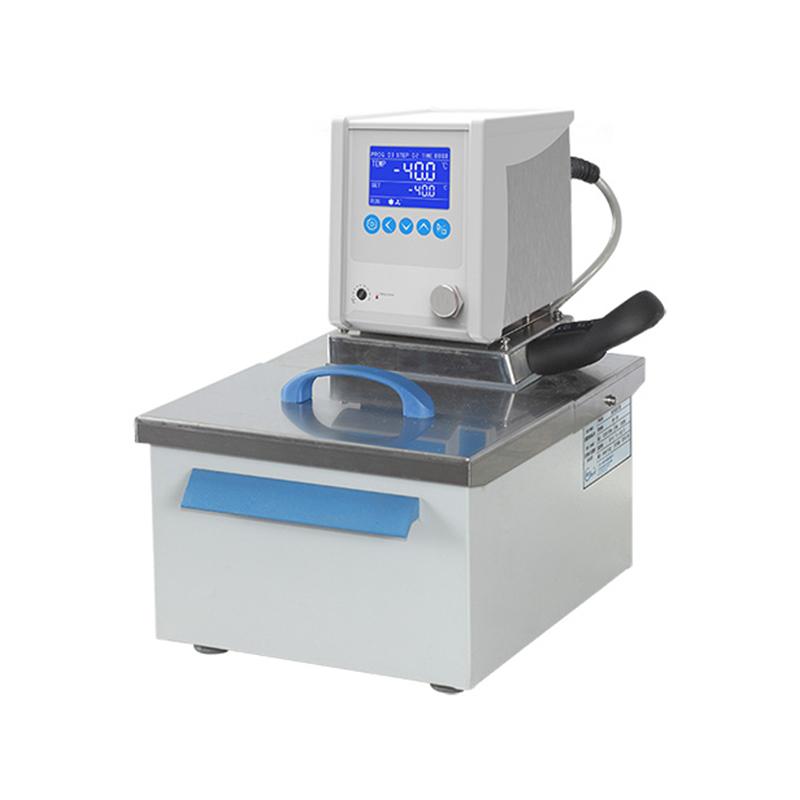

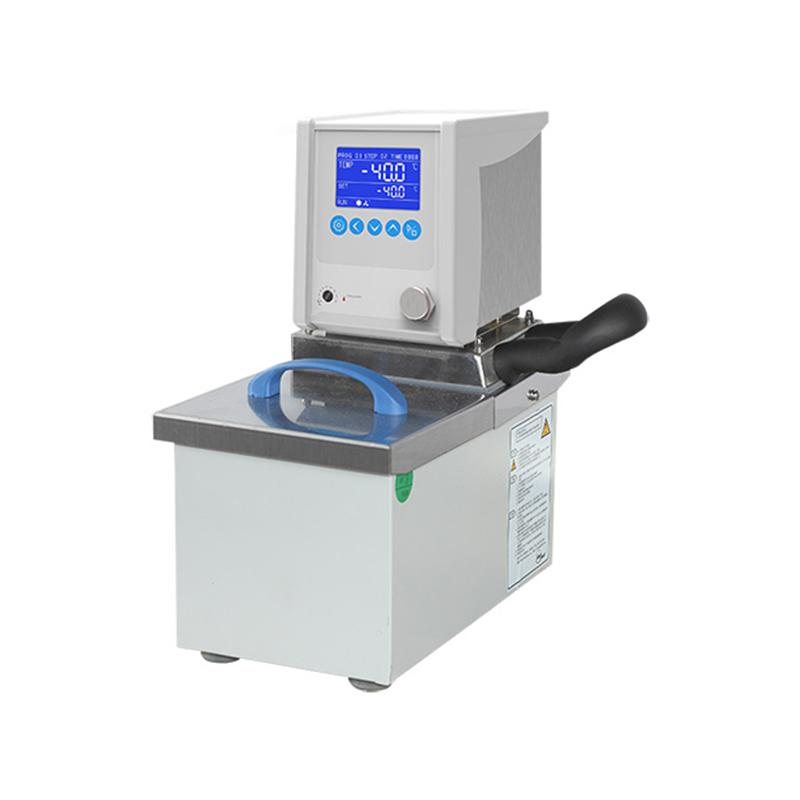

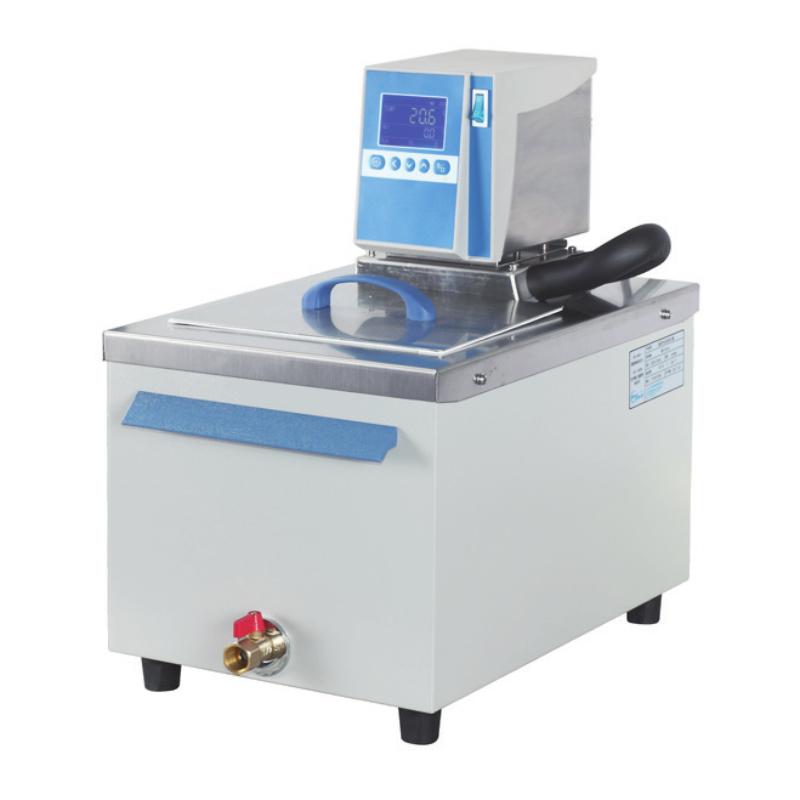

YIHENG MP-501A Circulating Heating Bath

MP-501A

Heating circulation tank

Temperature range 5~ 100 ℃, Temperature Fluctuation +/- 0.2 ℃, Working slot volume 14.5L, slot opening size 240 * 170mm, Tank Depth 200mm, Temperature control mode Microcomputer PID control, Circulation mode Internal/external circulation, Total Power 1050W

Introduction

Yiheng MP-501A Circulating Heating Bath can be used for constant temperature heating function, suitable for electronic detection, chemical reaction, high temperature distillation, semiconductor industry, etc. The temperature range of MP-501A Circulating Heating Bath is RT+5~100℃, and the filling volume is 14.5L. The key components of the MP-501A Circulating Heating Bath are imported high-quality products, which are reliable in operation and good in stability. It is suitable for fields such as petroleum, chemical industry, medicine, life science, metrology, light industry and scientific research.

Features and advantages

◆Microcomputer PID temperature controller, accurate and reliable temperature control, with timing, key components such as heater and circulation pump are imported products.

◆Over-temperature, low-temperature sound and light tracking alarm and liquid level protection function, so that the sample can be reliably protected and no accidents will occur.

◆ MP-501A Circulating Heating Bath is equipped with a powerful pressure suction pump to provide a constant temperature source for the peripheral tank.

◆ Equipped with a connection port for connecting with an external bathtub.

◆Multi-segment programmable LCD controller. (optional)

Features of the temperature controller

● The microcomputer program controls the temperature, time and heating rate, and conducts the constant temperature test at a very fast speed.

● It can preset 7 sections and 63 steps programmable, each section has 9 steps, and the setting time of each section is 1~99 hours and 59 minutes. The startup and shutdown time can be preset, and the speed of the Circulating Chiller can be adjusted.

● Multi-segment programmable control and menu-based operation interface can simplify the complex experimental process and truly realize automatic control and operation.

Optional

1. Multi-segment programmable LCD controller

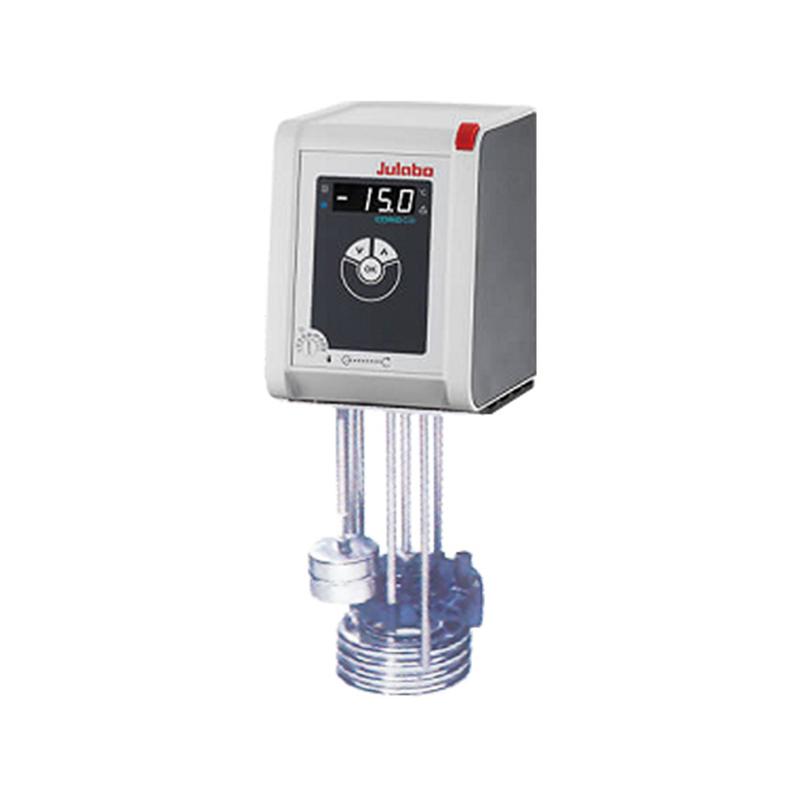

2. German Julabo controller ED, MB

Packing list：Heating circulation tank x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
