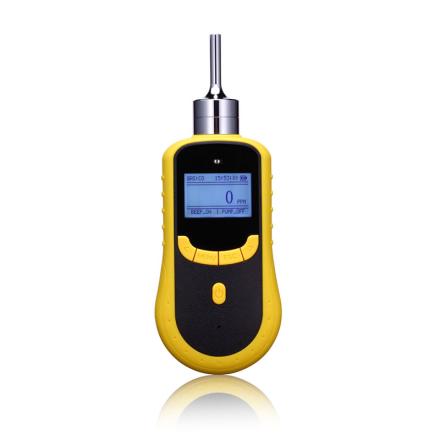

Unitec General accuracy SKY2000-TVOC (0-100PPM) Pump suction TVOC Detector Specifications
Search
Brand：Unitec
Model：General accuracy SKY2000-TVOC (0-100PPM)
Name：Pump suction TVOC Detector
Specifications
| Detect gas | TVOC |
| Detection principle | PID photoion |
| Sampling method | Pump suction type, Flow rate up to 1L/min, pump suction size has ten gears adjustable |
| range | 0~100ppm |
| resolution | 0.01ppm |
| Accuracy | 10%FS |
| signal output | USB interface for high-speed data transmission, downloadable print data (optional) |
| Response time/recovery time | ≤10S |
| Repeatability | ≤±1% |
| Linearity | ≤±1% |
| Zero drift | ≤ +/- 1% (F. S/year) |
| Display | LCD dot matrix display technology |
| Operating language | Support Chinese and English |
| Gas unit | Multiple Gas Unit switch display |
| Operating temperature | -40~70℃ |
| Relative Humidity | 0-95%RH |
| Explosion-proof sign | ExiaⅡCT4 |
| Protection level | IP66 |
| Alarm mode | Sound, light, vibration |
| Operating Time | 100 hours (turn off the pump) |
| Dimension | 205*75*32mm |
| Weight | 300g |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
