EYESKY ES10B10-VOC (0~1000ppm) Fixed VOC Analyzer

EYESKY ES10B10-VOC (0~1000ppm) Fixed VOC Analyzer Measurement range is 0~1000ppm, ES10B10-VOC adopts high performance Sensors imported from the UK, Stability is good.
Certificate
Contact
Details SPEC CAT OI

EYESKY ES10B10-VOC（0~1000ppm） Stationary VOC Detector SPEC

EYESKY ES10B10-VOC（0~1000ppm） Stationary VOC Detector Details

EYESKY ES10B10-VOC（0~1000ppm） Stationary VOC Detector Packing list

SKU
NB009190
Detect gas
VOC、TVOC
Detection principle
PID photoion
Detection method
Fixed online long-term continuous detection, diffusion detection method; fixed online continuous detection, through the external air pump, to achieve pump suction flow detection method (air pump optional);
range
0~1000ppm
resolution
0.01ppm
Accuracy
≤ +/- 2% (Actual concentration, higher Accuracy required according to Sensors performance)
Operation mode
Infrared remote control for remote and close operation, easy to set up
Repeatability
≤±0.5%
Zero drift
≤ +/- 1% (F. S/year)
Response time
≤15s(T90)
recovery time
≤ 20 seconds
Explosion-proof sign
Exd II CT6
Protection level
IP66
Output signal
Users can according to the actual site environment requirements, up to 2000 meters (single core 1mm2 Shielding cable) current signal 4-20mA output, can be connected to alarm Controller, PLC, DCS and other Control systems (standard configuration)
main material
Shell: ADC12 aluminum alloy, strong, wear-resistant and corrosion-resistant (optional 316 stainless steel shell) Air chamber: high-strength wear-resistant and corrosion-resistant Aluminum profile, durable (optional 316 stainless steel air chamber)
Installation method
Wall-mounted pipe integrated type (pipe type external thread specification: M45X1.5mm, optional pipe transfer screw joint, can be welded)
Operating temperature
-30~60℃
Relative Humidity
≤ 95% RH, no condensation (Humidity > 90% RH, condensation can be equipped with Filter)
Relative Humidity
10%~95%RH
Power Supply
24VDC (Normal Operating Voltage range 12~ 30VDC)
power consumption
1.5W
Working pressure
≤200Kpa
Dimension
180*140*92mm
Weight
About 1.6Kg
execution standard
GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010
ES10B10-VOC（0~1000ppm）
Stationary VOC Detector

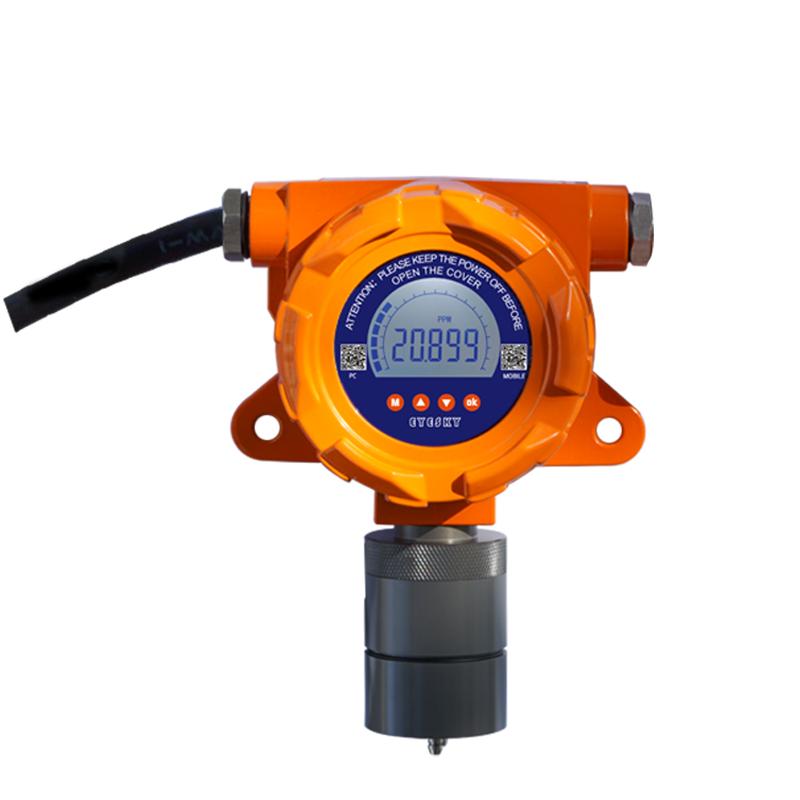

EYESKY ES10B10-VOC (0~1000ppm) Fixed VOC Analyzer Picture

Introduction

Visionless ES10B10-VOC (0~1000ppm) fixed VOC analyzer is a new Gas Detector created by Visionless Technology on the basis of ES10A, using original imported sensors and new 32-bit low-power processors; The dashboard display interface, the value and the progress bar are displayed at the same time, which is beautiful and generous; The circuit adopts 4 layers of wiring, which is stronger against weak signals and anti-interference; Independent high-precision imported 16-bit AD chip and signal processing algorithm, higher accuracy and more stable measurement data; 4~20mA, RS485, 200~1000HZ a variety of output signals can be selected, easy to access various alarm controllers, PLC, DCS and other control systems; The explosion-proof structure design can be applied to various dangerous industrial sites; The products are widely used in metallurgy, petroleum and petrochemical, municipal, chemical and other industries.

Features

◆ Original imported high-performance sensor, good stability and repeatability, long service life;

◆ Independent 16-bit AD chip, 4-layer circuit board design, stronger ability to weak signal and anti-interference;

◆ The dashboard display interface is designed, the reading is beautiful and generous, and the humanized detail design is reflected;

◆ White, orange and red backlight design, normal and alarm status indication, clear at a glance;

◆ mg/m3, ppm, VOL, LEL can be selected;

◆ Embedded 32-bit ultra-low power processor, with independent signal processing algorithm, fast response speed and high measurement accuracy;

◆ Automatic protection function against high-concentration gas impact, with factory reset to prevent misoperation;

◆ The instrument is equipped with infrared remote control, which can be operated by remote control, without opening the cover, which is simple and convenient;

◆ Three-wire 4~20mA, RS485, 200~1000HZ signal output optional, relay output, data recovery, data storage and other functions;

◆ Two cable inlets, convenient for on-site installation;

◆ Independent air chamber structure, easy sensor replacement, no need for on-site calibration;

◆ Very good mechanical design, the air chamber is made of high-strength aluminum profile of military quality, wear-resistant and corrosion-resistant, suitable for complex and harsh industrial environments, reasonable and scientific air chamber design, to ensure the accuracy of real-time monitoring of the sensor;

◆ The explosion-proof grade is Exd II CT6, which is certified by the National Explosion-proof Electrical Inspection Center.

Display diagram

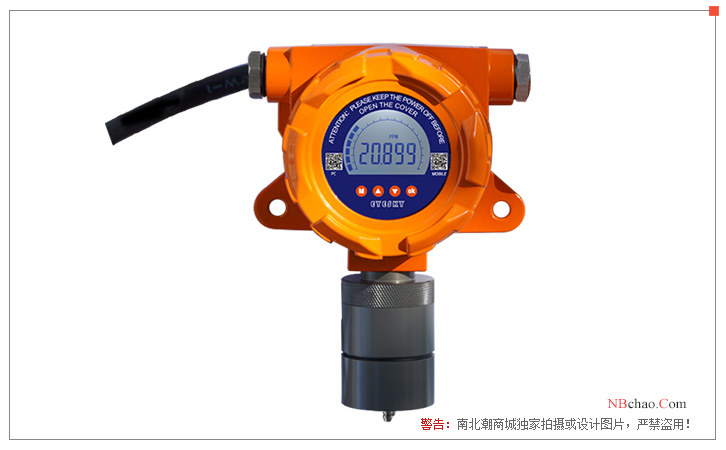

Visionless ES10B10-VOC (0~1000ppm) fixed VOC analyzer display diagram

FAQ
QIs there a GB/T23985 standard VOC detector?
A This EYESKY VOC detector is ok!
QDoes the Eyeless ES10B10-VOC detector have any judgment on the test results?
A Hello, the display screen of the fixed VOC detector will appear in three different colors to indicate three states, the white screen shows the normal state; the yellow-orange screen shows the first-level alarm; the red screen shows the second-level alarm.
QWhat is the difference between ES10B10-VOC and ES10B01-VOC models?
A Hello, ES10B10-VOC has a dashboard, but no sound and light alarm; ES10B01-VOC has no dashboard, but a sound and light alarm. Miscellaneous is the same.
