EYESKY ES10B10-VOC (0~2000ppm) fixed VOC concentration Detector

EYESKY ES10B10-VOC fixed VOC concentration Detector with LCD screen is an improved version of ES10A, the VOC concentration range of this ES10B10-VOC is 0~2000ppm.
Certificate
Contact
Details SPEC CAT OI

EYESKY ES10B10-VOC（0~2000ppm） Stationary VOC Detector SPEC

EYESKY ES10B10-VOC（0~2000ppm） Stationary VOC Detector Details

EYESKY ES10B10-VOC（0~2000ppm） Stationary VOC Detector Packing list

SKU
NB009192
Detect gas
VOC、TVOC
Detection principle
PID photoion
Detection method
Fixed online long-term continuous detection, diffusion detection method; fixed online continuous detection, through the external air pump, to achieve pump suction flow detection method (air pump optional);
range
0~2000ppm
resolution
0.01ppm
Accuracy
≤ +/- 2% (Actual concentration, higher Accuracy required according to Sensors performance)
Operation mode
Infrared remote control for remote and close operation, easy to set up
Repeatability
≤±0.5%
Zero drift
≤ +/- 1% (F. S/year)
Response time
≤15s(T90)
recovery time
≤ 20 seconds
Explosion-proof sign
Exd II CT6
Protection level
IP66
main material
Shell: ADC12 aluminum alloy, strong, wear-resistant and corrosion-resistant (optional 316 stainless steel shell) Air chamber: high-strength wear-resistant and corrosion-resistant Aluminum profile, durable (optional 316 stainless steel air chamber)
Installation method
Wall-mounted pipe integrated type (pipe type external thread specification: M45X1.5mm, optional pipe transfer screw joint, can be welded)
Operating temperature
-30~60℃
Relative Humidity
≤ 95% RH, no condensation (Humidity > 90% RH, condensation can be equipped with Filter)
Relative Humidity
10%~95%RH
Power Supply
24VDC (Normal Operating Voltage range 12~ 30VDC)
power consumption
1.5W
Working pressure
≤200Kpa
Dimension
180*140*92mm
Weight
About 1.6Kg
execution standard
GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010
ES10B10-VOC（0~2000ppm）
Stationary VOC Detector
EYESKY ES10B10-VOC (0~2000ppm) fixed VOC concentration Detector Picture

Introduction

Visionless ES10B10-VOC (0~2000ppm) fixed VOC concentration Detector is a new Gas Detector created by Visionless Technology on the basis of ES10A, using original imported sensors and new 32-bit low-power processors; The dashboard display interface, the value and the progress bar are displayed at the same time, which is beautiful and generous; The circuit adopts 4 layers of wiring, which is stronger against weak signals and anti-interference; Independent high-precision imported 16-bit AD chip and signal processing algorithm, higher accuracy and more stable measurement data; 4~20mA, RS485, 200~1000HZ a variety of output signals can be selected, easy to access various alarm controllers, PLC, DCS and other control systems; The explosion-proof structure design can be applied to various dangerous industrial sites; The products are widely used in metallurgy, petroleum and petrochemical, municipal, chemical and other industries.

Features

◆ Original imported high-performance sensor, good stability and repeatability, long service life;

◆ Independent 16-bit AD chip, 4-layer circuit board design, stronger ability to weak signal and anti-interference;

◆ The dashboard display interface is designed, the reading is beautiful and generous, and the humanized detail design is reflected;

◆ White, orange and red backlight design, normal and alarm status indication, clear at a glance;

◆ mg/m3, ppm, VOL, LEL can be selected;

◆ Embedded 32-bit ultra-low power processor, with independent signal processing algorithm, fast response speed and high measurement accuracy;

◆ Automatic protection function against high-concentration gas impact, with factory reset to prevent misoperation;

◆ The instrument is equipped with infrared remote control, which can be operated by remote control, without opening the cover, which is simple and convenient;

◆ Three-wire 4~20mA, RS485, 200~1000HZ signal output optional, relay output, data recovery, data storage and other functions;

◆ Two cable inlets, convenient for on-site installation;

◆ Independent air chamber structure, easy sensor replacement, no need for on-site calibration;

◆ Very good mechanical design, the air chamber is made of high-strength aluminum profile of military quality, wear-resistant and corrosion-resistant, suitable for complex and harsh industrial environments, reasonable and scientific air chamber design, to ensure the accuracy of real-time monitoring of the sensor;

◆ The explosion-proof grade is Exd II CT6, which is certified by the National Explosion-proof Electrical Inspection Center.

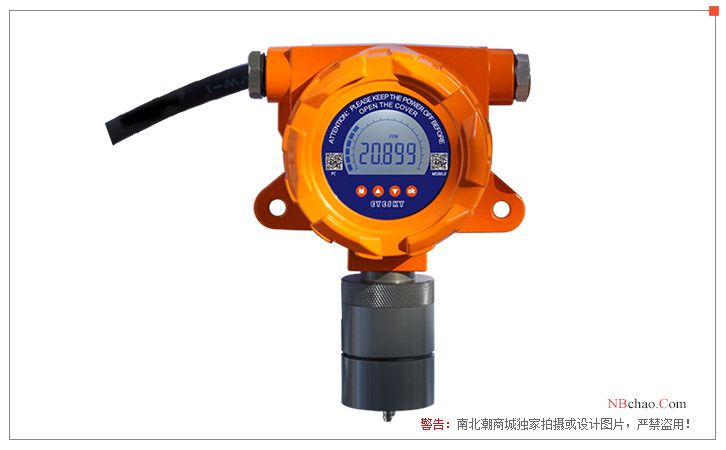

Display diagram

Visionless ES10B10-VOC fixed VOC concentration Detector display diagram

FAQ
QIs this the VOC detector mentioned in GB/T23985?
A OK
QHello, how is this ES10B10-VOC fixed VOC detector calibrated with diffusion zero?
A Hello, put the instrument gas chamber into the standard gas with a concentration of 0ppm, select the menu to enter the zero-point calibration interface, and short press the M (MENU) key to make the SET ZERO character flash, and the value to be read is stable. Press the OK key to complete the zero-point calibration. In fact, the operation manual has an introduction.
QThis fixed VOC detector has a preheating link before entering the gas reading interface. Can you skip it directly?
A Hello, if you want to skip the preheating process, press OK directly, but this operation is not recommended. The preheating link is necessary to ensure that the subsequent measurement is more accurate and stable.
