EYESKY ES10B11-CH2O Fixed Formaldehyde Detector detection concentration 0~10ppm

The test concentration of ES10B11-CH2O fixed Formaldehyde Detector is 0~10ppm, and the resolution is 0.01ppm. The ES10B11-CH2O formaldehyde concentration Measurement Instrument has an instrument panel and an acousto-optic alarm.
Certificate
Contact
Details SPEC CAT OI
Similar products

EYESKY ES10B11-CH2O（0~10ppm） Formaldehyde Detector SPEC

EYESKY ES10B11-CH2O（0~10ppm） Formaldehyde Detector Details

EYESKY ES10B11-CH2O（0~10ppm） Formaldehyde Detector Packing list

SKU
NB009196
Detect gas
Formaldehyde CH2O
Sensors principle
electrochemistry
Sampling method
diffusion
CH2O-range
0~5ppm, 0~10ppm, 20ppm, 50ppm, 100ppm, 200ppm, 500ppm, 1000ppm (optional, unlisted ranges can be customized)
CH2O-resolution
0.01ppm (0-100ppm), 0.1ppm (100-1000ppm), 1ppm (1000ppm or more)
CH2O-detection Accuracy
±3%F.S.
Operation mode
Infrared remote control for remote and close operation, easy to set up
Repeatability
≤±1%
Zero drift
≤ +/- 1% (F. S/year)
Response time
T90≤20s
recovery time
≤20s
Explosion-proof sign
Exd Ⅱ CT6
Protection level
IP66
Output signal
Users can according to the actual site environment requirements, up to 2000 meters (single core 1mm2 Shielding cable) three-wire system 4-20mA current signal output, can be connected to the alarm Controller, PLC, DCS and other Control system (standard configuration)
main material
Shell: ADC12 aluminum alloy, strong, wear-resistant and corrosion-resistant (optional 316 stainless steel shell) Air chamber: high-strength wear-resistant and corrosion-resistant Aluminum profile, durable (optional 316 stainless steel air chamber)
Installation method
Wall-mounted, pipeline type
Operating temperature
-30~60℃
Environmental humidity
0~95% RH non-condensing
Environmental humidity
10%~95%RH
Power Supply
24VDC (Normal Operating Voltage range 12~ 30VDC)
power consumption
1.5W
Operating Pressure
≤200Kpa
Dimension
180*140*92mm
Weight
About 1.6Kg
execution standard
GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010
ES10B11-CH2O（0~10ppm）
Formaldehyde Detector

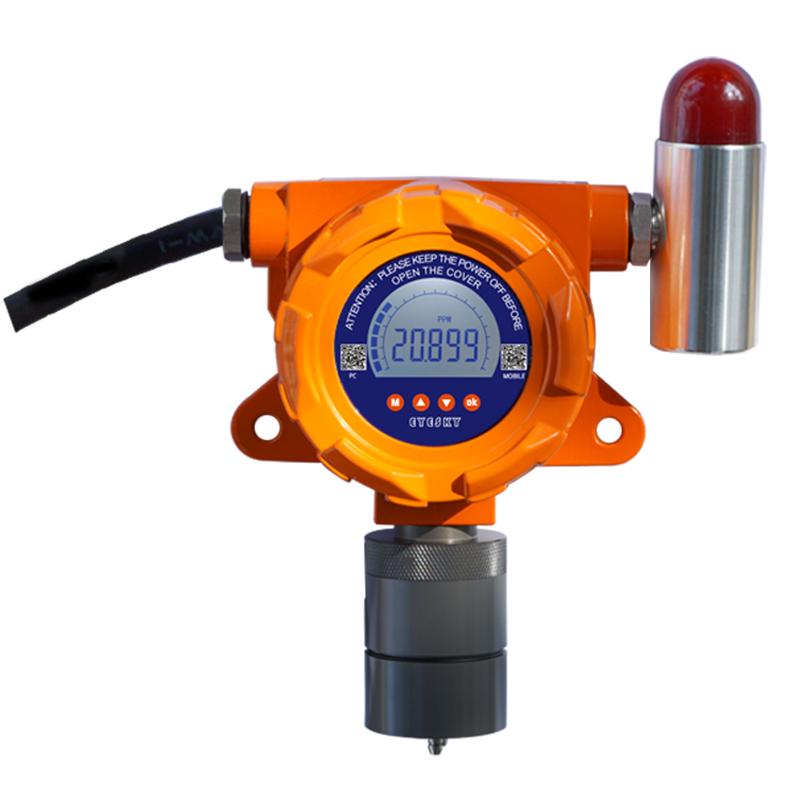

EYESKY ES10B11-CH2O Fixed Formaldehyde Detector detection concentration 0~10ppm Picture

Description

Visionless ES10B11-CH2O fixed formaldehyde Detector is a new one created by Visionless Technology on the basis of ES10AGas Detector, using original imported sensors and new ones32-bit low-power processor; Dashboard display boundarysurface, the value and the progress bar are displayed at the same time, which is beautiful and generous; Circuit adoption4 layers of wiring, against weak signals and anti-dryingDisturbance is stronger; Independent high-precision imports16-bit AD chip and signal processing algorithm to measure data accuracyHigher and more stable;4~20mA, RS485, 200~1000HZ a variety of output signals can be selected, easy to accessAlarm controllers, PLC, DCS and other control systems; Explosion-proof structures are designed to be used in a variety of hazardous industriesLocation; The products are widely used in metallurgy, petroleum and petrochemical, municipal, chemical and other industries.

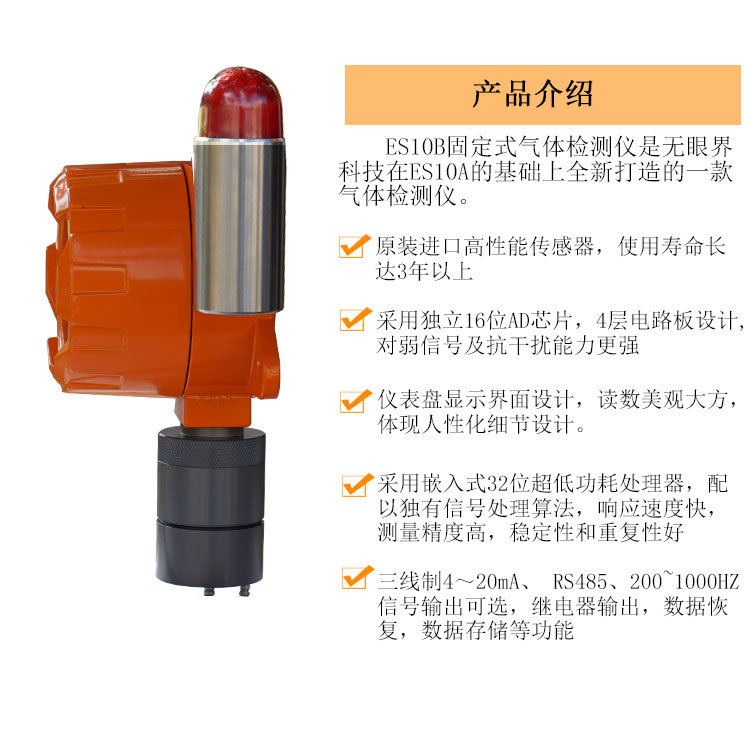

Introduction of Visionless ES10B11-CH2O Fixed Formaldehyde Detector

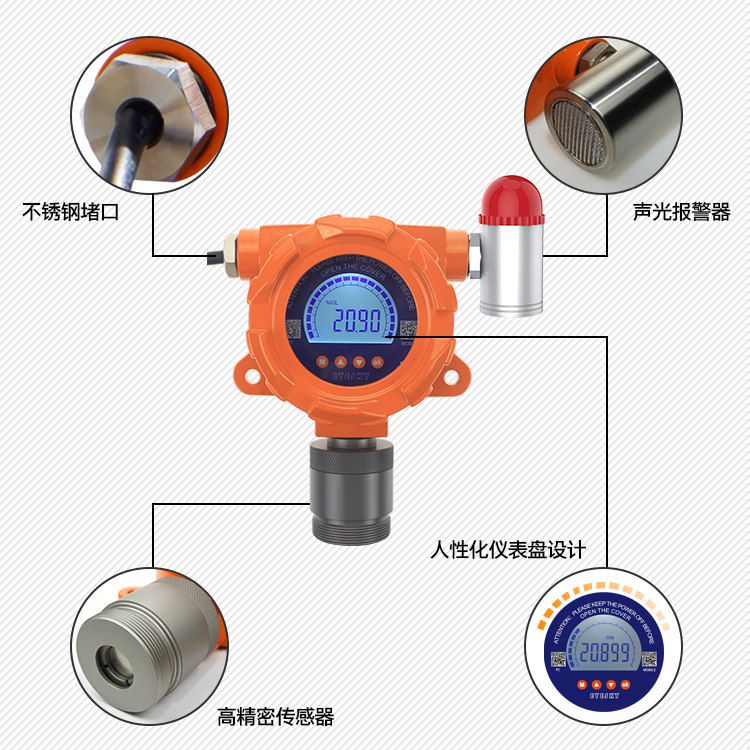

Structural diagram of the ES10B11-CH2O fixed formaldehyde Detector without vision

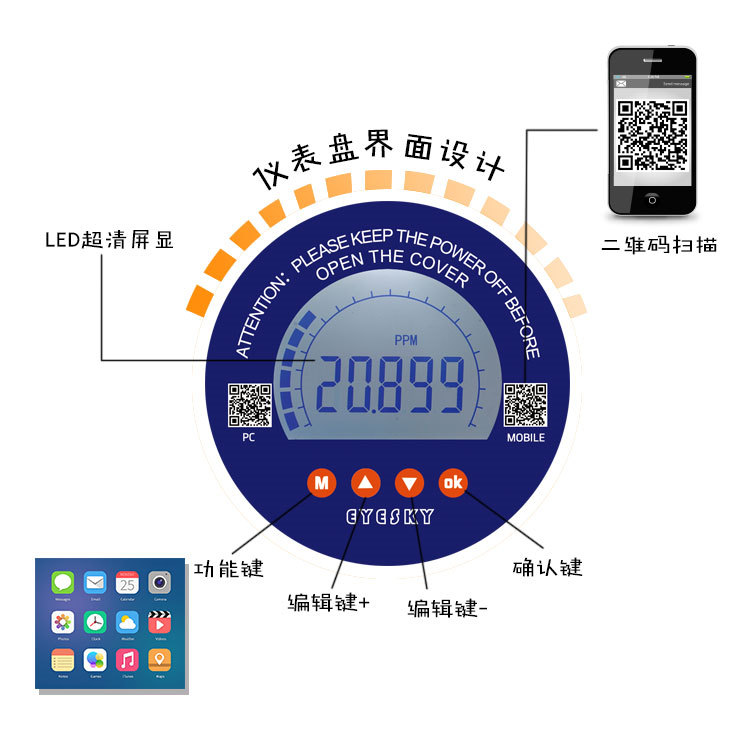

Architectural diagram of the ES10B11-CH2O fixed formaldehyde detection instrument panel without vision

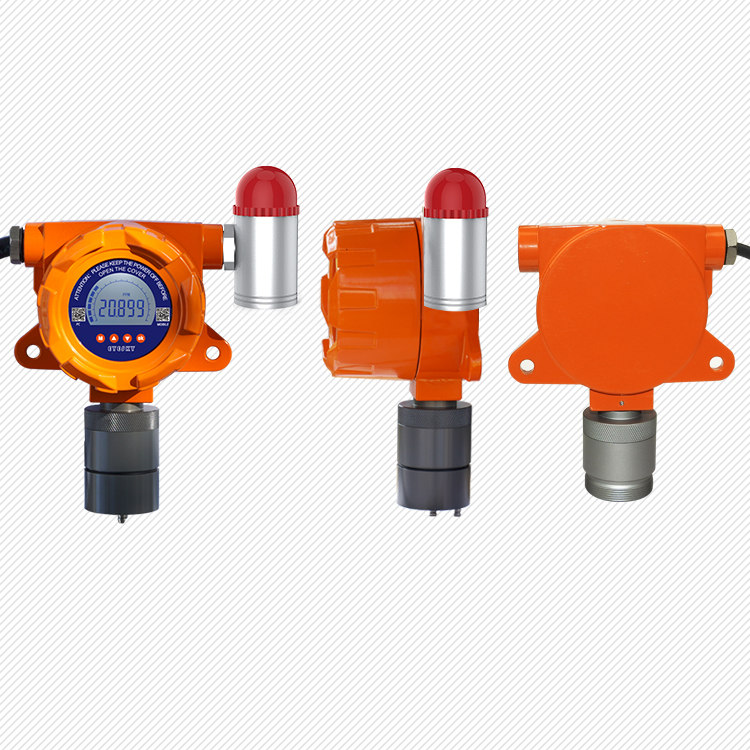

Detail drawing of the Visionless ES10B11-CH2O fixed formaldehyde Detector

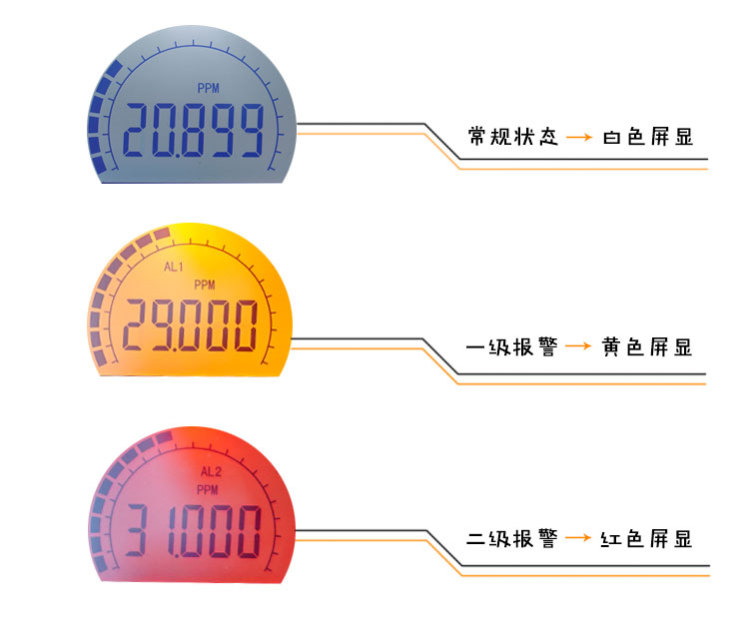

Visionless ES10B11-CH2O Fixed Formaldehyde Detector Alarm Instructions

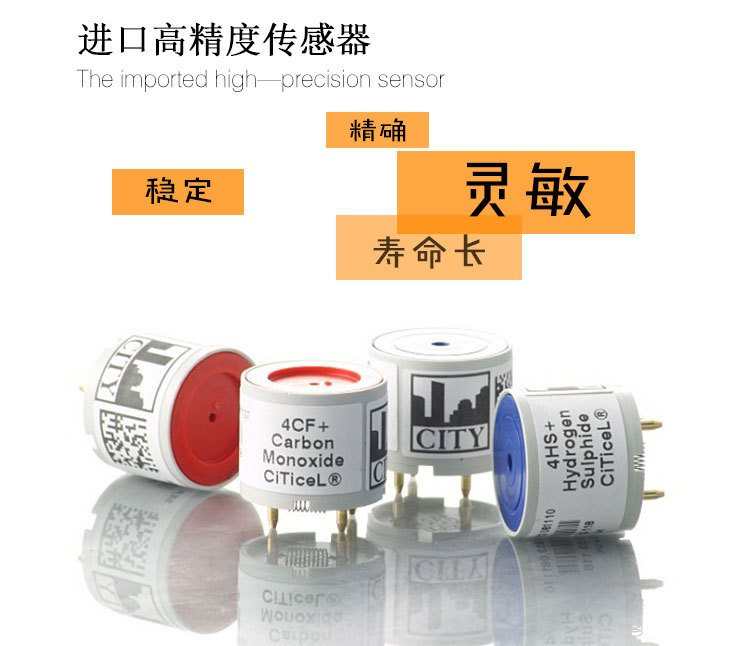

Visionless ES10B11-CH2O Fixed Formaldehyde Detector Sensor Features

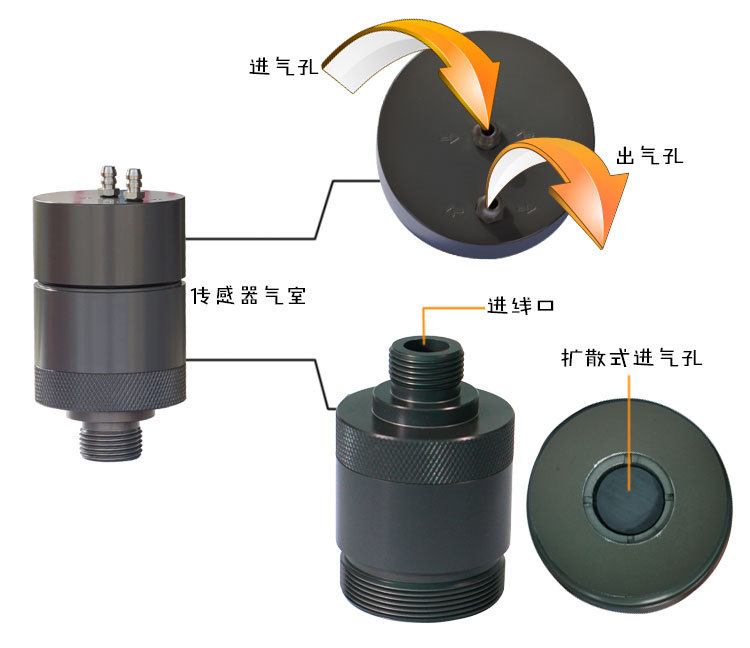

Detail of the air inlet hole of the ES10B11-CH2O fixed formaldehyde Detector without vision

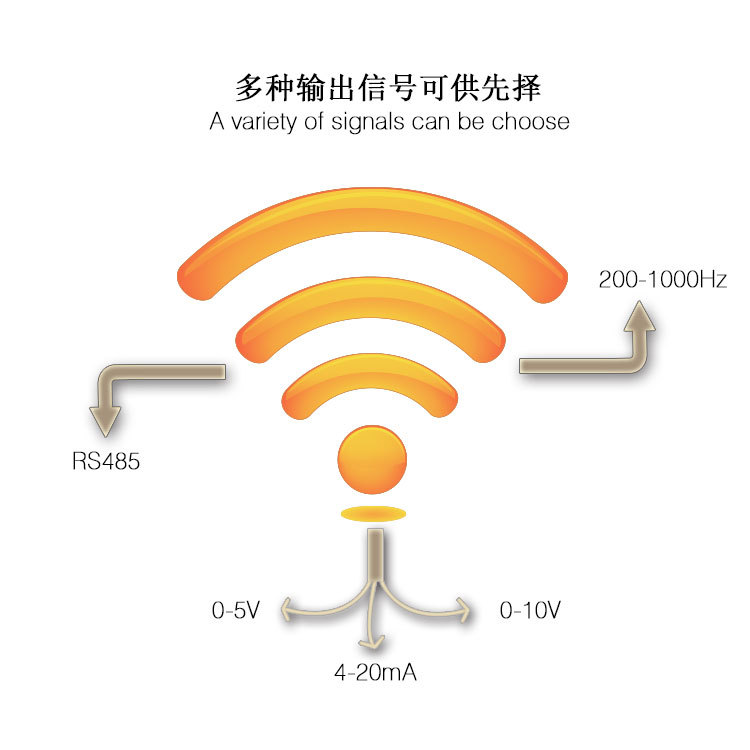

Visionless ES10B11-CH2O fixed formaldehyde Detector signal output

Visionless ES10B11-CH2O fixed formaldehyde Detector Operating Environment

Features

◆ Original imported high-performance sensor, long service life;

◆ Independent 16-bit AD chip, 4-layer circuit board design, stronger ability to weak signal and anti-interference;

◆ The dashboard display interface is designed, the reading is beautiful and generous, and the humanized detail design is reflected;

◆ White, orange and red backlight design, normal and alarm status indication, clear at a glance;

◆ mg/m3, ppm, VOL, LEL can be selected;

◆ Embedded 32-bit ultra-low power processor, with independent signal processing algorithm, fast response, high measurement accuracy, good stability and repeatability;

◆ Automatic protection function against high-concentration gas impact, with factory reset to prevent misoperation;

◆ The instrument is equipped with infrared remote control, which can be operated by remote control, without opening the cover, which is simple and convenient;

◆ Three-wire 4~20mA, RS485, 200~1000HZ signal output optional, relay output, data recovery, data storage and other functions;

◆ Two cable inlets, convenient for on-site installation;

◆ Independent air chamber structure, easy sensor replacement, no need for on-site calibration;

◆ Very good mechanical design, the air chamber is made of high-strength aluminum profile of military quality, wear-resistant and corrosion-resistant, suitable for complex and harsh industrial environments, reasonable and scientific air chamber design, to ensure the accuracy of real-time monitoring of the sensor;

◆ The explosion-proof grade is Exd II CT6, which is certified by the National Explosion-proof Electrical Inspection Center.

FAQ
QHow often does this Formaldehyde detector need to be calibrated?
A Hello, it is recommended to calibrate the Formaldehyde detector every 3 months.
QIs this eyeless fixed Formaldehyde detector suitable for use in a chemical plant?
A Hello, yes, the detection range of this ES10B11-CH2O fixed Formaldehyde detector is 0~ 10ppm.
