EYESKY ES10B01-VOC (0~20ppm) Fixed VOC Online Monitor

EYESKY ES10B01-VOC (0~20ppm) fixed VOC online monitor designed with sound and light alarm, support a variety of Measurement units, ES10B01-VOC measurement concentration range of 0~20ppm, resolution 0.01ppm.
Certificate
Contact
Details SPEC CAT OI

EYESKY ES10B01-VOC（0~20ppm） Stationary VOC Detector SPEC

EYESKY ES10B01-VOC（0~20ppm） Stationary VOC Detector Details

EYESKY ES10B01-VOC（0~20ppm） Stationary VOC Detector Packing list

SKU
NB009203
Detect gas
VOC、TVOC
Detection principle
PID photoion
Detection method
Fixed online long-term continuous detection, diffusion detection method; fixed online continuous detection, through the external air pump, to achieve pump suction flow detection method (air pump optional);
range
0~20ppm
resolution
0.01ppm
Accuracy
≤ +/- 2% (Actual concentration, higher Accuracy required according to Sensors performance)
Operation mode
Infrared remote control for remote and close operation, easy to set up
Repeatability
≤±0.5%
Zero drift
≤ +/- 1% (F. S/year)
Response time
≤15s(T90)
recovery time
≤ 20 seconds
Explosion-proof sign
Exd II CT6
Protection level
IP66
Output signal
Users can according to the actual site environment requirements, up to 2000 meters (single core 1mm2 Shielding cable) current signal 4-20mA output, can be connected to alarm Controller, PLC, DCS and other Control systems (standard configuration)
main material
Shell: ADC12 aluminum alloy, strong, wear-resistant and corrosion-resistant (optional 316 stainless steel shell) Air chamber: high-strength wear-resistant and corrosion-resistant Aluminum profile, durable (optional 316 stainless steel air chamber)
Installation method
Wall-mounted pipe integrated type (pipe type external thread specification: M45X1.5mm, optional pipe transfer screw joint, can be welded)
Operating temperature
-30~60℃
Relative Humidity
≤ 95% RH, no condensation (Humidity > 90% RH, condensation can be equipped with Filter)
Relative Humidity
10%~95%RH
Power Supply
24VDC (Normal Operating Voltage range 12~ 30VDC)
power consumption
1.5W
Working pressure
≤200Kpa
Dimension
180*140*92mm
Weight
About 1.6Kg
execution standard
GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010
ES10B01-VOC（0~20ppm）
Stationary VOC Detector

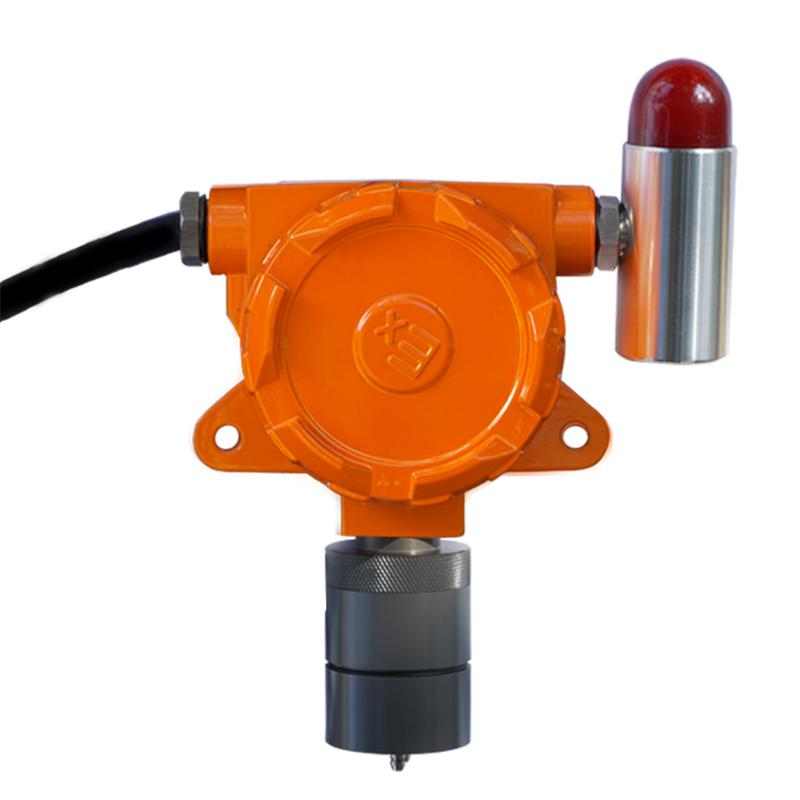

EYESKY ES10B01-VOC (0~20ppm) Fixed VOC Online Monitor Picture

Introduction

Visionless ES10B01-VOC (0~20ppm) fixed VOC online monitor is a new one created by Visionless Technology on the basis of ES10AGas Detector, using original imported sensors and new ones32-bit low-power processor; Dashboard display boundarysurface, the value and the progress bar are displayed at the same time, which is beautiful and generous; Circuit adoption4 layers of wiring, against weak signals and anti-dryingDisturbance is stronger; Independent high-precision imports16-bit AD chip and signal processing algorithm to measure data accuracyHigher and more stable;4~20mA, RS485, 200~1000HZ a variety of output signals can be selected, easy to accessAlarm controllers,PLC, DCS and other control systems; Explosion-proof structures are designed to be used in a variety of hazardous industriesLocation; The products are widely used in metallurgy, petroleum and petrochemical, municipal, chemical and other industries.

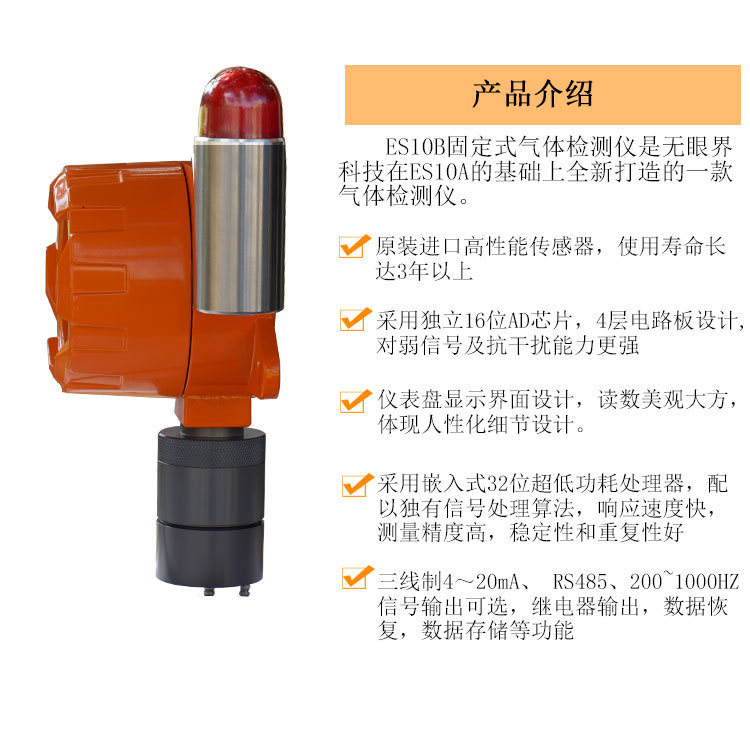

Introduction of Visionless ES10B01-VOC (0~20ppm) Fixed VOC Online Monitor

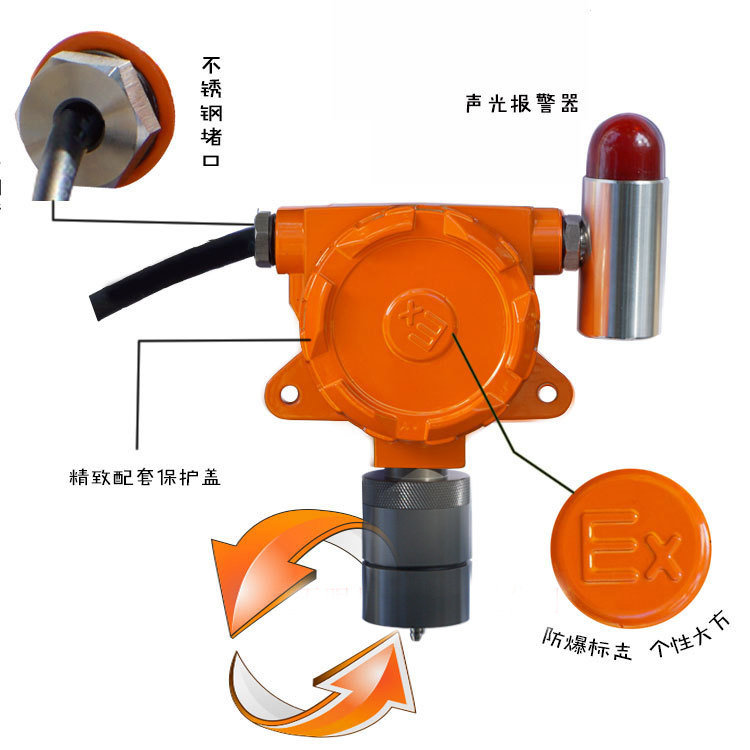

Structural diagram of visionless ES10B01-VOC (0~20ppm) fixed VOC online monitor

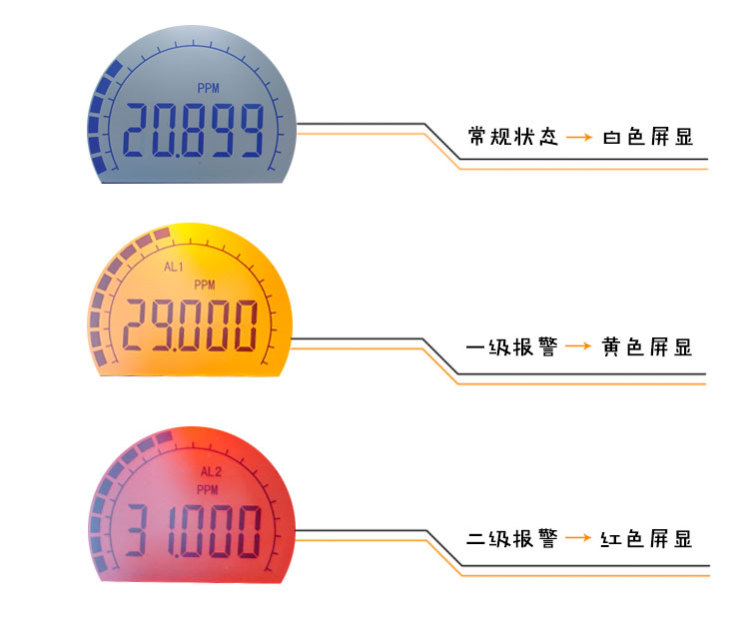

Visionless ES10B01-VOC (0~20ppm) Fixed VOC Online Monitor Sound and Light Siren Instructions

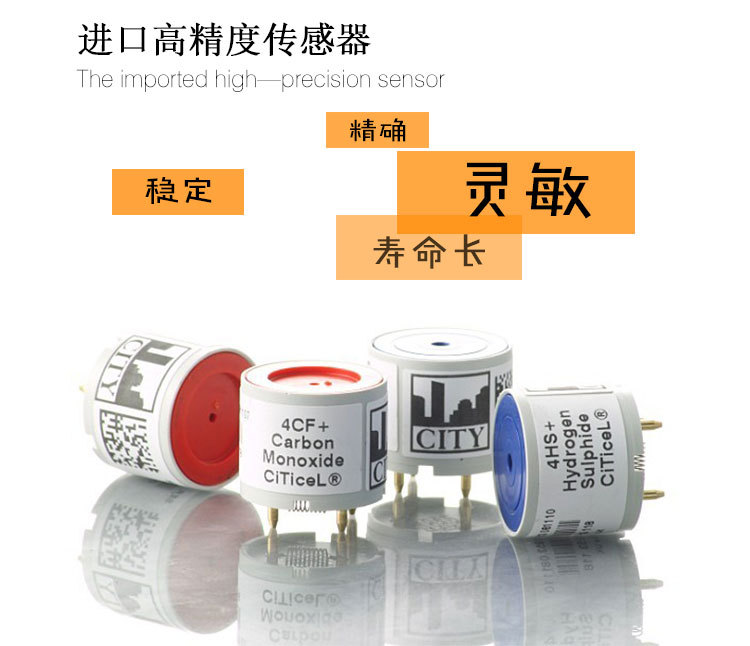

Introduction to the advantages of the sensor of ES10B01-VOC (0~20ppm) fixed VOC online monitor

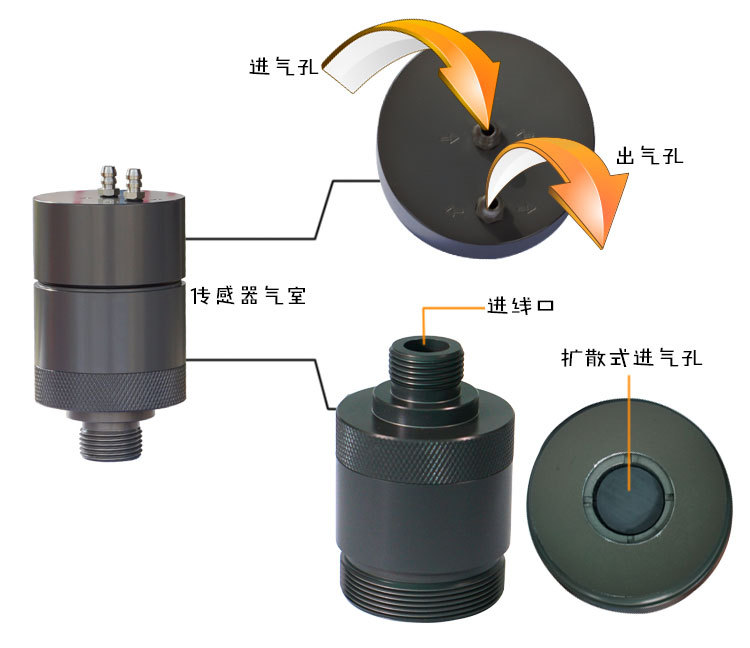

Detail diagram of the air inlet hole of the visionless ES10B01-VOC (0~20ppm) fixed VOC online monitor

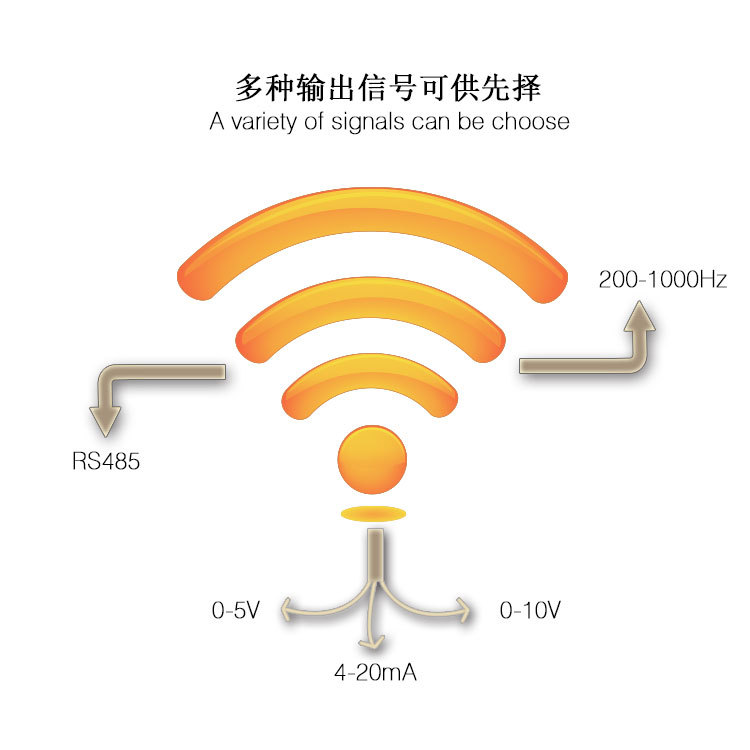

Visionless ES10B01-VOC (0~20ppm) fixed VOC online monitor signal output selection

Visionless ES10B01-VOC (0~20ppm) fixed VOC online monitor application environment

FAQ
QThis VOC detector can be applied to GB/T23985?
A OK
QHow is the ES10B01-VOC fixed VOC detector installed?
A Hello, I suggest you take a look at the operation manual for the specific operation method of installation. There is a specific introduction. Click the "Operation Manual" icon in the Encasement List column of the product page.
QHow does this fixed VOC detector control the operation, and is it OK for remote operation?
A Hello, the eyeless fixed VOC detectors are all operated by infrared remote devices and can be used for long-distance operation.
