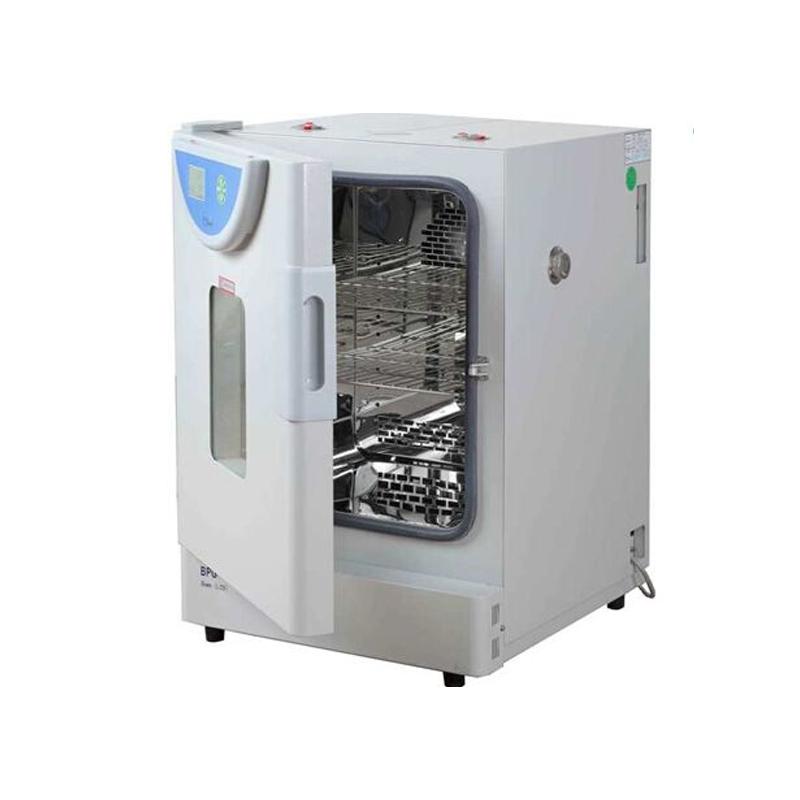

YIHENG BPG-9040A Precision Forced Air Drying Oven Input Power is 850W

BPG-9040A

Drying Oven

Temperature range RT + 10~200 ℃/RT + 10~250 ℃, Temperature resolution 0.1 ℃, Temperature Fluctuation +/- 1 ℃, Temperature uniformity +/- 2.5%, shelf (std.) 2pcs, Interior size 350 * 320 * 350mm, Dimension 480 * 566 * 650mm, Volume 40L

Introduction of BPG-9040A precision Forced Air Drying Oven

The temperature control range of Yiheng BPG-9040A precision Forced Air Drying Oven is 10~200℃, and the liquid crystal display is convenient for observation and operation. The left side of the precision blast drying box is equipped with a test hole with a diameter of 25mm, which can be wired arbitrarily according to actual needs, providing users with greater convenience.

Features and advantages

1. Humanized design

● Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand, easy to observe and operate.

● BPG-9040A precision Forced Air Drying Oven adopts mirror stainless steel liner, the four corners are semi-circular transition, and the shelf bracket can be freely loaded and unloaded, which is convenient for the cleaning work of the studio.

● The left side of the cabinet is equipped with a test hole with a diameter of 25mm, which can be wired arbitrarily according to the needs of the place where it is placed.

2. Self-diagnosis function

● When the BPG-9040A precision Forced Air Drying Oven breaks down, the LCD will display the failure information, and the fault point can be seen at a glance.

3. Multi-segment programmable controller (optional)

● Microcomputer program controller, time and heating rate, can conduct heating and drying test at a very fast speed.

● It can preset 7 sections and 63 steps programmable, each section has 9 steps, and the setting time of each section is 1~99 hours and 59 minutes. The startup and shutdown time can be preset, and the speed of the circulating fan is adjustable.

● Multi-segment programmable control and menu-based operation interface can simplify the complex experimental process and truly realize automatic control and operation.

4. Convenient data processing (optional)

● BPG-9040A precision Forced Air Drying Oven can be connected to a printer, 485 communication interface or USB data transfer interface (U disk), and record the temperature with a computer and a printer.

The speed and time curve provide a strong guarantee for the storage and playback of experimental process data.

5. Safety function

● Independent temperature limit alarm system, and sound and light alarm to remind the operator to ensure safe operation without accidents. (optional)

● High or low temperature and over-temperature alarm.

Optional

1. Multi-segment programmable temperature controller

2. Embedded printer

3. Independent temperature limit controller

4. RS485 interface and communication software

5. Wireless alarm system (SMS alarm system)

Pictures

Packing list：host x1, instruction manual x1, packing list x1, warranty x1, warranty card x1, fuse x2, shelf x2, communication data cable x1, software CD x1, printing paper x1, U disk x1, UV lamp x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
