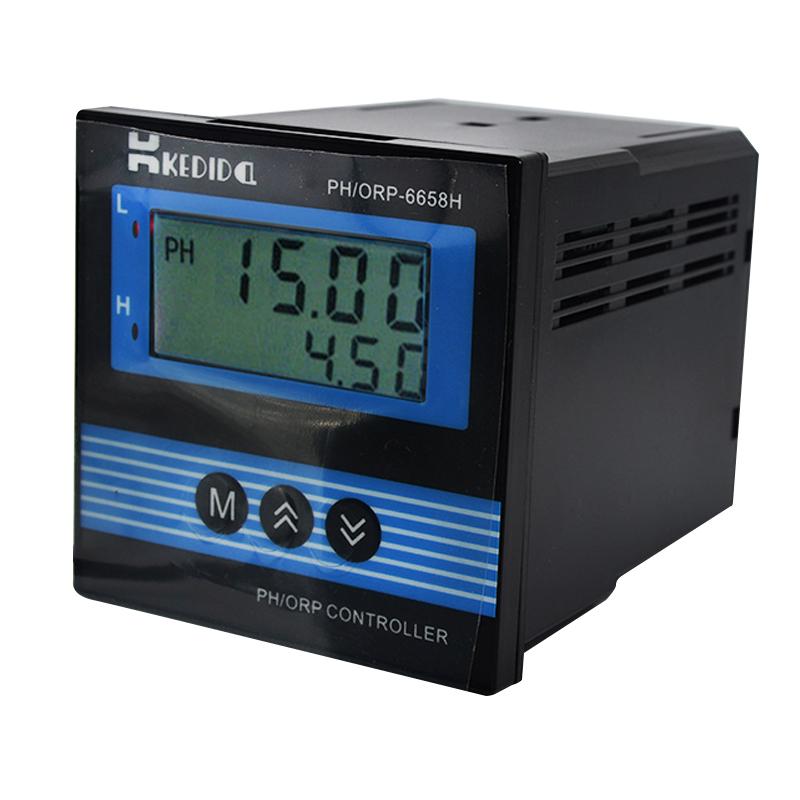

KEDIDA CT-6658 Industrial pH Meter

Industrial pH Meter

pH Controller CT-6659

Introduction:
        CT--6659 industrial pH meter is a multi-functional and intelligent instrument integrating pH measurement and control and redox measurement and control. Its functions are complete and the performance is stable. Easy to operate and other features. It is one of the most cost-effective instruments in this category. It is widely used in electroplating plants, circuit board factories, fermentation, food processing and other sewage treatment occasions.

Features

Microchip chip in the United States, 96×96 international standard shell. High-quality components, with LCD display, isolated 4-20mA current output, dual-group relay control, high-low point alarm indication, power-down memory, no need for backup batteries, data storage for more than ten years

Specifications:

Power supply	AC 220V(160—250V)50Hz
Power consumption of the whole machine	<5W
Precision	±0．01pH ;          ±1mV
Measuring range	0.00～14.00pH     ±2000mV
Set the point	2
Ambient temperature	0~50℃
Automatic temperature compensation	0~100℃
Display	Dual four-digit LCD display, high-low control LED indication
Ambient humidity	35—85％RH
Parameters are saved	≥ 10 years
Output mode	ON／OFF        4～20mA
Output capacity	AC 250v／3A     DC30V／3A
Input impedance	≥1012Ω
Insulation R	≥10MΩ
Gauge size	96mmX96mmX125mm

 5. Standard configuration of industrial pH meter: (unit: set)

           One pH controller, one pH electrode, 3 packs/sets of pH (4.01;6.86;9.18) standard buffer. A copy of the instruction manual

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
