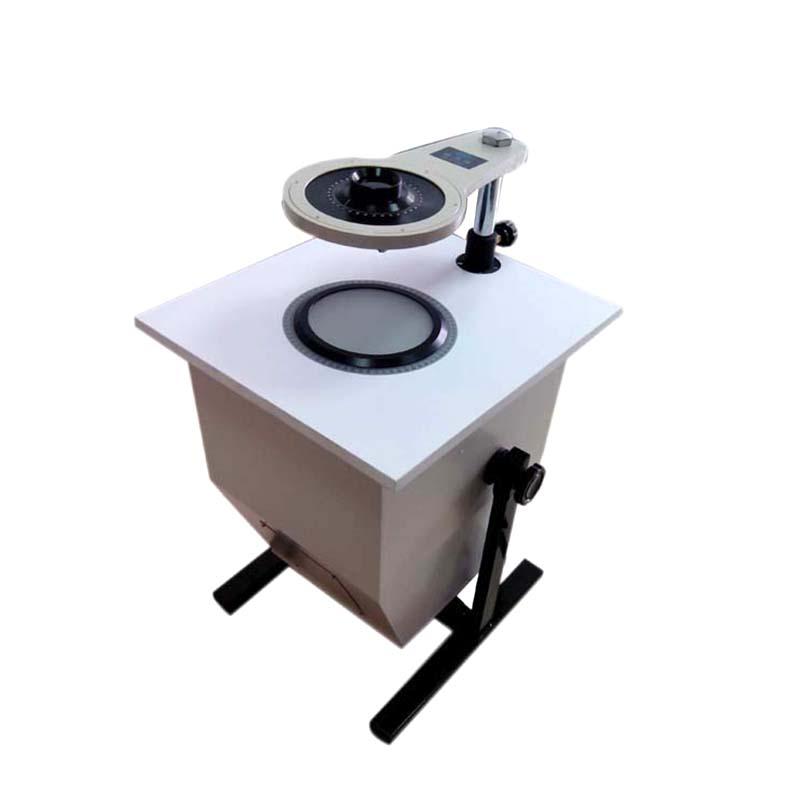

SUOGUANG WYL-150A Qualitative and quantitative polarizing stress meter, optical path difference measurement range 0-589.44nm
SE
WYL-150A
Suoguang WYL-150A Qualitative and quantitative polarizing stress meterSPEC
Suoguang WYL-150A Qualitative and quantitative polarizing stress meterDetails
Suoguang WYL-150A Qualitative and quantitative polarizing stress meterPacking list
- SKU
- NB009357
- Optical path difference Measurement Range
- 0-589.44nm
- Measurement Accuracy
- ±4nm
- polarization field diameter
- Φ150mm
- Full wave plate wavelength
- 565nm
- Table swirl/spin angle
- 0-360°
- Polarizer degree plate grid value
- 2°
- Monochromatic light wavelength sodium light
- 589.44nm
- Incandescent light (halogen lamp)
- 12V 25W
Introduction
Suoguang WYL-150A Qualitative and Quantitative Polarization Strain Meter is an instrument that applies the principle of polarized light interference to examine the internal stress of transparent glass or the birefringence effect of crystals. Since the instrument is equipped with incandescent light, sodium light, sensitive film (full wave plate) and applies 1/4 wave plate compensation method, this qualitative and quantitative polarizing stress meterNot only can the internal stress and distribution , but also the value of the internal stress of the glass can be accurately and quantitatively measured.
Applications
WYL-150A Qualitative and Quantitative Polarization Strain Meter is suitable for optical factories, glass factories, glass product factories and laboratories to measure the stress value of optical glass, glass products and other transparent materials. It is not only widely used in industrial production, but also in national defense, Building material geology, mineral materials, and science also play an important role, and it is also a particularly desirable educational and experimental equipment for colleges and universities.

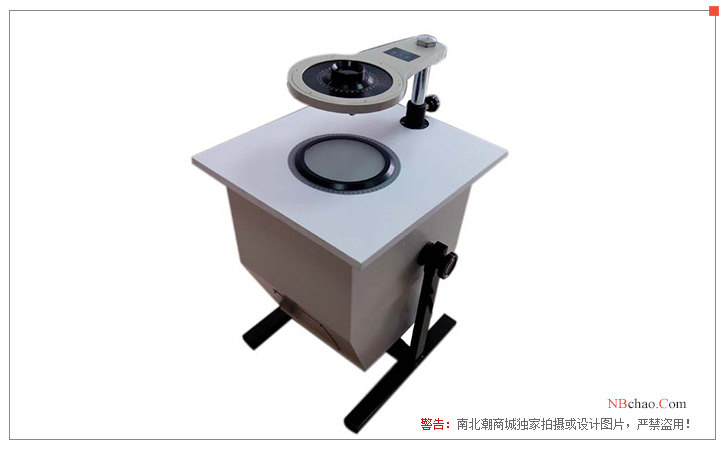

Pictures
