SUOGUANG WYL-2D/2E Continuous Zoom Microscope with Binocular/Trinocular Microscope

WYL-2D/2E

Continuous variable magnification microstress meter

Introduction

Suoguang WYL-2D/2E continuous variable magnification micro-strain instrument, also known as continuous variable magnification stereo vision micro-strain instrument, is a new type of dual-function instrument that combines the principle of polarized light interferometry with a continuous variable magnification stereo microscope. The instrument is used to measure the birefringence phenomenon of transparent objects due to internal stress. This internal stress is caused by uneven cooling of the object or other reasons (such as mechanical action) to observe the structure and interference image of the object. It is clear and reliable with high resolution. instrument.

Features

1. Stress measurement range 560nm (first-order interference color)

2. The optical path difference of the full wave plate is 560nm (nanometer)

3. Clear and upright image with strong three-dimensional effect

4. Continuous zoom means that you can set the appropriate magnification at will with only one focus adjustment

5. It can be connected with video camera or conventional and digital camera system (optional)

Applications

WYL-2D/2E continuous variable magnification micro-stress instrument is suitable for small-sized glass-metal interface and metal seal stress detection, such as jewelry, eye-catching, wick, etc., because it is widely used in glass products industry, jewelry, Clocks, lamps, aviation research, agriculture, medicine, industry, geology and archaeology, hospitals, education, laboratories, etc.

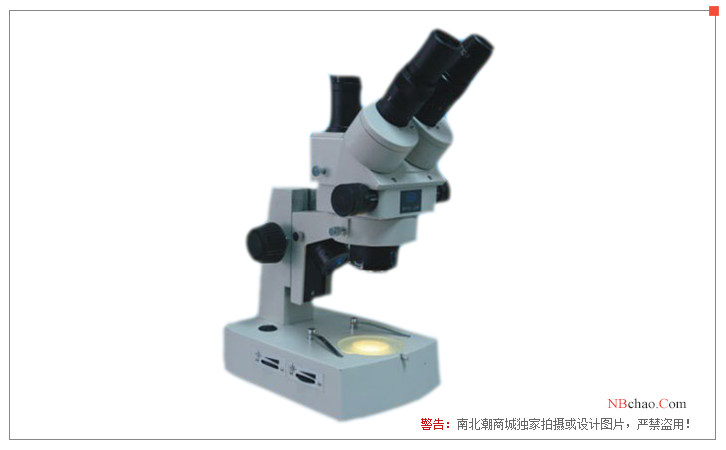

Pictures

Packing list：host x1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
