Thermax (TMC) temperature US 8 grid A board warm paper, temperature 37~ 65 ℃

08STHERNGAD

Thermometric Paper (Thermal Test Paper)

Irreversible, waterproof and dustproof, self-adhesive, 8 temperature points 37, 40, 43, 46, 49, 54, 60, 65 ℃, popular British thermax models.

Introduction

Thermax (TMC) 8-grid A/8-grid B/8-grid C/8-grid D board temperature paper is an eight-grid thermal test paper. The eight grids represent different temperature values. The temperature measurement range is 37~65℃/71~110℃ /116~154℃/160~199℃. When the temperature rises to this temperature point, the square will turn black and will not return to its original color even if the temperature subsequently decreases. In this way, the highest temperature the object has experienced can be known. The 8-grid A-plate temperature paper is a vertical self-adhesive type with both Celsius and Fahrenheit degrees.

Principle

TMC8 grid temperature paper adopts a new concept of temperature measurement. There is a row of squares on a small sticker, representing different temperature values. When the temperature rises to this temperature point, the squares will turn black, even if the temperature subsequently decreases. It will not return to its original color, so you can know the highest temperature the object has ever experienced. You can know whether there is an over-temperature phenomenon without having to monitor it for a long time, or you can use the test paper as strong evidence of quality.

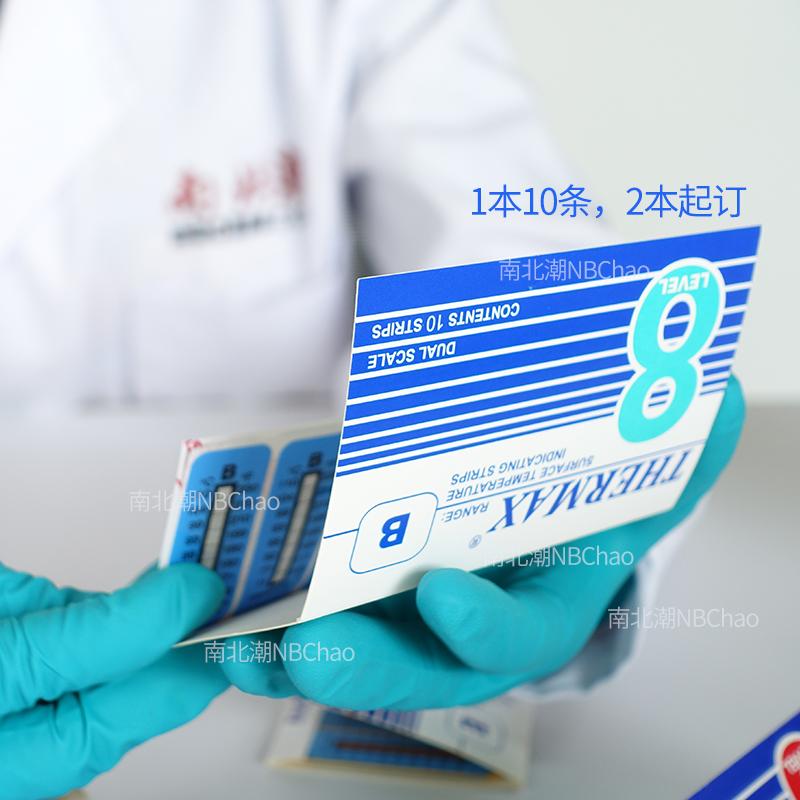

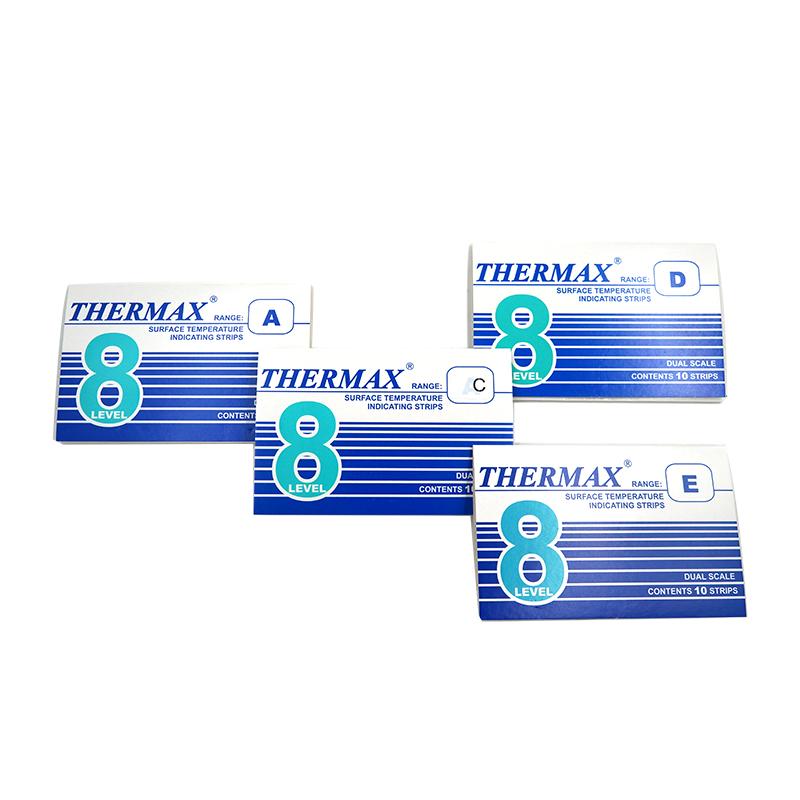

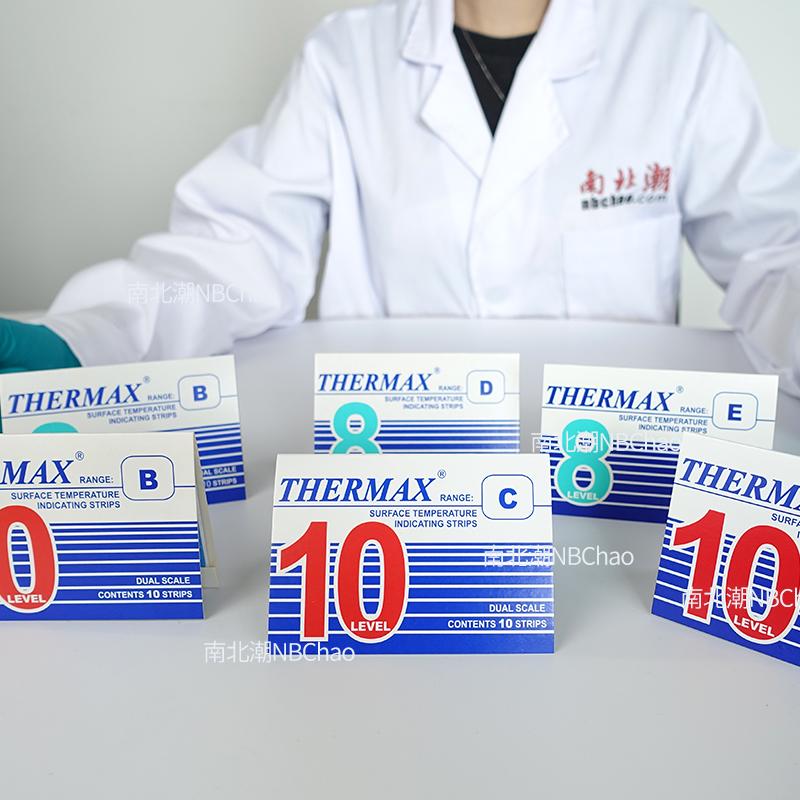

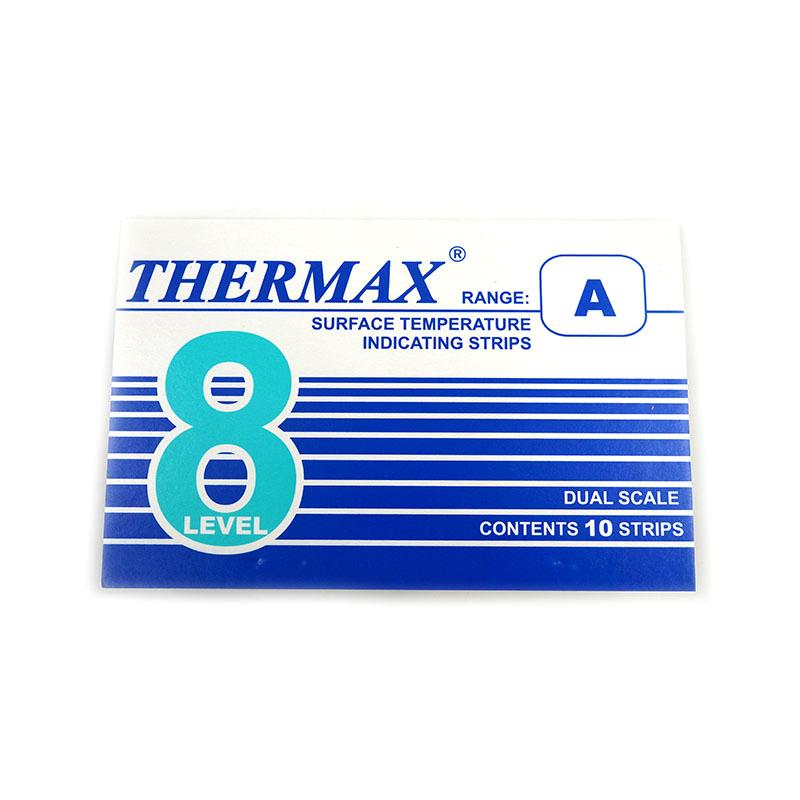

Product actual pictures

Features of board temperature paper products

1. Oil-resistant and water-resistant

2. No danger or toxicity

3. Accuracy: below 100℃ is +/- 1℃; above 100℃ is +/- 1% of the range

4. Product specifications comply with BS EN ISO 9001 standards

Applications

1. Home appliance industry: The colored copper material of electrical appliance casing needs to be combined with paint and baked at a suitable temperature to achieve good results. Before the spraying process, use thermal test paper to test and determine whether the required temperature has been reached.

2. Electric power company: Stick 8-grid temperature measuring paper on generators, motors, and transformers. If overtemperature is found, it means that there has been a problem in some part of the system. You can seek solutions immediately to prevent major accidents.

3. Railway company: stick it on wheels, axle boxes, and rails, and regularly check whether it is overheated to ensure normal operation of the vehicle and driving safety.

4. Electronics industry: For some electronic components, printed circuit boards, etc., if they encounter high temperatures during transportation, it will be enough to damage their normal functions. Therefore, thermal test paper should be affixed to the components during shipment. The recipient can rest assured when they see that the temperature is not overheated. Used, the payer can also use this as evidence of qualified quality.

5. Process industry: Attach the thermal test paper to the object that needs to be heated and heat it together to know whether the required temperature has been reached or exceeded, such as the combination of fusible linings on textiles, footwear and other products Glue joints, baking of paint, etc.

6.: Eight-grid thermometer paper can ensure that the sterilization and disinfection of utensils, samples, etc. have reached the required temperature.

7. Temperature monitoring of other helicopter engines, high-Voltage switches, aircraft black boxes, cooling water radiators, temperature-sensitive chemical storage racks and various parts of racing cars.

Note: 8-grid temperature paper is sold in packages of 10 strips each.

Packing list：Thermometric Paper X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
