SHENYANG KEJING PTL-MM02-8P Pull Coating Machine 8 Pull Stations

SHENYANG KEJING PTL-MM02-8P lifting coating machine is designed with 8 lifting stations, which can simultaneously lift 5 sample numbers. PTL-MM02-8P lifting coating machine is widely used in Universities & colleges, research institutes and other research fields.
Model：
Certificate
Contact
Details SPEC

ShenYang KeJing PTL-MM02-8P Film ApplicatorSPEC

ShenYang KeJing PTL-MM02-8P Film ApplicatorDetails

ShenYang KeJing PTL-MM02-8P Film ApplicatorPacking list

SKU
NB009446
Power supply Voltage
220V 50Hz
X-axis speed
500~5000mm/min
Z-axis speed
1~200mm/min
itinerary
65mm
Sample size
75*25*2.5mm
The number of samples to be pulled at the same time
5
Lifting station
Eight.
Stay, drying time
1s-999s
number of cycles
1 time - 999 times
Dimensions
900*520*540mm
Weight
20kg
PTL-MM02-8P
Film Applicator

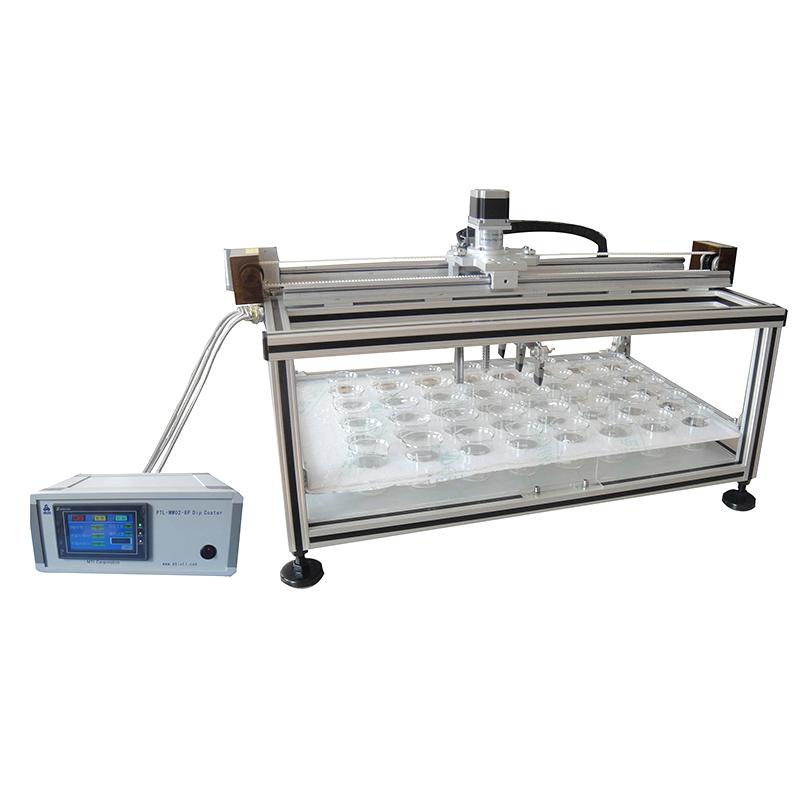

SHENYANG KEJING PTL-MM02-8P Pull Coating Machine 8 Pull Stations Picture

Introduction

Shenyang Kejing PTL-MM02-8P lifting coating machinebeDesigned for the study of liquid-phase growth thinsmembrane design of precision equipment,Growing the film by vertically lifting the sample in the liquid phase,It is widely used in colleges and universitiesschools, research institutes and other research fields. This machine adopts a high-precision speed control system, as well as a touch screen parameter input terminal, and realizes the automatic control of 5 samples lifting and coating film at the same time.

Features

1. The 8 stations can be set with different lifting speed, residence time and drying time

2. Wide range of application.

Product display diagram

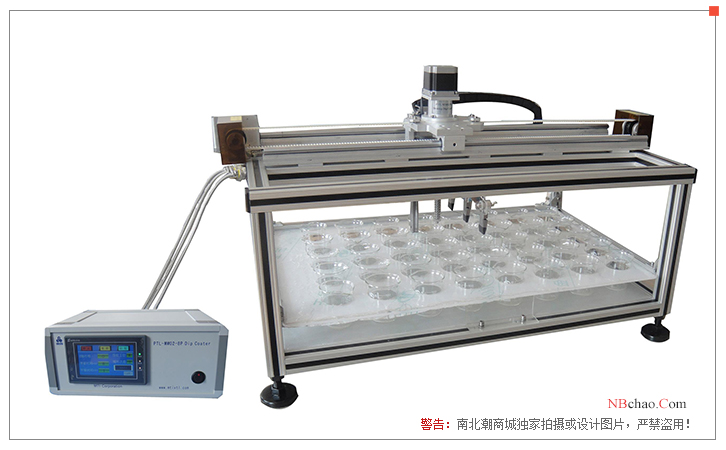

Front view of Shenyang Kejing PTL-MM02-8P lifting coating machine

Optional

1. Different sizes of carrier cups and container fixing racks can be customized according to your needs

2. Constant temperature Water Tank (power: 800W; constant temperature temperature: RT-70°C; temperature accuracy: ±1°C without considering environmental influence; volume: 25L)

FAQ
Qptl-mm02-8p What is the relationship between viscosity, thickness and error of this lift applicator?
A The more viscous the viscosity, the thicker the thickness, generally Moulding thickness can be more than ten to several hundred microns
QHG/T2115 Automatic Film Applicator
A PTL-MM02-8P Pull Automatic Film Applicator, please refer to
