KOSON KS-3T (iron) bolt puller Measurement range 0~300KN CHINA pump

KS-3T (iron)

Bolt puller

Introduction

KOSON bolt puller KS-3T (iron)Chinese iron hand pump, small hollow hydraulic cylinder, digital pressure gauge, high-pressure oil pipe with quick connector (2.5 meters), with options (anchors, conversion head rods) and portable carrying case, hydraulic cylinders for hollow self-centering, thisBolt pullerThe value display is an integrated multi-function display instrument with direct reading of tensile force values (kN) and automatic calculation, peak hold, storage and query functions, with backlit display.

Features

1. The weight of the whole machine is only 11kg;

2. The power supply is a high-capacity rechargeable lithium battery;

3. Peak point holding, automatic shutdown without operation, LCD lighting function;

4. The numerical value is corrected by 10 segments of polyline to improve the accuracy of the instrument;

5. Imported sealing ring, durable;

6. Automatic spring return, simple structure;

7. Ultra-low power consumption design, continuous working time can exceed 200 hours;

8. The surface of the hydraulic cylinder is corrosion-resistant electrostatic spraying, nickel-plated piston and sliding sleeve.

Application

KS-3T (iron) bolt puller is mainly used for testing, fine steel bars, expansion bolts, chemical anchors, anchor pull-out force of instruments and equipment, can also be used for glass curtain wall on-site pull-out force testing (test), is the quality inspection unit. Reinforcement units, supervision units, universities, etc.).

Meets standards

GB50367-2006 Code for Design of Reinforcement of Concrete Structures

JGJ145-2013 Technical specification for post-anchoring of concrete structures

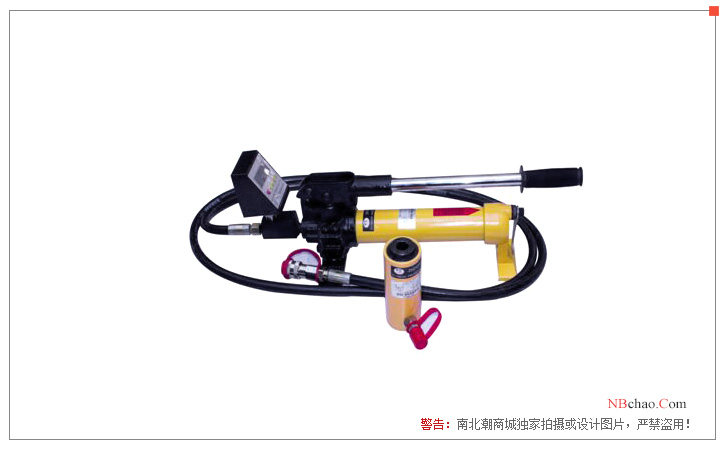

Product display diagram

Packing list：host x1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
