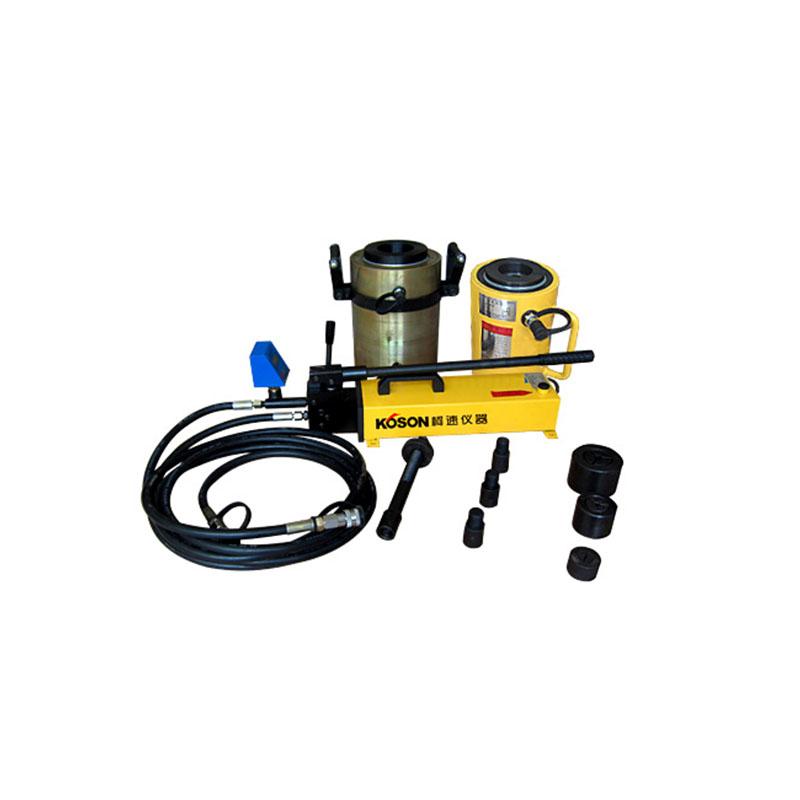

Kosu KS-20T (iron) Bolt TensIon Meter measuring range 0~200KN CHINA pump

KS-20T (Iron)

Anchor puller

Instrument Introduction

KOSON KS-20T (iron) Bolt Tension Gauge is composed of a manual pump, a hollow hydraulic cylinder, a digital display pressure gauge, a high-pressure oil pipe with a quick connector (3 meters), and accessories (anchor, conversion joint, pull rod) Composed of a portable portable box, the 10T-30T ton hydraulic cylinder is a hollow self-resetting type, and the 50T-100T ton hydraulic cylinder is a manual reset type (electric pump can be equipped). The function display instrument adopts the sensor imported from Switzerland with high sensitivity and accurate value, which can directly read the tension value (kN) and has automatic calculation, peak hold, storage and query functions, with backlight display, hollow hydraulic cylinder with dust-proof system and imported seal Ring, long service life, especially suitable for laboratory and field use, easy to operate, easy to learn and use.

KOSON KS-20T (iron) Bolt Tension GaugeIs the use of domestic (CN) iron pumps.

Features

1. The digital display meter adopts sensors imported from Switzerland, and the measurement accuracy is 1% FS;

2. 500 pieces of data recording, query, LCD lighting functions;

3. Peak hold, no operation automatic shutdown;

4. Numerical 10-segment broken line correction to improve the accuracy of the instrument;

5. The power supply mode is 3 AAA batteries, ultra-low power consumption design, and the continuous working time can exceed 200 hours;

6. Imported sealing ring, durable, automatic spring reset, simple structure;

7. Corrosion-resistant electrostatic spraying on the surface of the hydraulic cylinder, nickel-plated piston and sliding sleeve;

8. The hollow part is equipped with a dust cover, overload protection, and a fast oil-leakage joint.

Application

KOSON KS-20T (iron) Anchor TensIon Meter is suitable for testing the pull-out resistance of various anchors, anchor cables, steel bars, planting bars, expansion bolts, chemical anchors, railway spikes, and various anchors. The equipment can also be used for on-site pullout resistance testing (testing) of glass curtain walls. It is a testing instrument required by various (quality inspection units, reinforcement units, supervision units, universities, coal mines, etc.).

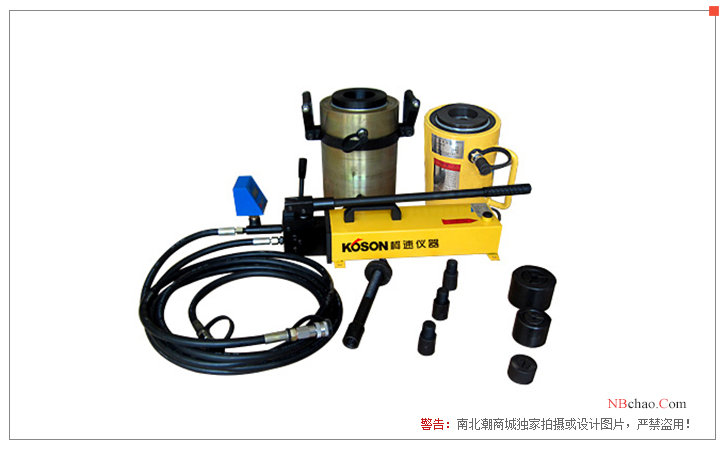

Pictures

Standards

· GB50367-2006 "Code for Design of Reinforcement of Concrete Structures"

· GB50330-2013 "Technical Code for Building Slope Engineering"

· JGJ120-2012 "Technical Regulations for Building Foundation Pit Support"

· CECS22:2005 "Technical Regulations for Rock and Soil Bolt (Cable)"

· GB50007-2011 "Code for Design of Building Foundations"

· CECS22:99 "Code for Design and Construction of Anchor Rods in Soil Layer"

· JGJ145-2013 "Technical Regulations for Post Anchorage of Concrete Structures"

Specifications of commonly used accessories for bolt puller (this is an optional accessory)

Packing list： host x1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
