KOSON KS-100T (iron) bolt puller Measurement range 0~1000KN CHINA pump

KS-100T (Iron)

Bolt puller

Maximum pressure 0-1000KN, error of indication ≤ +/- 1% F.S, resolution 0.1KN, using imported Sensor sensitivity high, accurate numerical value can be directly read tensile value (kN) and automatic calculation, peak holding, storage and query functions, long service life, especially suitable for laboratory and field use, simple operation, easy to learn and use.

Instrument Introduction

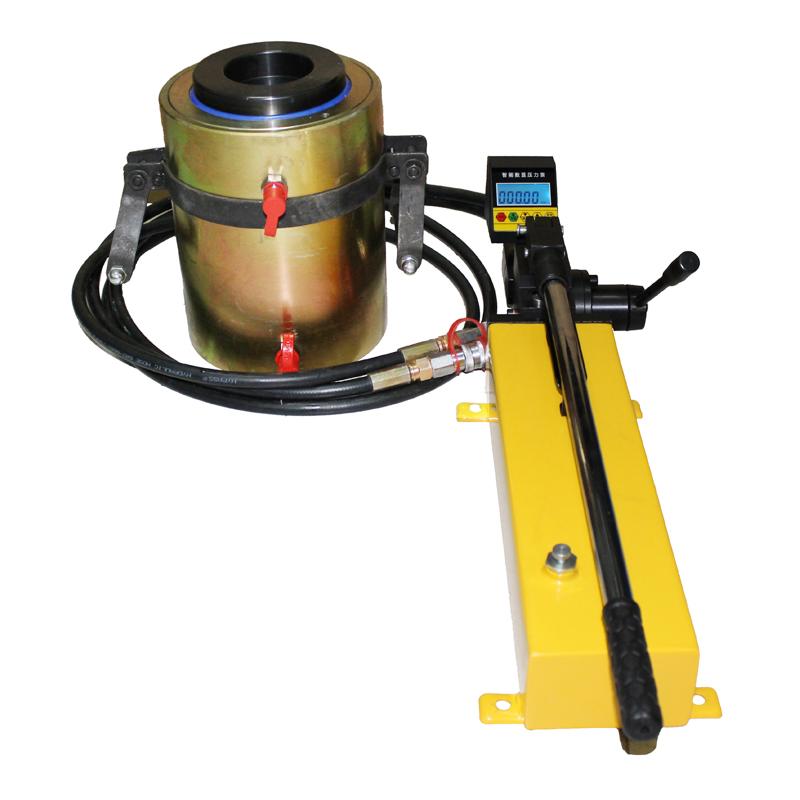

KOSON KS-100T (iron) bolt puller is composed of a hand pump, a hollow hydraulic cylinder, a digital pressure gauge, a high-pressure oil pipe with a quick connector (3 meters), accessories (anchors, adapters, tie rods) and a portable carrying case, 10T~30T tons of hydraulic cylinders for hollow self-centering, 50T~100T tons of hydraulic cylinders for manual reset (can be equipped with electric pumps), thisBolt pullerThe numerical display part is an integrated multi-function display instrument, which adopts Swiss imported sensors, high sensitivity, accurate values, can directly read the tensile force value (kN) and has automatic calculation, peak holding, storage and query functions, with backlight display, hollow hydraulic cylinder plus dustproof system and imported sealing ring, long service life, especially suitable for laboratory and field use, simple operation, easy to learn and use.

KOSON KS-100T (iron) bolt pullerIt is a domestic (CN) iron pump.

Features

1. The digital display table adopts a sensor imported from Switzerland, with a measurement accuracy of 1% F.S;

2. 500 pieces of data recording, query, LCD lighting function;

3. Peak value holding, automatic shutdown without operation;

4. The numerical 10-segment polyline is corrected to improve the accuracy of the instrument;

5. Power supply mode: 3 No. 5 batteries, ultra-low power consumption design, continuous working time can exceed 200 hours;

6. Imported sealing ring, durable, automatic spring return, simple structure;

7. The surface of the hydraulic cylinder is corrosion-resistant electrostatic spraying, nickel-plated piston and sliding sleeve;

8. The hollow part is equipped with a dust jacket, overload protection, and a quick anti-leakage joint.

Application

Ke SuKS-100T (Iron)The bolt puller is suitable for testing all kinds of anchors, anchor cables, steel bars, planting bars, expansion bolts, chemical anchors, railway studs, and various anchor pull-out force instruments and equipment, and can also be used for on-site pull-out force testing (test) of glass curtain wall, which is the testing instrument required by various (quality inspection units, reinforcement units, supervision units, universities, coal mines, etc.).

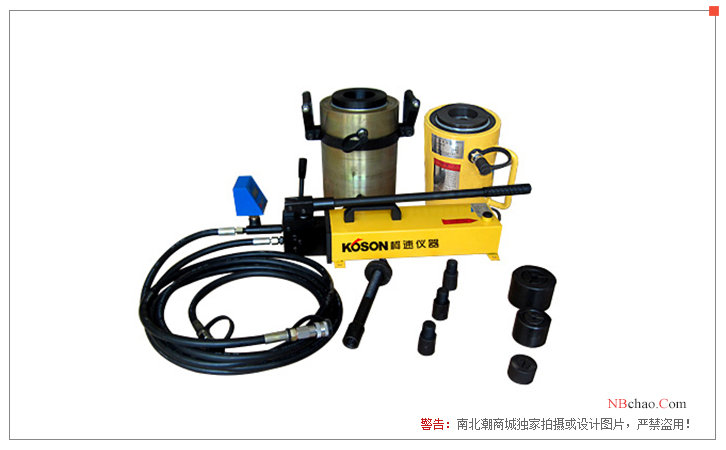

Product display diagram

Meets standards

· GB50367-2006 Code for Design of Reinforcement of Concrete Structures

· GB50330-2013 Technical Code for Building Slope Engineering

· JGJ120-2012 Technical Regulations for Building Foundation Pit Support

· CECS22:2005 Technical specification for geotechnical anchors (cables)

· GB50007-2011 Code for Design of Building Foundations

· CECS22:99 Code for Design and Construction of Soil Anchors

· JGJ145-2013

Specifications of common accessories for bolt puller (this is an option)

Packing list：host x1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
