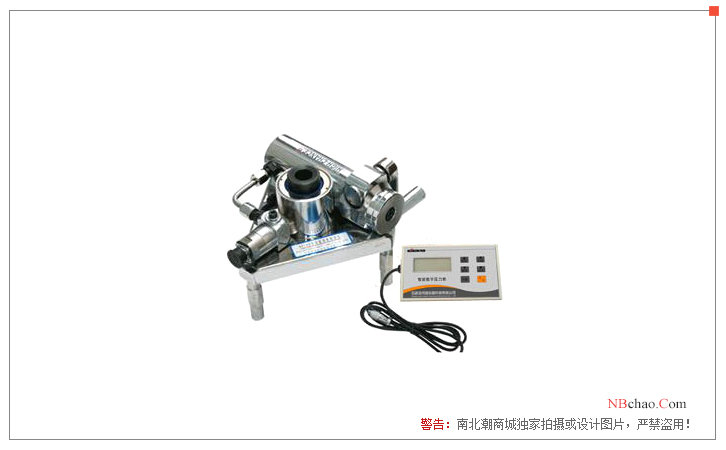

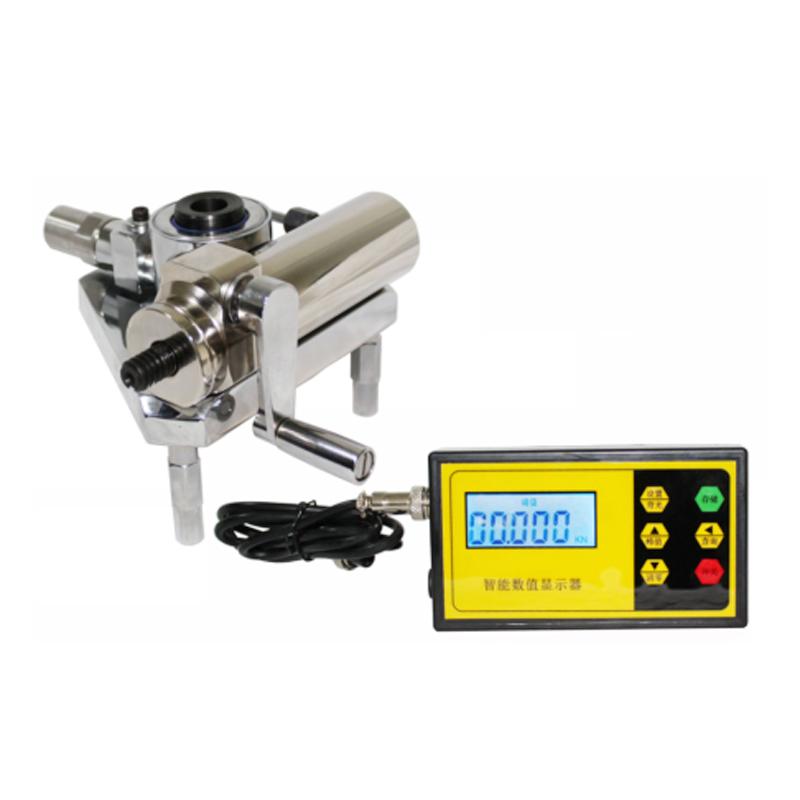

KOSON KS-40 Multifunctional Concrete Strength Tester, force range 0~40KN

KS-40

Concrete strength Tester

Display mode Mpa/KN adjustable, Measurement range 0-40KN, cylinder stroke 10mm, resolution 0.001 or 0.01, Measurement accuracy 2%, mainly used for construction concrete strength (C10~ C80) detection.

Introduction

KOSON KS-40 Concrete Strength Tester is a small hydraulic force measuring device with large pulling force. Novelty, small size, complete functions, etc. The oil pump of the Tester adopts manual pressurization mode, which has the characteristics of small driving torque, comfortable and reasonable shaking direction, continuous and uniform loading, etc. This product has been widely promoted in dozens of provinces, cities, and autonomous regions across the country. , has been widely used by quality inspection units in various regions.

Features

1. Lightweight alloy main body, built-in micro-hydraulic system, strong pulling force.

2. Equipped with a split digital display instrument, which can store 500 pieces of data

3. Setting menu, data can be recorded, inquired and deleted;

4. Numerical 10-segment broken line correction to improve the accuracy of the instrument;

5. Ultra-low power consumption design, automatic shutdown without operation for 6 hours, continuous working time can exceed 200 hours;

6. Two measurement modes of intensity Mpa and force value KN.

Standards

CEC CS69:94 "Technical Regulations for Testing Concrete Strength by After-installation Pull-out Method"

JGJ110-97 "Inspection Standard for Bonding Strength of Decorative Bricks in Construction Engineering"

JGJ126-2000 "External Wall Facing Brick Engineering Construction and Acceptance Regulations"

Application

KS-40 Concrete Strength Detector is mainly used for the detection of concrete strength (C10~C80) in construction engineering. The detection of concrete strength is based on the principle of after-installation pull-out method, and is calculated by measuring the force required to pull out the anchors placed in the concrete. Concrete strength; it can also detect the bonding strength of decorative bricks, mosaics, insulation boards, concrete, mortar, paint, coatings, glues, and small-sized chemical anchors, and pullout resistance Testers for threaded parts.

Pictures

Packing list：Host x1, digital display instrument X1, charger X1, aluminum alloy box X1, test block (95 * 45mm) X3, test block (40 * 40mm) X3, AB glue X1, concrete drawing accessories X1, electric groove grinder X1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
