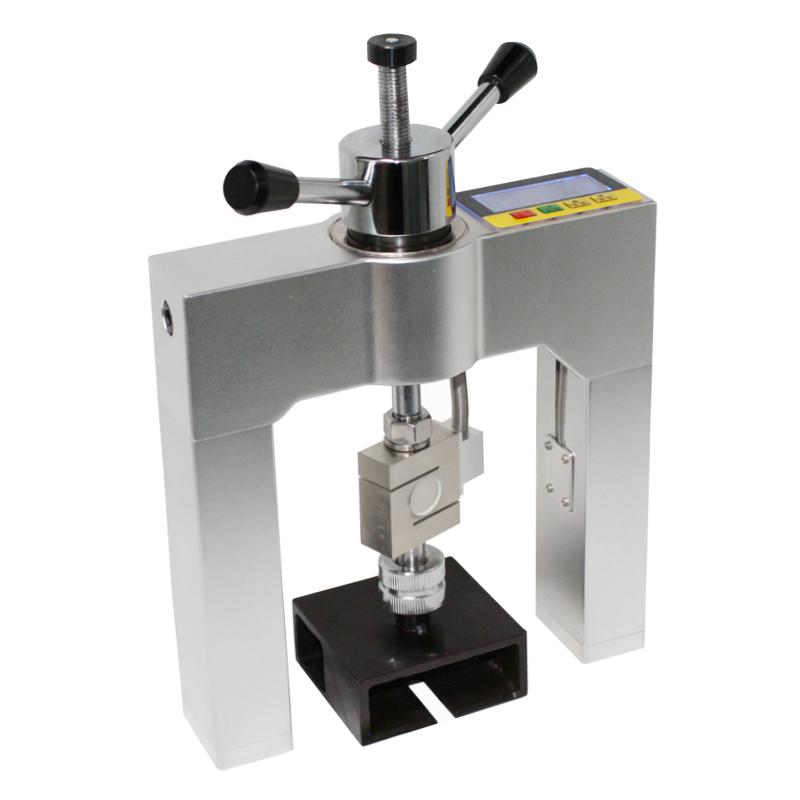

KSJM-5C High precision rivet insulation material Bond strength Tester

KSJM-5C

Bond strength Tester

Instrument Introduction

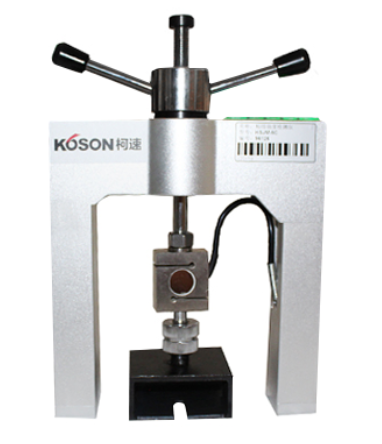

KOSON KSJM-5C high-precision rivet material bond strength Tester adopts S-type high-precision sensor and electromechanical integration design. The "door" is a structure, a digital display meter, which can directly read the tensile value (kN) and strength value (Mpa), with automatic calculation, peak hold, storage and query functions, especially suitable for laboratory and field use. The full set of Detectors has powerful functions , light weight, labor-saving and simple handle operation.

Features

1 Integrated design, light alloy body,

2. Equipped with built-in digital display instrument, using S-type high-precision sensor;

3. Setting menu, data can be recorded, inquired and deleted;

4. Ultra-low power consumption design, automatic shutdown without operation, continuous working time can exceed 200 hours;

5. Two measurement modes of intensity Mpa and force value KN.

Application

KOSON KSJM-5C bond strength Tester is suitable for the pull-out force of rivets of fixed heat insulation materials in construction projects, the bond strength of wall heat insulation materials, the adhesion of exterior wall facing bricks, various boards, paints, coatings and other materials. The detection of knot strength is the detection instrument required by various quality inspection units.

Standards

JGJ144-2004 "Technical Regulations for External Thermal Insulation Engineering of Exterior Walls"

JG158-2004 "Rubber powder polystyrene particle external wall insulation system"

JG149-2003 "Expanded Polystyrene Board Thin Plastering Exterior Wall External Thermal Insulation System"

JGJ110-2008 "Inspection Standard for Bonding Strength of Decorative Bricks in Construction Engineering"

JGJ126-2000 "External Wall Facing Brick Engineering Construction and Acceptance Regulations"

Pictures

Packing list：Host x1, charger X1, USB charging cable X1, test block (40 * 40mm) X3, test block (100 * 100mm) X3, rivet pulling head (1 each of 6/8/10mm) X1, portable instrument case X1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
