JINLONG 45μm wire rod
The Wire diameter of the JINLONG 45 μm wire rod is 0.5 μm.
Model：
JinLong 45μm Wire rodSPEC
JinLong 45μm Wire rodDetails
JinLong 45μm Wire rodPacking list
- SKU
- NB000958
- Production process
- Wire-wound
- WFT
- 45μm
- diameter
- 10mm
- Total length
- 400mm
- Application width
- 300mm
- grip width
- 50+50mm
- material
- stainless steel
45μm
Wire rod
Introduction

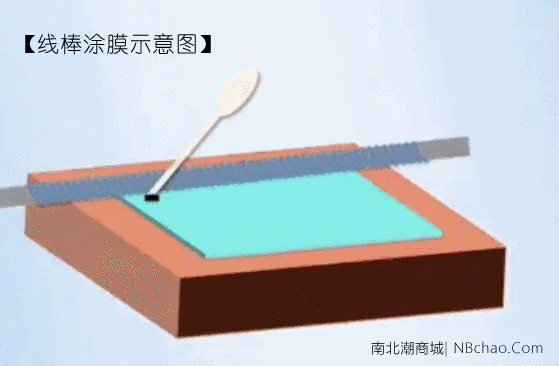

The diameter of the steel wire of Jinlong Machinery 45μm wire rod is 0.5μm, the thickness of the wet film that can be prepared is 45 microns, and the surface contains chrome plating, which can prevent the steel rod from rusting, and is suitable for high abrasion experiment preparation sample.
Parameters

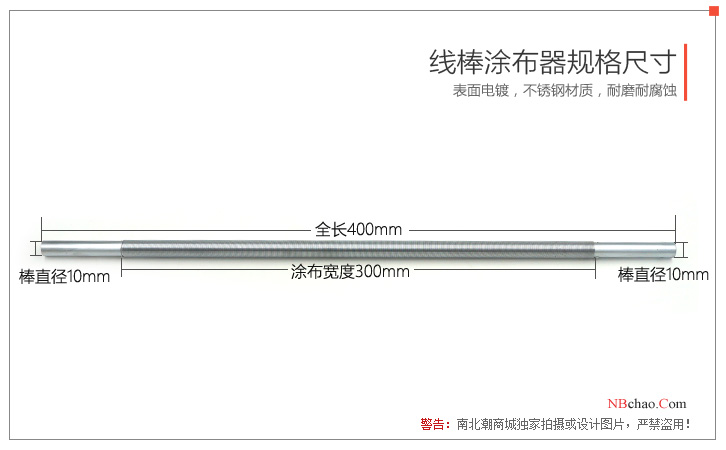

| Model | Wire diameter (mm) | Wet film thickness (μm) | Length (mm) | Diameter (mm) | remark |
| 45μm | 0.5 | 45 | 400 | 10 | Electroplated included |

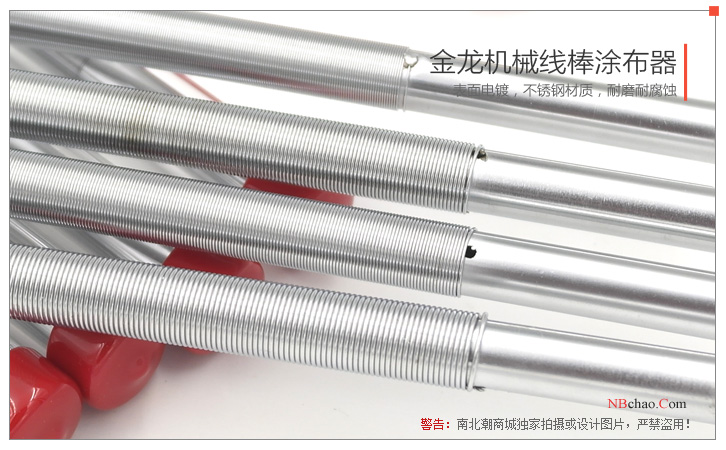

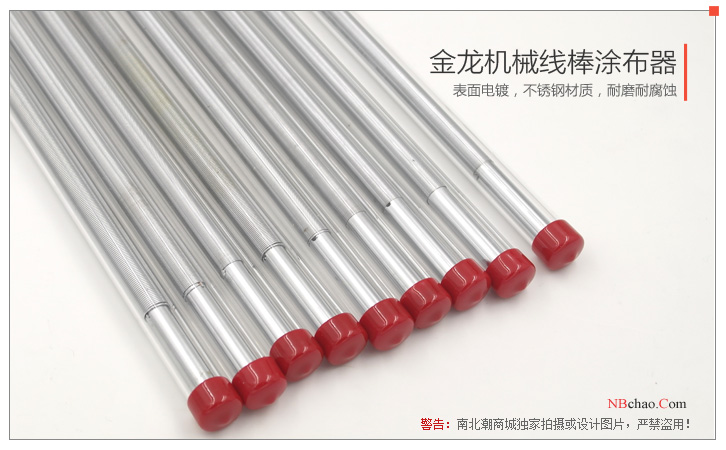

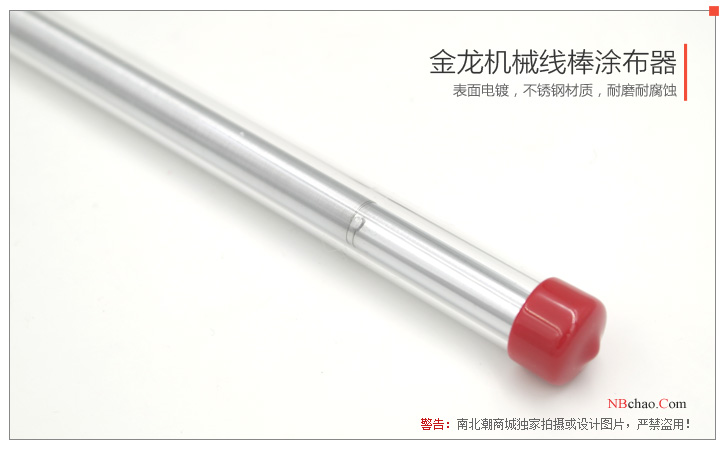

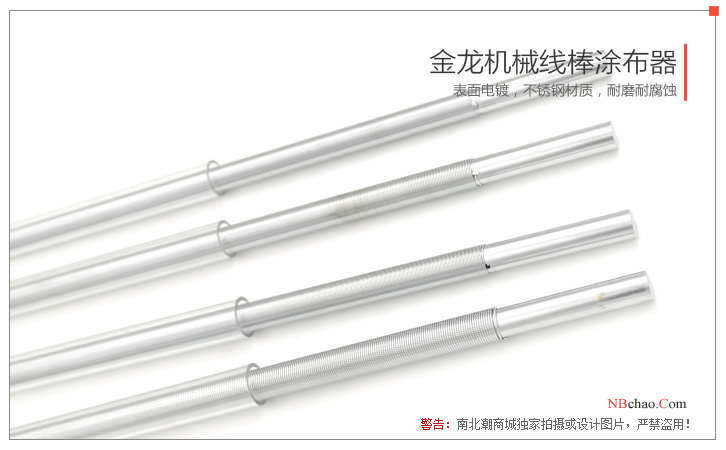

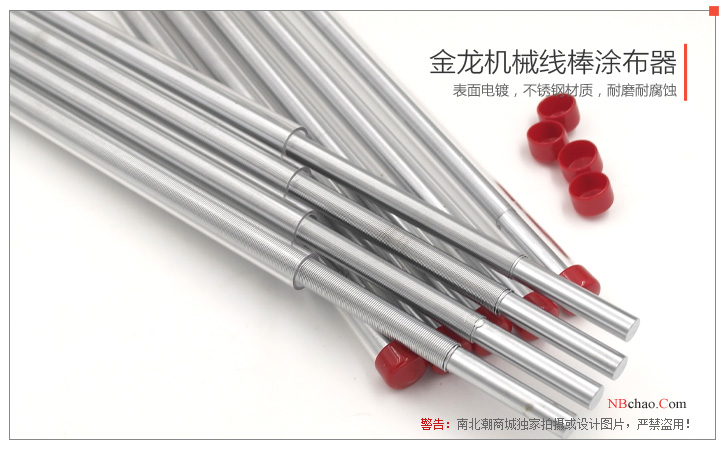

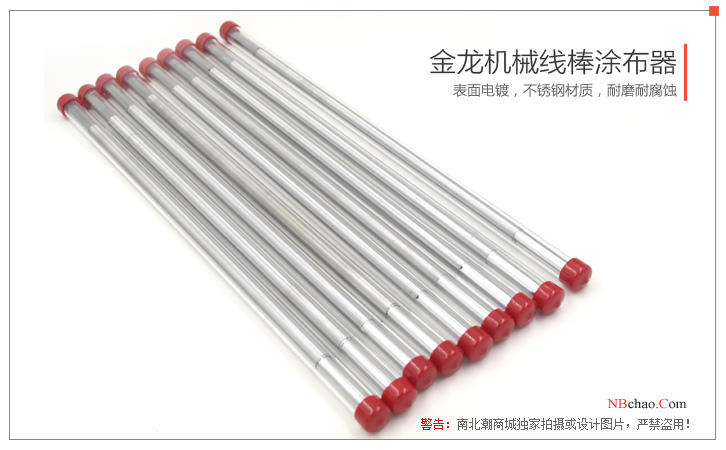

Actual picture of the product
Optional
|
|
|
FAQ
QMy percent solids are 32 percent, and I want to apply Dry-Film 14 microns. Can this bar do it?
A
Sure
