JINGKELIAN QFZ Adhesion Tester Drawing Diameter 0~ 10.5mm

QFZ

Adhesion Tester

Draw the diameter of the graphics, working stroke ≥ 80mm, weight weight 100g, 500g, 200g, 200g, the effective area of the table is 100 * 50mm, the rotary needle adopts 808 grade singing needle, which can be easily replaced, and can be used less than 5 times.

Introduction

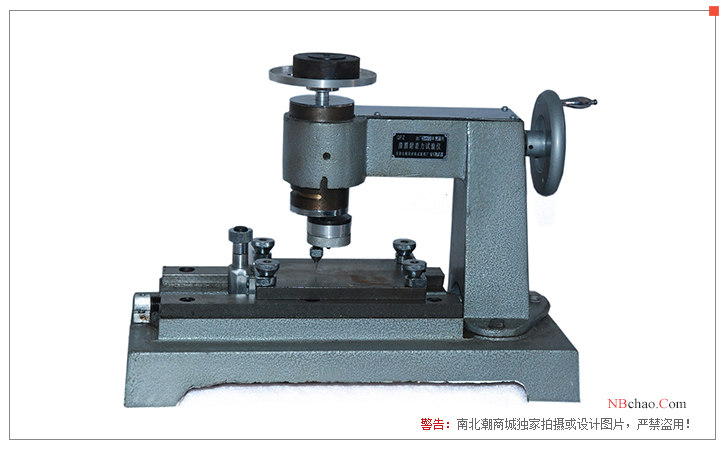

JinKeLian QFZ Paint Film Adhesion Tester is used to measure the adhesion of various coating films to the surface of the object to be coated.

Structural principle

1. The main transmission part is composed of a hand wheel, a sprocket, and a helical helical gear. When the hand wheel is turned, the worktable moves left and right, and the needle is drawing a circle at the same time.

2. The drawing head is composed of the following two components.

A. The double-headed square screw is used to adjust the machine head up and down.

B. The drawing diameter is adjusted by connecting the lower dovetail plate with a sliding dovetail and a screw that can drive the hand tracing needle.

3. The workbench is equipped with a movable half nut connected to the lead screw at one end to drive the workbench to move back and forth. There are four nuts and two pressure plates on the workbench for pressing and releasing the test piece.

4. The base part is used to support the workbench and tracing head, etc.

Pictures

Packing list：host x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
