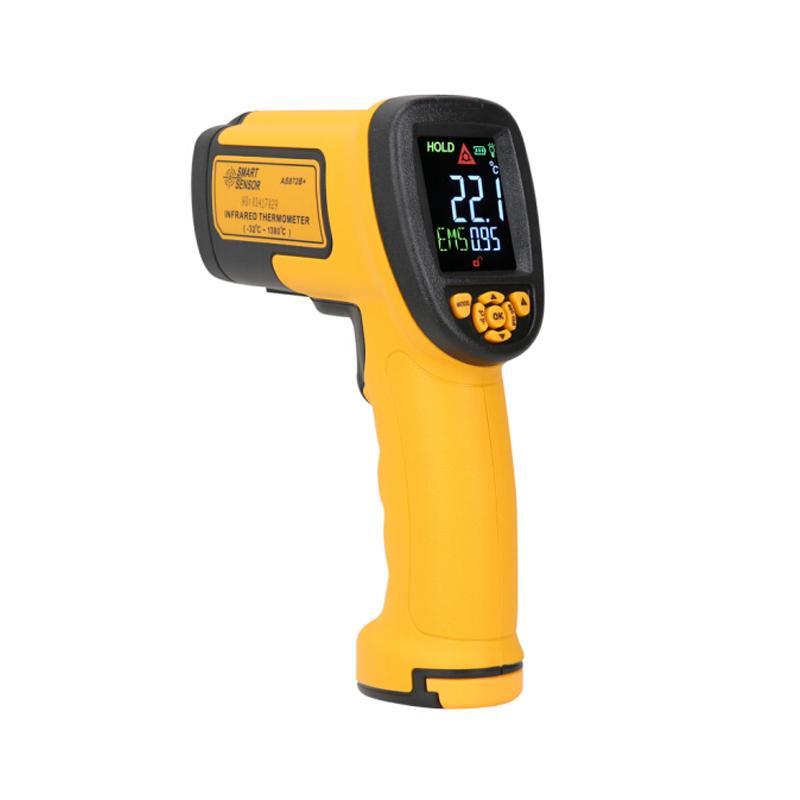

SMART SENSOR smart sensor AS872 Infrared Thermometer Optical inspection thermometer -18 ℃~ 1350 ℃

AS872

High Temperature Infrared Thermometer

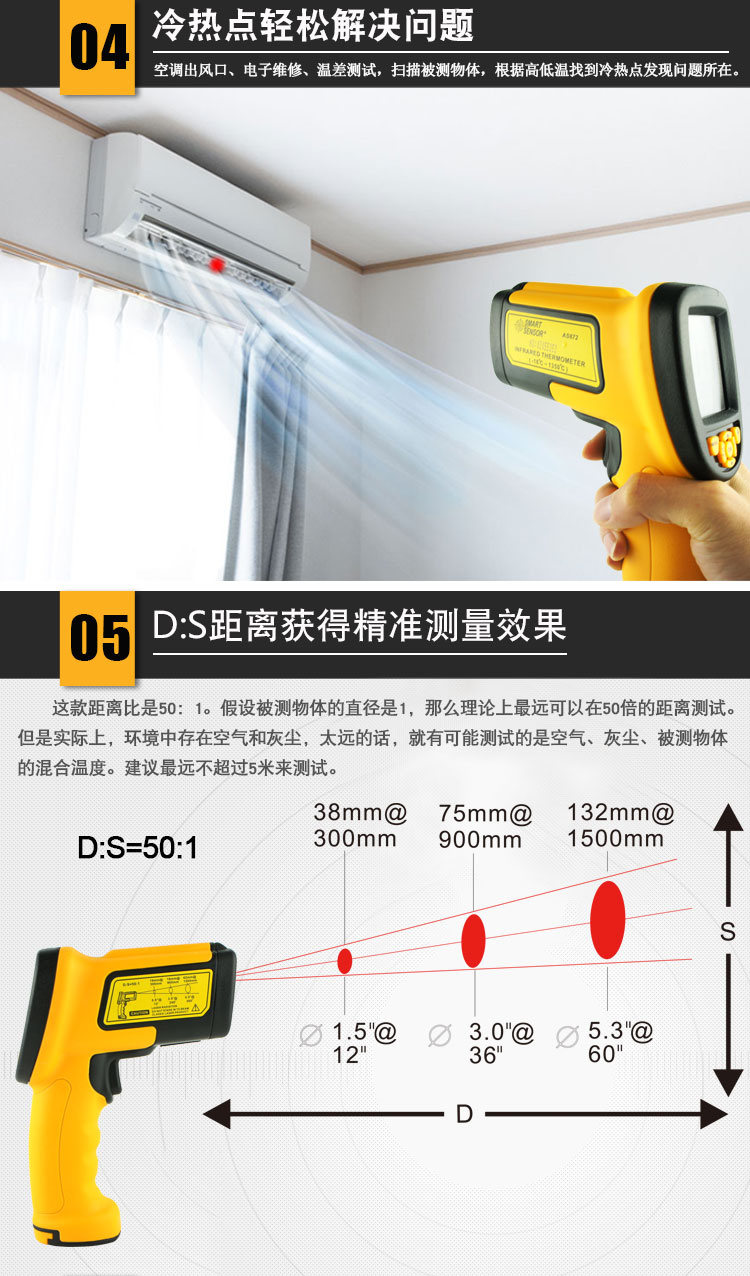

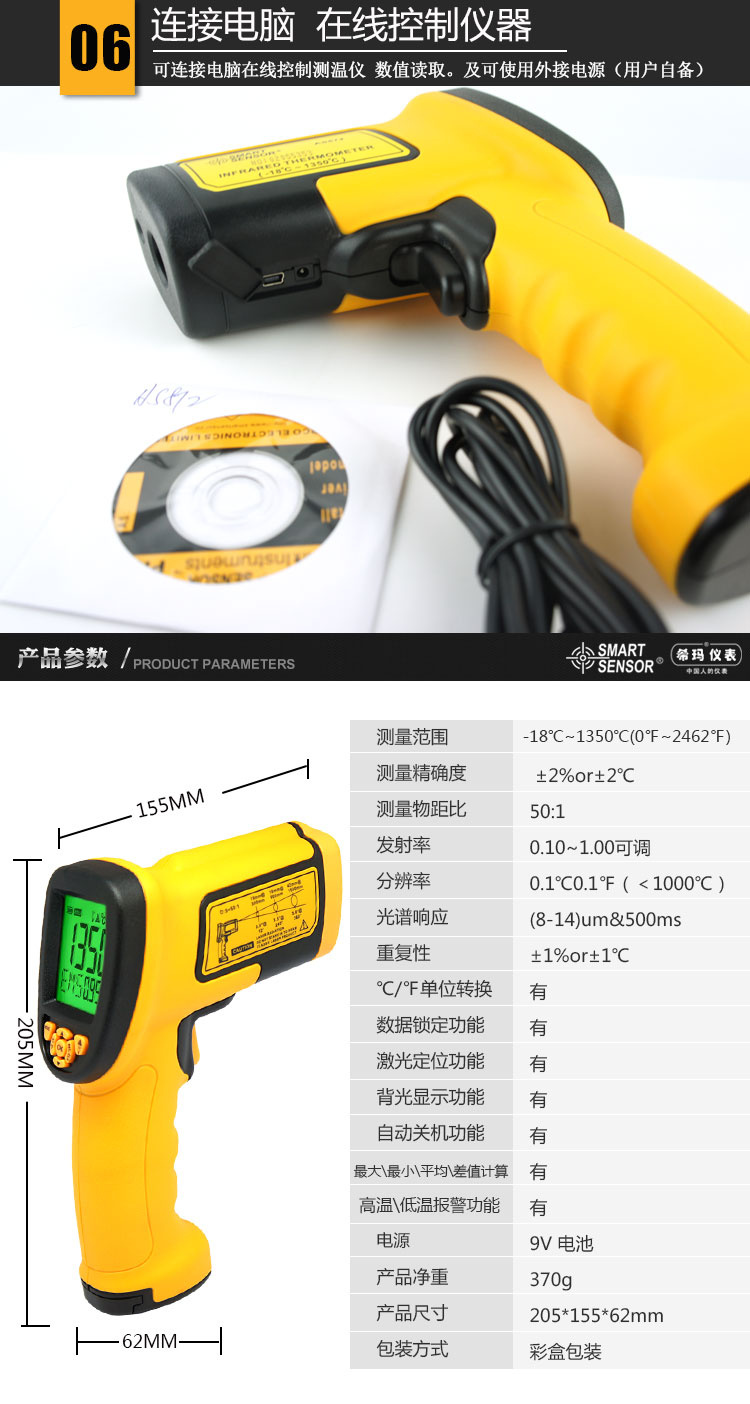

-18~ 1350 ℃, Accuracy +/- 2%, resolution 0.1 ℃, sexual repeability +/- 1 ℃| +/- 1%, object distance ratio 20:1, emissivity 0.10~1.00, response time 500ms, power supply 9V battery

I. Overview

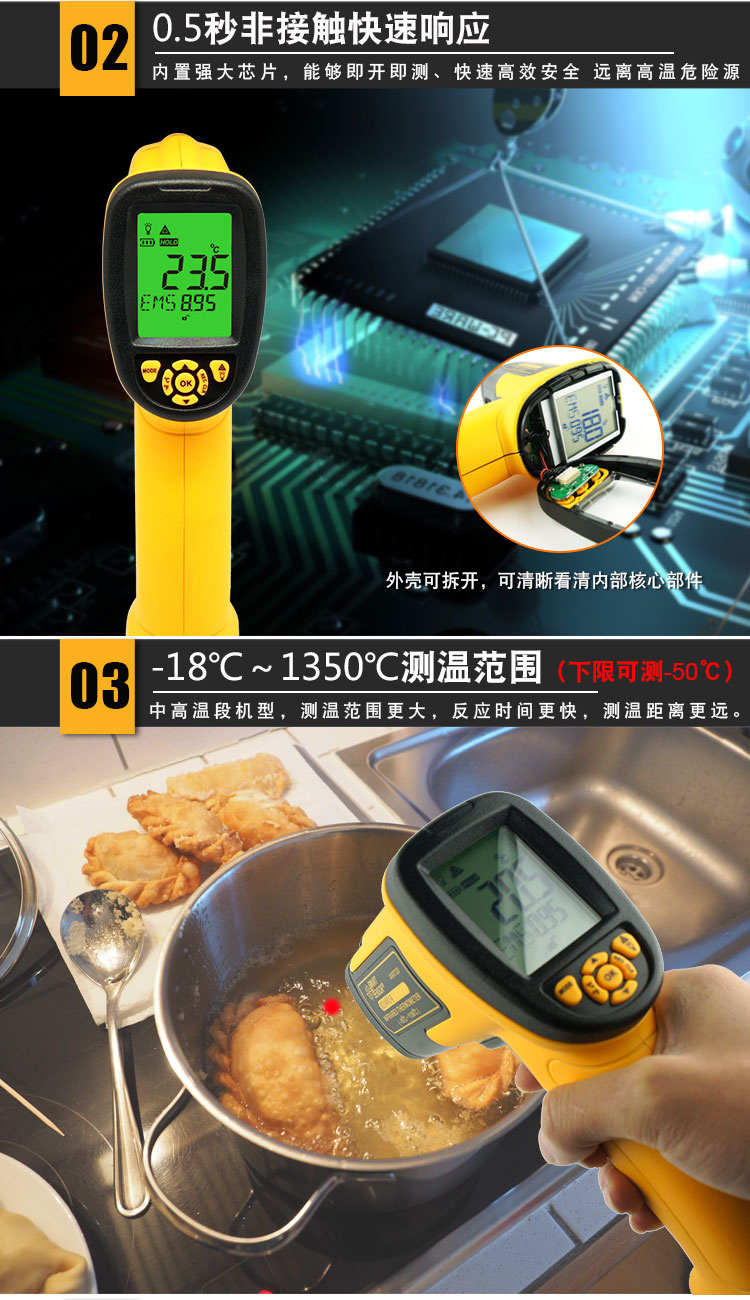

 This product is compact in structure, fashionable in style, accurate in reading, anti-interference and easy to operate. As long as you aim, turn on the device and press the measurement button, the product can read the current surface temperature of the measured object within one second. For high-temperature, toxic or difficult-to-reach objects, this product can be used for safe and accurate measurement.

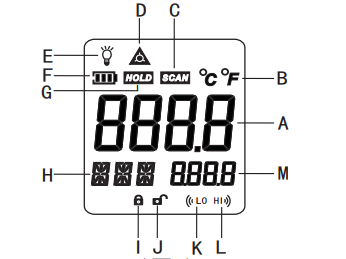

A temperature measurement reading

B temperature unit symbol

C read data symbols

D laser on symbol

E backlight on symbol

F battery indicator symbol

G data hold symbol

H mode display symbol

I Lockout status symbol

J Unlocked status symbol

K Low temperature warning symbol

L High temperature warning symbol

M mode variable symbol

2. Principle

 The infrared thermometer is an instrument for measuring the surface temperature of an object. It uses a light sensor to receive the infrared spectrum emitted by the object to be measured, collects and focuses it, and then converts the signal into a reading by other circuits and displays it.

When using this product, please pay attention to avoid using it in the following places:

 EMF places (electromagnetic places): such as arc welding machines, induction heaters, etc.;

 Thermal shock caused by drastic changes in ambient temperature, if this is the case, you need to wait for 30 minutes before using it;

Warning:

Do not point this product directly into the eye or indirectly through reflective surfaces.

Do not place this product in a high temperature place;

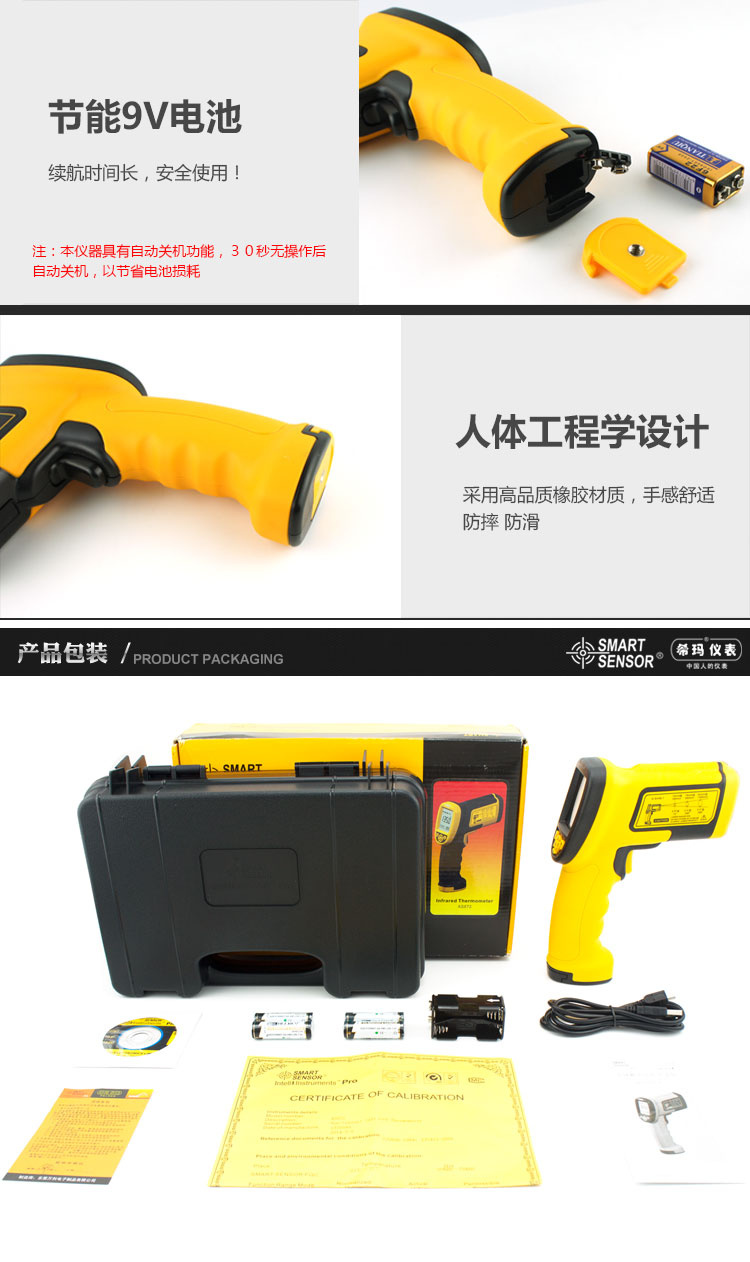

Packing list：Thermometer X1, original battery X1, factory certificate X1, warranty card X1, manual X1, portable toolbox x1, CD x1, data cable x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
