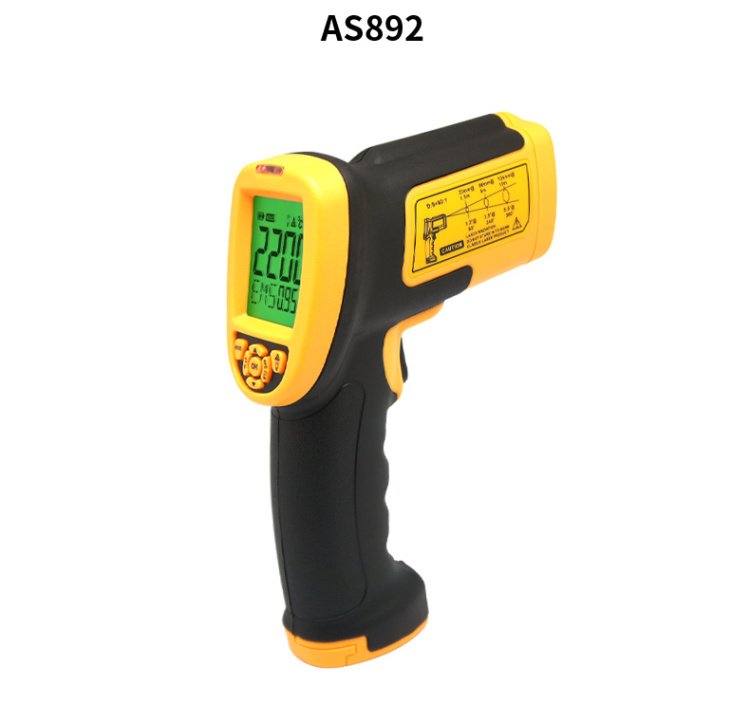

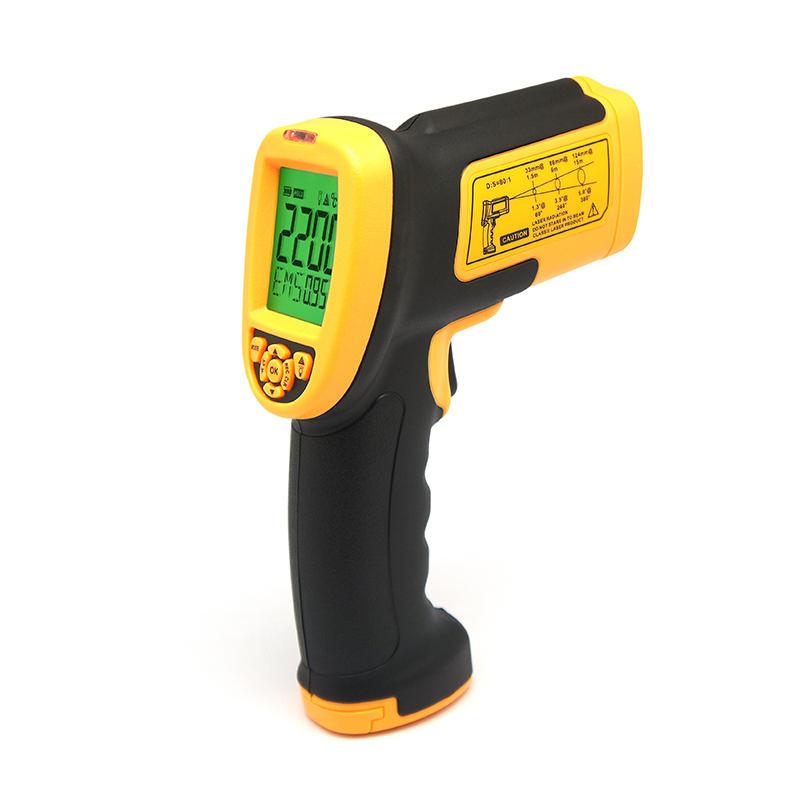

SMART SENSOR smart sensor AS892 Infrared Thermometer temperature range 200 ℃~ 2200 ℃

AS892

Shortwave Infrared Thermometer

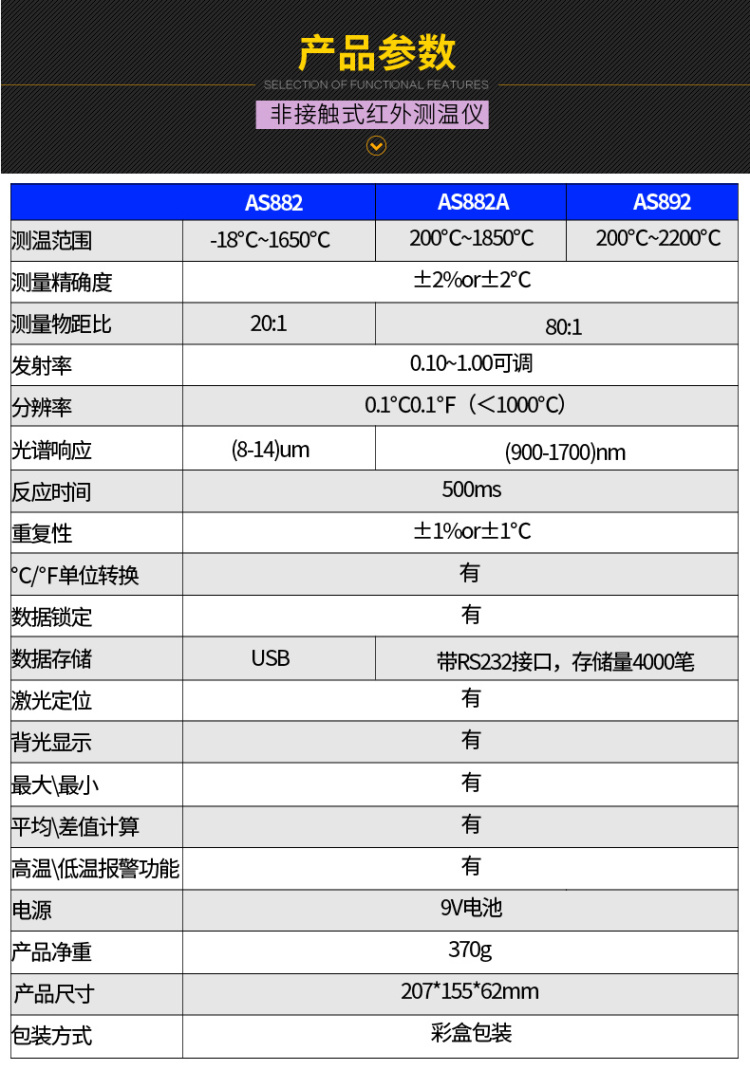

Temperature range 200~2200 ℃, Accuracy +/- 2%, resolution 0.1 ℃, sexual repeability +/- 1 ℃| +/- 1%, object distance ratio 80:1, emissivity 0.10~1.00, response time 500ms

Principle

The infrared thermometer is an instrument for measuring the surface temperature of an object. It uses a light sensor to receive the infrared spectrum emitted by the object to be measured, collects and focuses it, and then converts the signal into a reading by other circuits and displays it.

Function

1. Laser positioning

2. Backlight function

3. High-low temperature alarm settings

4. Maximum, minimum, temperature difference, average temperature display

5. Adjustable emissivity

6. Power display

7. Conversion of metric and imperial units

8. Data hold function

9. Temperature data acquisition and analysis

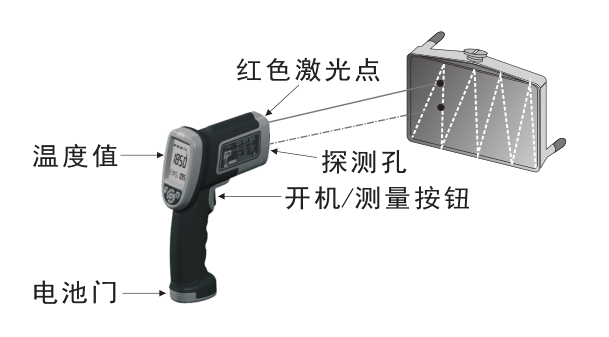

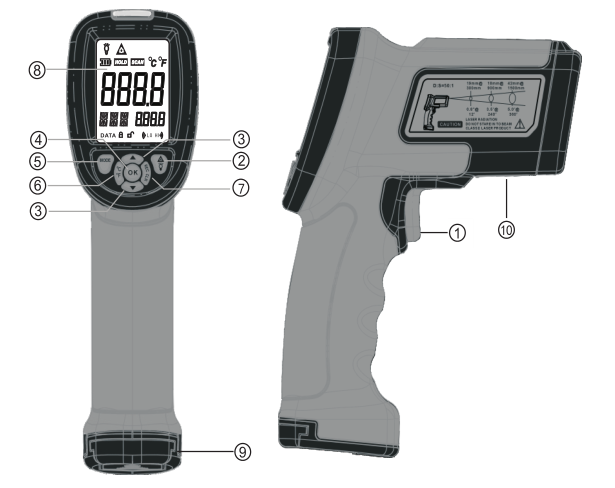

product structure

①Start/measure button

②Backlight and laser light switch key

③Parameter selection key

④ Setting confirmation key

⑤ Mode switch key

⑥Celsius and Fahrenheit conversion key

⑦Data storage/deletion key

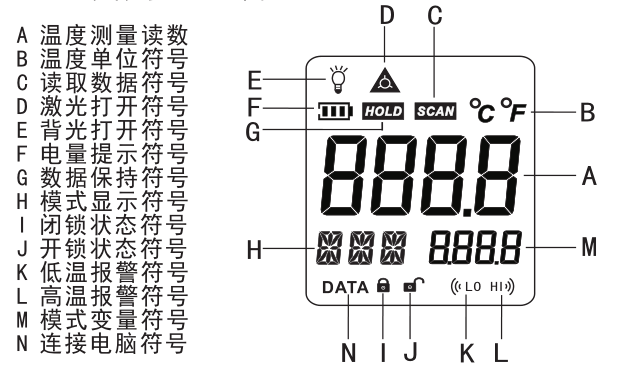

⑧ LCD display

⑨Battery door

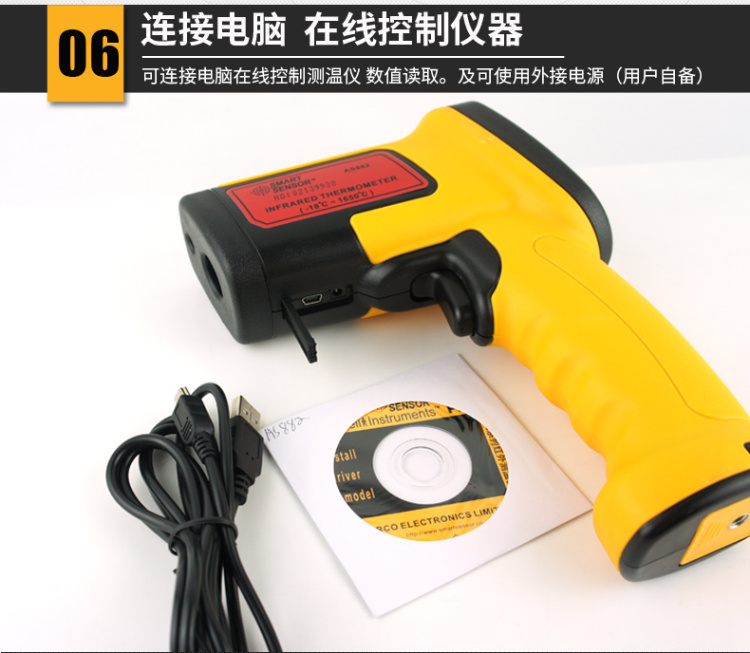

⑩USB data connection port

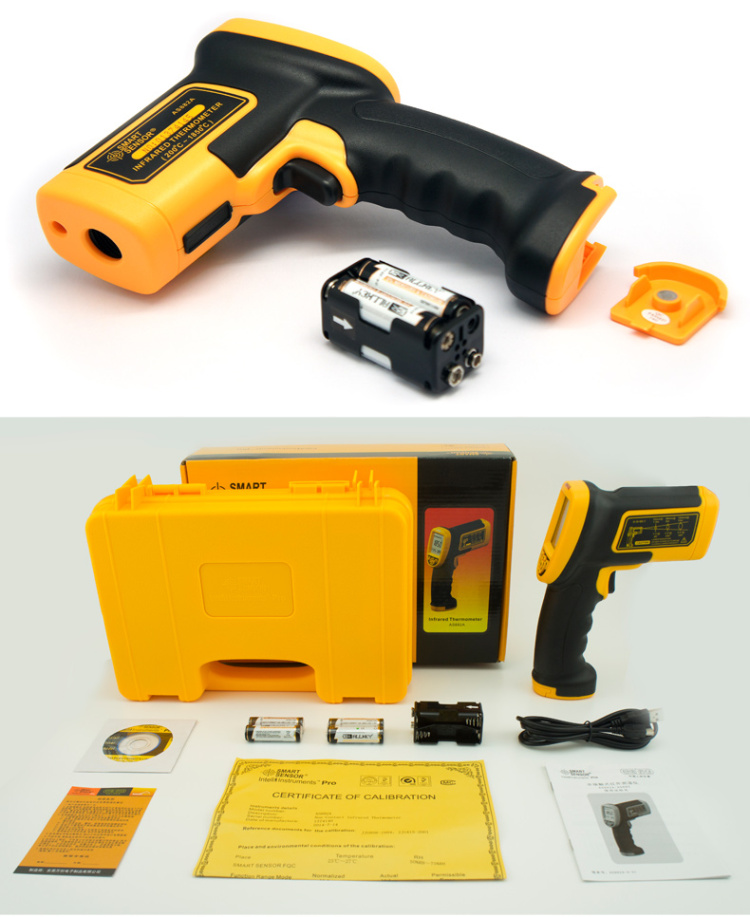

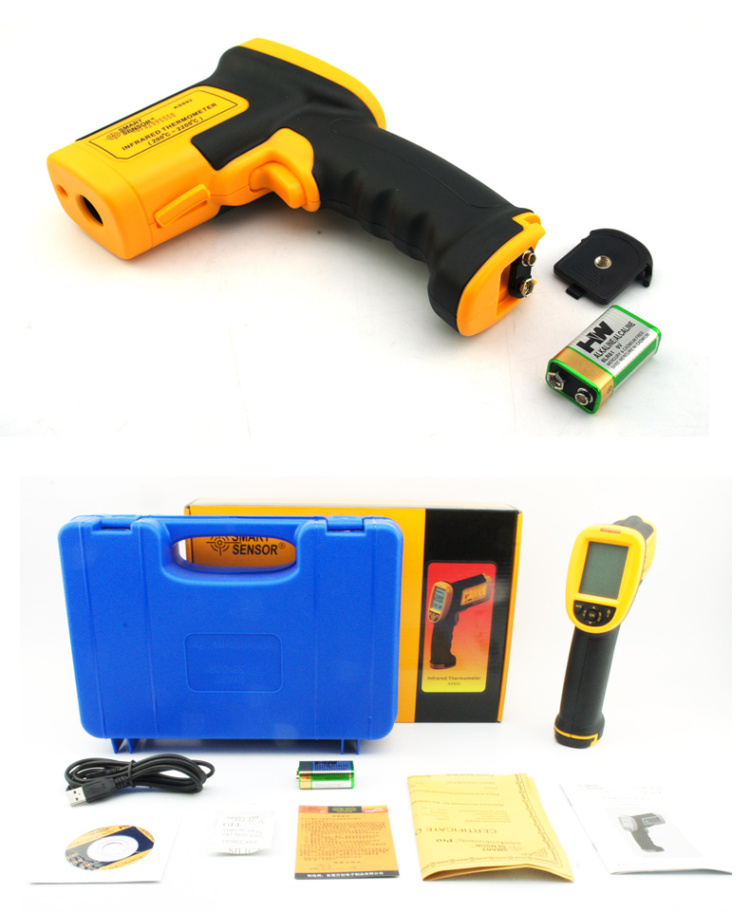

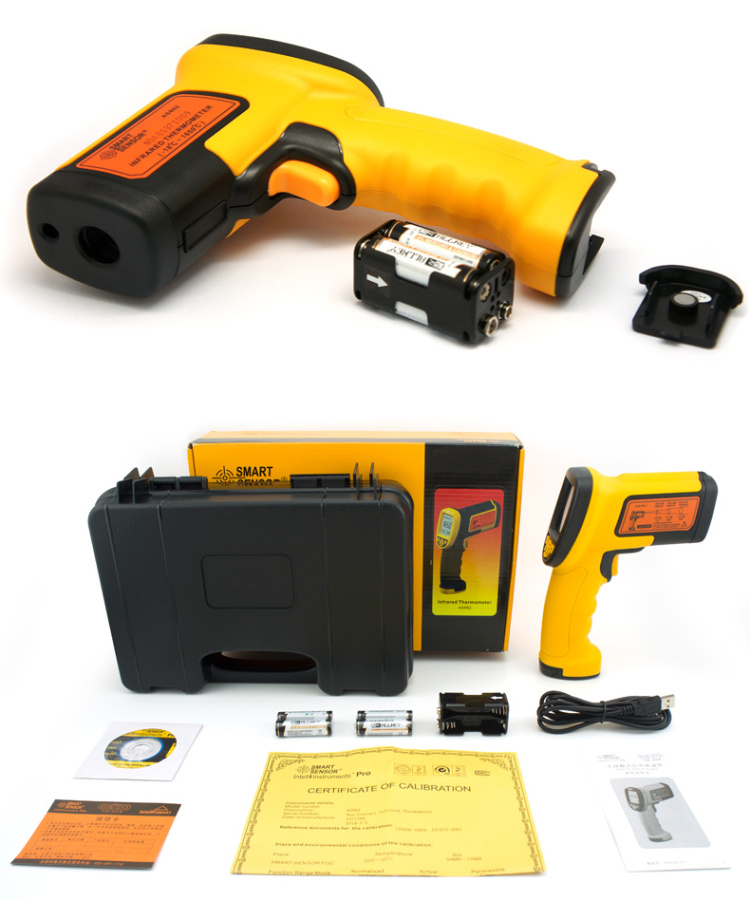

Packing list：Thermometer X1, original battery X1, factory certificate X1, warranty card X1, manual X1, portable toolbox x1, CD x1, RS232 data cable x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
