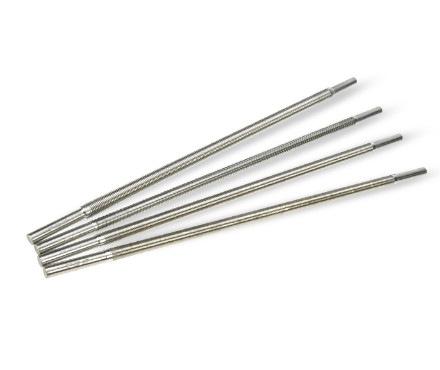

TQC AB3050 wire rod Film Applicator application width 320mm WFT 4μm
The Dutch TQC wire rod Film Applicator AB3050 is a wire-wound stainless steel Mayer Rods with a preparatory 4 μm wet film thickness. The application width of AB3050 is 320mm.
Model：
TQC sheen AB3050 Mayer RodsSPEC
TQC sheen AB3050 Mayer RodsDetails
TQC sheen AB3050 Mayer RodsPacking list
- SKU
- NB009819
- Production process
- Wire-wound
- WFT
- 4µm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60+60mm
- material
- stainless steel
AB3050
Mayer Rods
Introduction
The coating width of the Dutch TQC wire wound wire Bar Coater is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. The TQC wire bar applicator is made of stainless steel, which has good acid and alkali resistance. The wire rod applicator can be used in conjunction with the automatic coating machine.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QThe solid content of the product is 32%, and the dry-film thickness after scraping should be 1 micron. Can this film applicator?
A
Sure
