TQC AB3051 Mayer Rods 6μm WFT application width 320mm
The Dutch TQC Mayer Rods AB3051 Spreader has a wet film thickness of 6μm and is a wire-wound Film Applicator. The application width of AB3051 Mayer Rods is 320mm.
Model：
TQC sheen AB3051 Mayer RodsSPEC
TQC sheen AB3051 Mayer RodsDetails
TQC sheen AB3051 Mayer RodsPacking list
- SKU
- NB009820
- Production process
- Wire-wound
- WFT
- 6μm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60mm
- material
- stainless steel
AB3051
Mayer Rods
Introduction

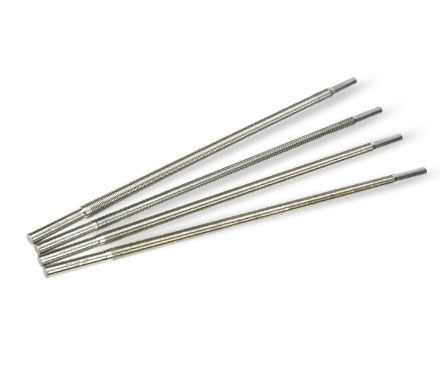

The coating width of the Dutch TQC wire wound wire Bar Coater is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. The TQC wire bar applicator is made of stainless steel, which has good acid and alkali resistance. The wire rod applicator can be used in conjunction with the automatic coating machine.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QThe solid content is about 18%. I want to make Dry-Film 1 micron. Is this model suitable?
A
suitable
QCan silicone coatings be applied to quartz Glass substrates?
A
Yes, choose quartz Glass as the substrate, with Mayer Rods Coating prepared above coated on the surface of the treated quartz Glass substrate, at room temperature to evaporate the solvent into the oven, at a certain temperature curing film formation.
