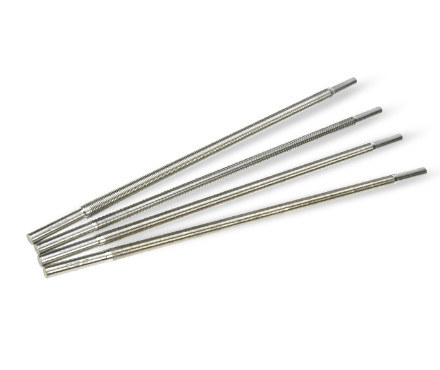

TQC AB3052 Coating bar 8μm WFT application width 320mm
The Spreader wet film thickness of AB3052 Coating bar in the Netherlands is 8μm, and the Total length of the rod is 440mm, of which the two ends are 60mm each. AB3052 Coating bar, also known as scratch coating bar, is suitable for laboratory Moulding proofing.
Model：
TQC sheen AB3052 Mayer RodsSPEC
TQC sheen AB3052 Mayer RodsDetails
TQC sheen AB3052 Mayer RodsPacking list
- SKU
- NB009821
- Production process
- Wire-wound
- WFT
- 8μm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60+60mm
- material
- stainless steel
AB3052
Mayer Rods
Introduction
The coating width of the Dutch TQC filament wound coating scraper is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. TQC coating rod is made of stainless steel, which has good acid and alkali resistance. The coating rod can be used in conjunction with an automatic coater.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QSolid content 38%, expected to make Dry-Film 3 microns, this stick number can?
A
Sure
