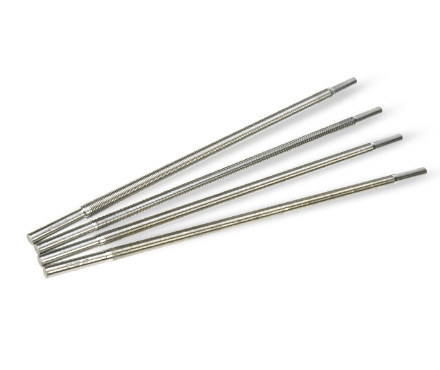

TQC AB3053 inks coating bar 10μm WFT Total length 440mm
The Dutch TQC inks coating bar AB3053 is a stainless steel wire-wound drawdown Bar with good acid and alkaline resistance. The AB3053 inks coating bar can be prepared with a wet film thickness of 10 μm.
Model：
TQC sheen AB3053 Mayer RodsSPEC
TQC sheen AB3053 Mayer RodsDetails
TQC sheen AB3053 Mayer RodsPacking list
- SKU
- NB009822
- Production process
- Wire-wound
- WFT
- 10μm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60+60mm
- material
- stainless steel
AB3053
Mayer Rods
Introduction
The coating width of the Dutch TQC filament wound ink scraper is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. TQC ink squeegee is made of stainless steel, which has good acid and alkali resistance. Ink squeegee can be used with automatic coaters.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QIs it feasible to prepare PTFE/PP composite diaphragm with Mayer-Rod?
A
Yes, by diluting to a reasonable PTFE emulsion, Stir a suitable binder uniformly, a single-layer film is prepared on the PP film, and after the composite diaphragm is initially dried, it is placed in a 60 ° C constant temperature bellows for drying, and the solvent evaporates. It is worth PTFE/PP composite diaphragm.
QThe solid content of the product is 48%, and the dry-film thickness after scraping should be 5 microns. Can this film applicator?
A
Sure
