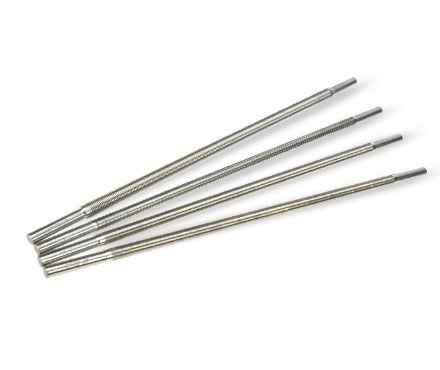

TQC AB3054 paints coating bar 12μm WFT Total length 440mm
The film thickness of the Dutch TQC paints coating bar AB3054 is 12 μm, using corrosion-resistant stainless steel material, AB3054 paints coating bar is imported from the Netherlands, and the width of the Spreader is 320mm.
Model：
TQC sheen AB3054 Mayer RodsSPEC
TQC sheen AB3054 Mayer RodsDetails
TQC sheen AB3054 Mayer RodsPacking list
- SKU
- NB009823
- Production process
- Wire-wound
- WFT
- 12μm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60+60mm
- material
- stainless steel
AB3054
Mayer Rods
Introduction
The coating width of the Dutch TQC filament wound paint scraper is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. TQC paint scraper is made of stainless steel, which has good acid and alkali resistance. Paint scrapers can be used in conjunction with automatic coaters.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QSolid content of sample 34%, Dry-Film to 4 microns, any suggestions?
A
This one is fine.
