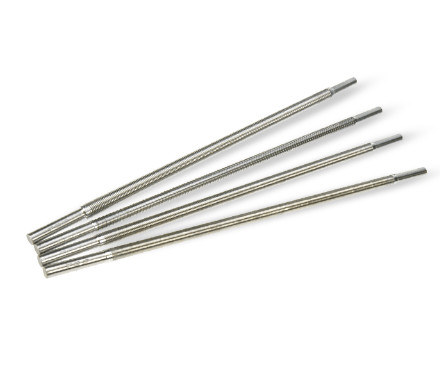

TQC AB3061 Mailer Coating Applicator 38 μm WFT wire-wound
The TQC Mailer Coating Applicator AB3061 is a stainless steel Coating Applicator with a film thickness of 38 μm. The AB3061 Mailer Coating Applicator is suitable for paper, plastic and other substrate preparatory films.
Model：
TQC sheen AB3061 Mayer RodsSPEC
TQC sheen AB3061 Mayer RodsDetails
TQC sheen AB3061 Mayer RodsPacking list
- SKU
- NB009830
- Production process
- Wire-wound
- WFT
- 38μm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60+60mm
- material
- stainless steel
AB3061
Mayer Rods
Introduction
The coating width of the Dutch TQC filament wound Meile coater is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. The TQC Mailer coater is made of stainless steel and has good acid and alkali resistance. Messer coaters can be used in conjunction with automatic coaters.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QCoating contains 25%, and it is expected to make Dry-Film 10 microns. Is this suitable?
A
This model is suitable.
