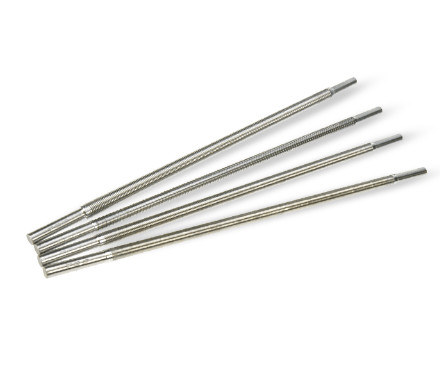

TQC AB3062 Manual Applicator rod 40μm WFT wire-wound
The film thickness of the Dutch TQC Manual Applicator rod AB3062 is 40μm, which is wound stainless steel wire. The AB3062 Manual Applicator rod is suitable for laboratory film proofing.
Model：
TQC sheen AB3062 Mayer RodsSPEC
TQC sheen AB3062 Mayer RodsDetails
TQC sheen AB3062 Mayer RodsPacking list
- SKU
- NB009831
- Production process
- Wire-wound
- WFT
- 40μm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60+60mm
- material
- stainless steel
AB3062
Mayer Rods
Introduction
The coating width of the Dutch TQC filament wound manual coating rod is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. TQC manual coating rod is made of stainless steel, which has good acid and alkali resistance. Manual Film Applicators can be used in conjunction with automatic coaters.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QThe solid content of the paint is 28%. If you want to scrape the ink and dry 11 microns, can this be done?
A
Can be done
