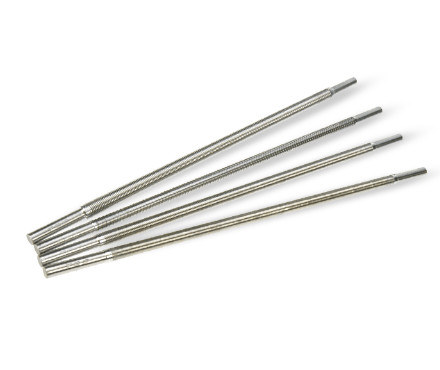

TQC AB3063 hand scraper prepative rod 50μm WFT wire-wound
The wet film thickness of the Dutch TQC hand scraping prepative rod AB3063 Spreader is 50 μm, and it is made of stainless steel. The hand scraping prepative rod AB3063 can be applied to film on substrates such as Cardboard, plastic, and soft materials.
Model：
TQC sheen AB3063 Mayer RodsSPEC
TQC sheen AB3063 Mayer RodsDetails
TQC sheen AB3063 Mayer RodsPacking list
- SKU
- NB009832
- Production process
- Wire-wound
- WFT
- 50μm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60+60mm
- material
- stainless steel
AB3063
Mayer Rods
Introduction
The coating width of the Dutch TQC winding hand-scraped preparation rod is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. TQC hand scraping bar is made of stainless steel, which has good acid and alkali resistance. Hand scraping preparation rods can be used on automatic coating machines.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QSolid content 30%, expected to make Dry-Film 15 microns, this stick number is OK?
A
Sure
