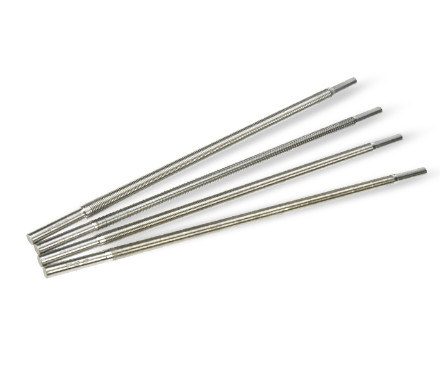

TQC AB3064 scraping rod 56μm WFT application width 320mm
TQC scraping rod AB3064 is a wire-wound stainless steel scraping rod, AB3064 can be prepared with a wet film thickness of 56μm, which is imported from the Netherlands.
Model：
TQC sheen AB3064 Mayer RodsSPEC
TQC sheen AB3064 Mayer RodsDetails
TQC sheen AB3064 Mayer RodsPacking list
- SKU
- NB009833
- Production process
- Wire-wound
- WFT
- 56μm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60+60mm
- material
- stainless steel
AB3064
Mayer Rods
Introduction
The coating width of the Dutch TQC filament scraping wire rod is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. TQC scraping wire rod is made of stainless steel, which has good acid and alkali resistance. The scraper wire rod can be used on the automatic coating machine.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QCan silicone coatings be applied to quartz Glass substrates?
A
Yes, choose quartz Glass as the substrate, with Mayer Rods Coating prepared above coated on the surface of the treated quartz Glass substrate, at room temperature to evaporate the solvent into the oven, at a certain temperature curing film formation.
QSolid content of the sample is 26% and Dry-Film is 15 microns. Do you have any suggestions?
A
This one is fine.
