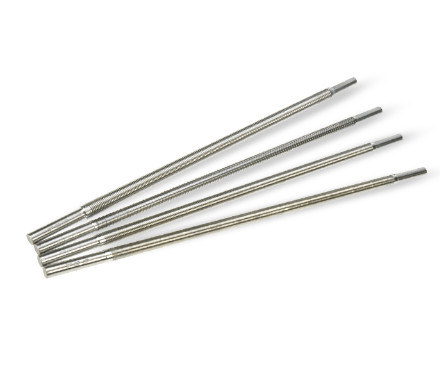

TQC AB3065 wet-film prepative rod 60μm WFT application width 320mm
The Dutch TQC wet-film preparatory rod AB3065 conforms to the ASTM D1084 standard, the material is stainless steel, the AB3065 wet-film preparatory rod can be prepared with a wet film thickness of 60μm and an application width of 320mm.
Model：
TQC sheen AB3065 Mayer RodsSPEC
TQC sheen AB3065 Mayer RodsDetails
TQC sheen AB3065 Mayer RodsPacking list
- SKU
- NB009834
- Production process
- Wire-wound
- WFT
- 60μm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60+60mm
- material
- stainless steel
AB3065
Mayer Rods
Introduction
The coating width of the Dutch TQC filament winding wet film preparation rod is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. The TQC wet film preparation rod is made of stainless steel, which has good acid and alkali resistance. Wet film preparation rods can be used in conjunction with automatic coaters.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QWe use emulsion paint to measure covering power, just built laboratory, any suggestions?
A
Using Mayer-Rod to prepare emulsion paint coating on covering power cardboard is a common practice and can be applied. If you need to get good experimental results, you can buy American RDS Mayer-Rod and Leneta covering power test paper.
QThe solid content is almost 26%. I want to make Dry-Film 16 microns. Is this model suitable?
A
suitable
