TQC AB3067 engraving coating bar 100μm WFT bar length 440mm

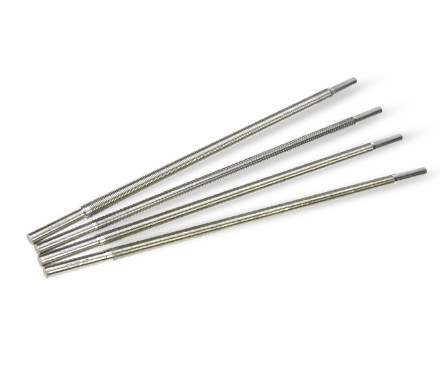

The Dutch TQC engraving coating bar AB3067 is a wire-wound stainless steel coating bar with a film thickness of 100μm and a width of 320mm. The AB3067 engraving coating bar is suitable for laboratory proofing.
Model：
TQC sheen AB3067 Mayer RodsSPEC
TQC sheen AB3067 Mayer RodsDetails
TQC sheen AB3067 Mayer RodsPacking list
- SKU
- NB009836
- Production process
- Wire-wound
- WFT
- 100μm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60+60mm
- material
- stainless steel
AB3067
Mayer Rods
Introduction
The coating width of the Dutch TQC filament wound engraving scraper is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. The TQC engraving scraper is made of stainless steel, which has good acid and alkali resistance. The engraving scraper can be used in conjunction with the automatic coater.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QSolid content of the sample is 35% and Dry-Film is 35 microns. Do you have any suggestions?
A
This one is fine.
