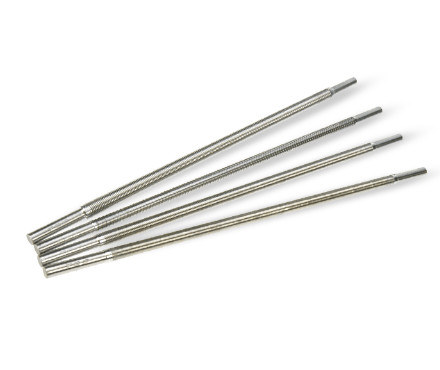

TQC AB3068 imported coating rod 120μm WFT rod length 440mm
The application width of the Dutch TQC imported coating rod AB3068 is 320mm, the thickness of the film is 120μm, and the material of the AB3068 imported coating rod is stainless steel, which is suitable for laboratory film sample preparation.
Model：
Similar products
TQC sheen AB3068 Mayer RodsSPEC
TQC sheen AB3068 Mayer RodsDetails
TQC sheen AB3068 Mayer RodsPacking list
- SKU
- NB009837
- Production process
- Wire-wound
- WFT
- 120μm
- Total length
- 440mm
- Application width
- 320mm
- grip width
- 60+60mm
- material
- stainless steel
AB3068
Mayer Rods
Introduction
The coating width of the Dutch TQC wire-wound imported coating rod is 320mm, and the thickness of the wet film that can be prepared is 4~200μm.
Wire bar applicators, also known as threaded wire bars, are ideal for preparing films on paper or plastic. In addition, it is also suitable for film making on soft substrates. TQC imported coating rod is made of stainless steel, which has good acid and alkali resistance. The imported coating rod can be used for supporting use on the automatic coating machine.
Product parameters
| Model | Wet film thickness | Coating width | Overall length | Straightness | Material | craft |
| AB3050 | 4μm | 320 mm | 440mm | < 50 μm | stainless steel | Winding |
| AB3051 | 6μm | |||||
| AB3052 | 8μm | |||||
| AB3053 | 10μm | |||||
| AB3054 | 12μm | |||||
| AB3055 | 14μm | |||||
| AB3056 | 15μm | |||||
| AB3057 | 20μm | |||||
| AB3058 | 24μm | |||||
| AB3059 | 30μm | |||||
| AB3060 | 34μm | |||||
| AB3061 | 42µm | |||||
| AB3062 | 40μm | |||||
| AB3063 | 50μm | |||||
| AB3064 | 56μm | |||||
| AB3065 | 60μm | |||||
| AB3066 | 76μm | |||||
| AB3067 | 100μm | |||||
| AB3068 | 120μm | |||||
| AB3069 | 200μm |
Optional
|
|
|
FAQ
QSolid content 16%, expected to make Dry-Film 19 microns, this stick number can?
A
Sure
