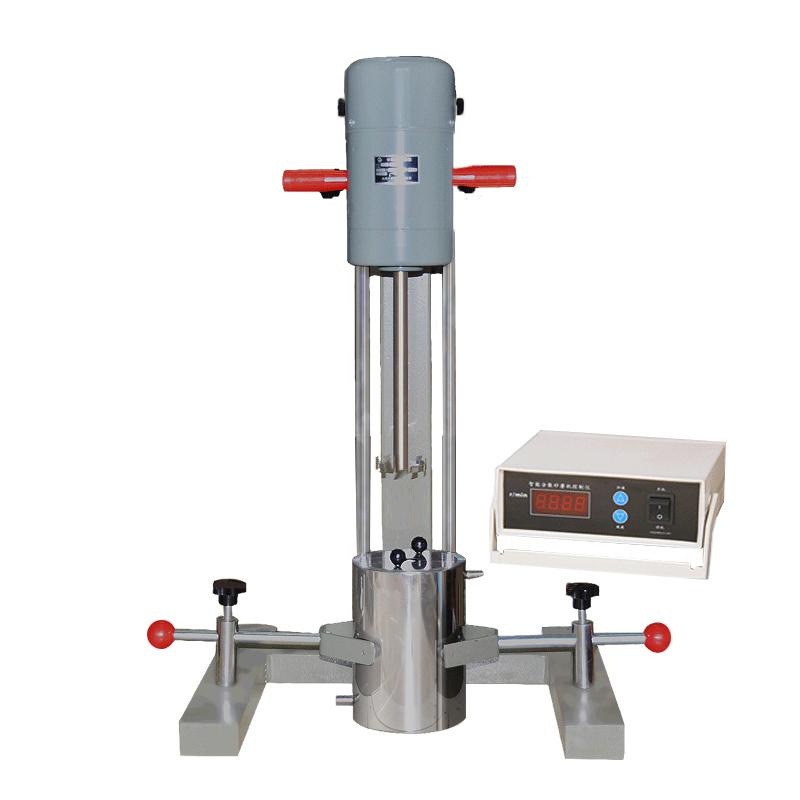

High Speed Disperser Qiwei FS-400D Digital Display High Speed Disperser

FS-400D

Disperser (digital display high speed)

Digital display high-speed; manual lifting; power 400W; with chain; series motor; equipped with φ50/60mm dispersion disc and φ60mm grinding disc; no timing function; 1.5L barrel matching.

Introduction

Qiwei FS-400D/FS-400T dispersing machine (digital display high speed) adopts electronic constant force speed regulation circuit, digital display, high efficiency, red mixing effect, easy cleaning, simple and convenient manual lifting. FS-400D dispersing machine integrates dispersing and stirring functions, and completes the two processes of dispersing and homogenizing with one machine and one container. The motor power of FS-400D/FS-400T dispersing machine is 400W.

Note: FS-400T does not have a chain, and the cylindrical rod can be directly pressed to control the height. FS-400D is a chain, height-adjustable, square column pole.

Applications

Qiwei FS-400D/FS-400T dispersing machine is widely used in the dispersion and mixing of materials in liquids such as factories, scientific research institutions, colleges and medical institutions.

product structure

The main components of the dispersing machine are: 1. Motor; 2. Intelligent controller, stepless speed regulation; 3. Host (dispersing shaft); 4. Cylinder (volume can be customized according to user needs); 5. Lifting bracket; 6. Fixed frame and screw rod.

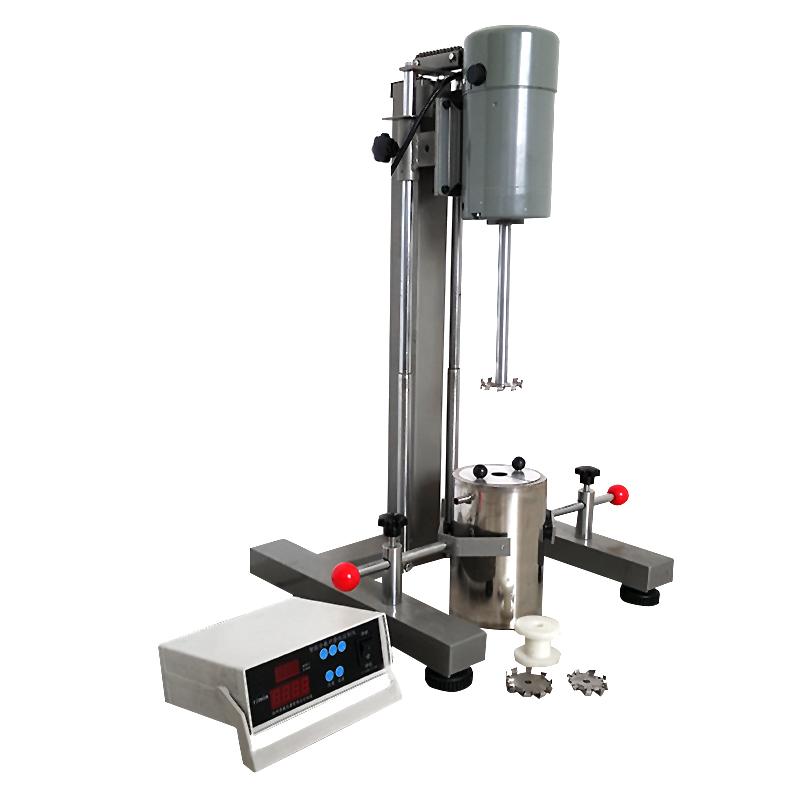

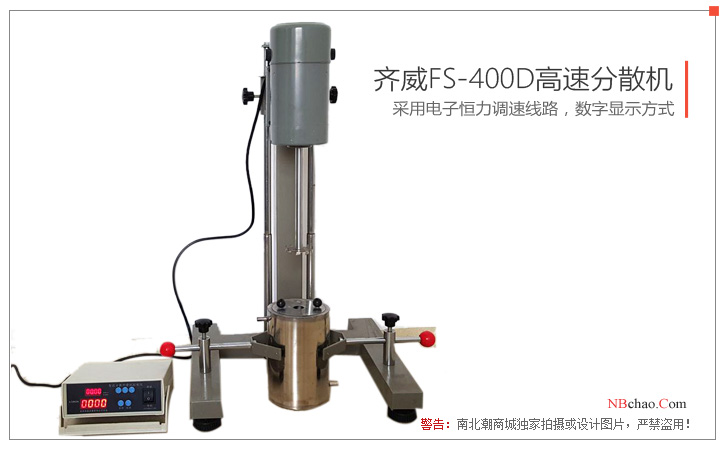

Pictures

Principle

FS-400D dispersing machine adopts electronic constant force speed regulation circuit, the number directly displays the rotational speed of the rotating shaft, and is equipped with a dispersing impeller and a sanding disc. It can adapt to the needs of different experiments in the laboratory, and can directly calculate the relationship between the linear speed of the stirring, dispersing, and sanding discs, the viscosity of the material, and the chemical reaction rate according to the displayed shaft speed, and provide correct process data for large-scale production.

The dispersing head of the FS-400D disperser is driven by the high-speed motor to generate a high rotational speed in the tangential direction. Under the action of huge centrifugal force, the material produces strong hydraulic shearing and high-frequency mechanical effects, so that the fluid material can bear every minute Thousands of shearing and high-frequency mechanical effects achieve efficient mixing, dispersion, and homogeneity.

Packing list：Complete-built unit × 1 set, barrel × 1 piece, barrel cover × 1 pair, dispersion plate × 2 pieces, grinding wheel × 1 piece, governor × 1 piece, clamp holder × 1 pair, carbon brush × 1 pair, fuse × 1 piece, inner hexagon × 1 piece, brush × 1 piece, manual × 1 copy, warranty card and certificate × 1 copy

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
