QIWEI JFS-750 Disperser

Disperser (high-speed frequency conversion)

Introduction

Qi WeiJFS-750The disperser is a new type of environmental protection laboratory disperser, with a motor power of 750W, and a double-axis constant force lifting system, which is convenient for lifting.JFS-750The disperser is a digital direct display of the rotating shaft speed, and is equipped with a dispersion impeller and a sand grinding impeller, which is a satisfactory experimental equipment for laboratory personnel, using a variable frequency motor, which has the advantages of small size, low noise, no reversing interference, and no mechanical wear of carbon brushes.

JFS-750DisperserIt can adapt to the different test needs of the laboratory, and can directly calculate the relationship between the linear velocity of the stirring, dispersing and sanding blades and the viscosity of the material and the chemical reaction rate according to the displayed shaft speed, so as to provide correct data for large-scale production.

Structural function

1. This machine adopts a double-axis constant force lifting system, which is convenient for lifting.

2、JFS-750DisperserThe dispersed impeller and the sanding blisk are directly connected to the shaft with screws.

3. The new type of frequency conversion motor is adopted, and the motor is continuously regulated through the intelligent frequency conversion controller. The application of digital PID technology, high control accuracy, 4-digit digital tube directly display the spindle speed.

4、JFS-750DisperserThe barrel is fixed by the left and right grippers, and the cylinder adopts a jacket structure, which can be processed by cooling water and stainless steel materials.

Installation method:

1. Install the two grippers on the fixed frame respectively, and the clamping rod is facing upwards.

2. Fix the stainless steel barrel in the gripper, and the cylinder cover hole coincides with the motor shaft.

Operating Principle:

1. Plug in the power supply, and the meter will display normally.

2. JFS-750DisperserTurn the potentiometer knob all the way to the left.

3. Press the "RUN" button on the panel and the motor is ready to run.

4. Adjust the potentiometer knob to the desired speed. (You can also press the "▲" or "▼" key until you want the speed.) ）

5. Press the "STOP" button to stop the motor.

Description of the inverter controller buttons

DATA: Press this button to switch between the measured values such as speed, frequency, Voltage, temperature, etc.;

RUN: Run button;

STOP: Stop button;

PRO: Programming and setting buttons;

◀ : When programming, the value is shifted to the left;

▲: Value rise button;

▼: Drop button;

Use with dimensionsprotect

1) When using, fix the selected sanding blisk or dispersion impeller with the rotating shaft.

2) Tighten the locking bolts of the rotary motor, adjust the high-low positions of the shaft and the container, clamp the motor base and the container, put in the material and cover the container cover.

3) Turn on the power, turn on the power switch, wait for the controller initialization to end, the four-digit digital tube will display 0.0, and then adjust the speed to the required speed.

4) When the speed is greater than 4000r/min, it is not advisable to drive an empty car.

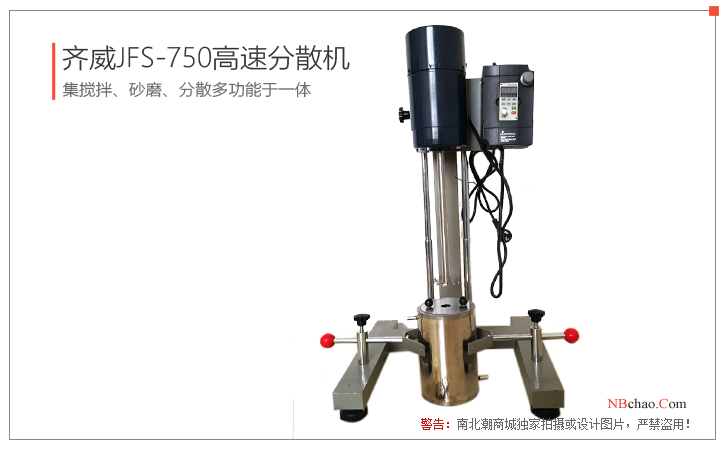

Actual picture of the product

Packing list：Host x1, barrel with lid x1, sand disc x1, dispersion mixing impeller x1, governor x1, clamp x1, certificate x1, manual x1, outer Encasement box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
