Specifications
| display | Four-digit large LCD, positive dual display |
| Maximum measurement | 9800N |
| Minimum measurement | -9800N |
| Load Graduation | 0.01kgf (<100kgf)、0.1kgf (≥100kgf)、0.1N (<1000N)、1N (≥1000N)、0.1Lbf (<1000Lbf)、1Lbf (≥1000Lbf) |
| Sensors structure | Sensors built in |
| Measuring range | ±1000 kgf/±9800N/±2200 Lbf |
| Error of indication | ± 0.5% FS (range) ± 1 digital peak |
| Power | 2 AA batteries, or 6V DC Power |
| Dimensions | 211*80*36mm |
| Weight | 390g |
| Accuracy | Level 0.5 |
| unit | Kgf、N、Lbf |
| A measurable value | Peak, instantaneous value |
| shutdown mode | 10 minutes automatic shutdown or manual shutdown |
| backlight | Blue backlight |
| Allowable load | 150% F.s (buzzer alarm when over 110% F.s) |
| Operating Environment | No source and corrosive medium around |
| Allowable Operating Temperature | 0~40℃ |
| Allowable Relative Humidity | <80% |
Packing list

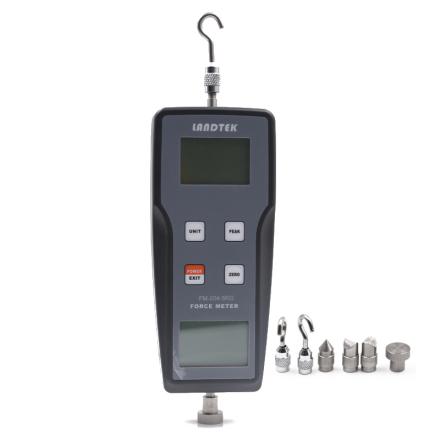

Electronic tension meter, tension hook, flat probe, conical probe, V-groove probe, V-wedge probe, extended connecting rod, CD-ROM, USB data cable, instruction manual, portable case.
After-sales instructions
Warranty days: 730 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/9886/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
